Fanless touch panel PC with an 8.4" 800 x 600 (4:3) resistive type touch screen, Celeron J1900 Quad-Core 2.0GHz CPU, 4GB DDR3L memory, 128GB mSATA SSD, IP64 compliant front panel, dual LAN, built-in 802.11 a/b/g/n/ac wireless module, and -15°C to 55°C extended working temperature. Option for projected capacitive type touch screen and panel/rack mounting kit.
Loading...
7

FPC80070

10.1

FPC80101

FPC80084

  • 8.4" 800 x 600 (4:3) LED LCD monitor
  • Resistive type touch screen with anti-glare
  • Intel Celeron J1900 Quad-Core 2.0GHz CPU
  • 4GB DDR3L memory, max. 8GB
  • 128GB mSATA SSD
  • Built-in 802.11 a/b/g/n/ac wireless module
  • -15°C to 55°C extended working temperature
  • 36W 90~264VAC external power adapter
  • IP64 rated front bezel
Availability: In stock
SKU
FPC80084
Email
8.4" 800 x 600 fanless touch panel PC with Celeron J1900 CPU, 4GB DDR3L memory, mSATA slot, IP64 rated front panel, and -15°C to 55°C extended working temperature
Material
PC + ABS plastic on front panel
LCD Panel
Size: 8.4 inch
Resolution: 800 x 600 (4:3)
Brightness (cd/m²): 450
Contrast Ratio: 600:1
Viewing Angle (H/V): 160° / 140°
Pixel Pitch (mm): 0.213(H) x 0.213(V)
Colors: 16.2M
MTBF (hrs): 50,000
System
CPU: Celeron J1900 Quad Core 2.0GHz CPU
Memory: 4GB DDR3L memory, max. 8GB
Storage: 128GB mSATA SSD
Touch Screen
Resistive type touch screen with anti-glare coating, RS-232 interface (std)
Option for projected capacitive type touch screen, USB interface
Connectors
1 x RS-232 COM port (RJ-45 connector)
1 x RS-232/422/485 COM port (DB-9 connector)
2 x USB 3.0
2 x RJ45 for GbE LAN
1 x Power switch
1 x Audio port (line-out)
1 x Reset button
1 x AT/ATX switch
1 x 9-30V DC lockable power jack
Audio
AMP 2W + 2W internal speakers
Camera & Microphone
2-megapixel with low light function, digital microphone
Wireless
IEEE 802.11 a/b/g/n/ac
Mounting
Option for panel or rack mounting kit
Power Input
36W 90~264VAC external power adapter
Color
Black
Weight
5.38 lb / 2.44 kg

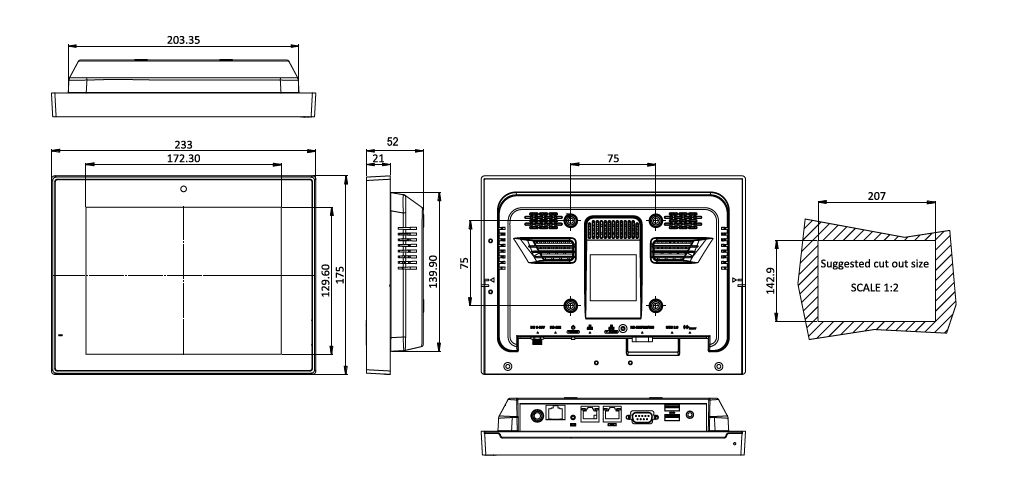

Dimension
9.17"(W) x 6.89"(H) x 1.97"(D)
Environmental
Operating Temperature: -15°C to 55°C
Storage Temperature: -20°C to 65°C
Relative Humidity: 10% to 95%, non-condensing
IP Protection
IP64 compliant front panel
Certification
CE / FCC

FPC80084:
8.4" 800 x 600 fanless panel PC with Celeron J1900 2.0GHz CPU, 4GB DDR3L memory, 128GB mSATA SSD, built-in 802.11 a/b/g/n/ac wireless module, resistive type touch screen, anti-glare coating, 90 to 264VAC external power adapter, and -15°C to 55°C extended working temperature.

Document
Description
Download Link
file iconFPC80084-SP(V2-1).pdf
Spec Sheet
  • FPC80084
    8.4" 800 x 600 (4:3) LED LCD monitor
    Resistive type touch screen with anti-glare
    Option for projected capacitive type touch screen
    Intel Celeron J1900 Quad-Core 2.0GHz CPU
    4GB DDR3L memory, max. 8GB
    128GB mSATA SSD
    Built-in 802.11 a/b/g/n/ac wireless module
    -15°C to 55°C extended working temperature
    36W 90~264VAC external power adapter
    IP64 rated front bezel
