7" Fanless Touch Panel PC for Smart Home Solutions

Specification

Material: PC + ABS plastic on front panel

LCD Panel: Size: 7 inch
Resolution: 1024 x 600 (16:9)
Brightness (cd/m²): 500
Contrast Ratio: 700:1
Viewing Angle (H/V): 150° / 145°
Pixel Pitch (mm): 0.0635(H) x 0.1905(V)
Colors: 16.2M
MTBF (hrs): 20,000

System: CPU: Celeron N2807 Dual Core 1.58GHz CPU
Memory: 2GB DDR3L memory, max. 4GB
Storage: 128GB mSATA SSD

Touch Screen: Projected capacitive type touch screen with anti-glare coating, USB interface

Connectors: 2 x RS-232 COM port (DB-9 connector)
2 x USB 3.0
2 x GbE LAN
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x 9-30V lockable power jack

Audio: AMP 2W internal speaker, left channel output

Wireless: IEEE 802.11a/b/g/n/ac, Bluetooth V4.0

Mounting: Option for panel or rack mounting kit

Power Input: 36W 90~264VAC external power adapter

Color: Black

Weight: 3.99 lb / 1.81 kg

Dimension: 7.52"(W) x 5.0"(H) x 1.69"(D)

Environmental: Operating Temperature: -20°C to 50°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 10% to 95%, non-condensing

IP Protection: IP65 compliant front panel

Certification: CE / FCC

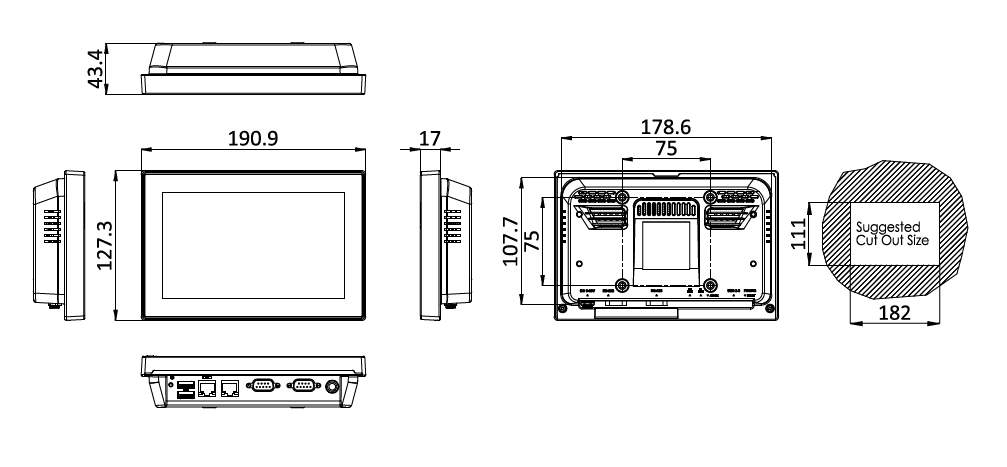

Dimensions

Order Info

FPC80070:
7" 1024 x 600 fanless panel PC with Celeron N2807 1.58GHz CPU, 2GB DDR3L memory, 128GB mSATA SSD, built-in 802.11 a/b/g/n/ac wireless module, projected capacitive type touch screen, anti-glare coating, 90 to 264VAC external power adapter, and -20°C to 50°C extended working temperature.

Downloads

Document

Description

Download Link

FPC80070-SP(V2-1).pdf

Spec Sheet

Configure Now

FPC80070

7" 1024 x 600 (16:9) LED LCD monitor
Projected capacitive type touch screen with anti-glare
Intel Celeron N2807 Dual-Core 1.58GHz CPU
2GB DDR3L memory, max. 4GB
128GB mSATA SSD
Built-in 802.11a/b/g/n/ac wireless module
-20°C to 50°C extended working temperature
36W 90~264VAC external power adapter
IP65 rated front bezel
