Embedded fanless computer equipped with 12 inch touch screen monitor and Atom N270 low power consumption processor, with a splash-resistant IP65 rated ABS plastic front bezel and compact chassis which excellent for automation control applications.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

RPS1170

FPC6120

FPC5120

12.1 inch 800 x 600 LCD panel
Integrated resistive-type touch screen
Atom 1.6GHz N270 processor
945GSE/ICH7M chip set
2 x serial ports & 2 x USB ports
Plastic front bezel IP-65 rated
Panel/wall / VESA mount ready
10~30VDC power input

Availability: In stock

SKU

FPC5120

Fanless Panel PC - 12.1 inch 800 x 600 touch screen monitor, Atom N270 1.6GHz fan less embedded computer & IP65 rated plastic front bezel. Beige color.

Specification

Front Bezel: IP65, NEMA 4 rugged protection, plastic front bezel

LCD Panel: 12" 800x600 SVGA LCD
Display type: color
Brightness: 370cd/m2
Contrast ratio: 300:1 (typ)
Viewing angle: -60~60° (H), -50~50° (V)
Max colors: 16M
Input Frequency: 800x600@60Hz

Main System: CPU: Intel Atom N270 1.6GHz processor
BIOS: Award 4Mbit with RPL / PEX LAN boot ROM
smart view and customer CMOS backup.
System chipset: 82945GSE + ICH7M
Memory slot: 1 x 200-pin DDR2 SO-DIMM, up to 2GB
Graphic chipset:
Intel 945GSE integrated (max. 224MB shared)
Support dual display, mirroring/multiple mode
Audio: On-baord Audio
Ethernet: RTL 81111b Gigabit Lan
Watchdog timer: 255 levels, 1-255 sec
Storage: 1 x Compact-Flash socket
2 x USB ports
2 x serial ports

Connectors: 1 x RS-232 (COM 2)
1 X RS-232/422/485 (COM 1)
1 x RJ-45 for Ethernet
1 x VGA D-sub 15-pins
2 x USB 2.0 ports
1 x Audio
1 x 3-pins power connector

Touch screen: Type: 5-wire, analog resistive type

Expansion Slot: 1 x Mini card

Cooling System: fanless cooling system
Aluminum cooling heat sink

Power supply: 10-30VDC 72W power input over-current protection
Optional for 110/220VAC external power adapter

Mounting: panel/wall/VESA (option for DESK VESA mounting kits)
75/100mm VESA mounting holes

Color: Black

Environmental: Operating temperature: 0° ~45° C (32° ~ 113° F)
Relative humidity: 10% ~ 90% @ 40° C, non-condensing
Operation vibration: 2G 5~500Hz, random for Compact flash

Weight: 5lbs

Dimension: 12.9" (327.5mm) x 2.03" (51.5mm) x 10.3" (262mm)

Certifications: CE, FCC, RoHs

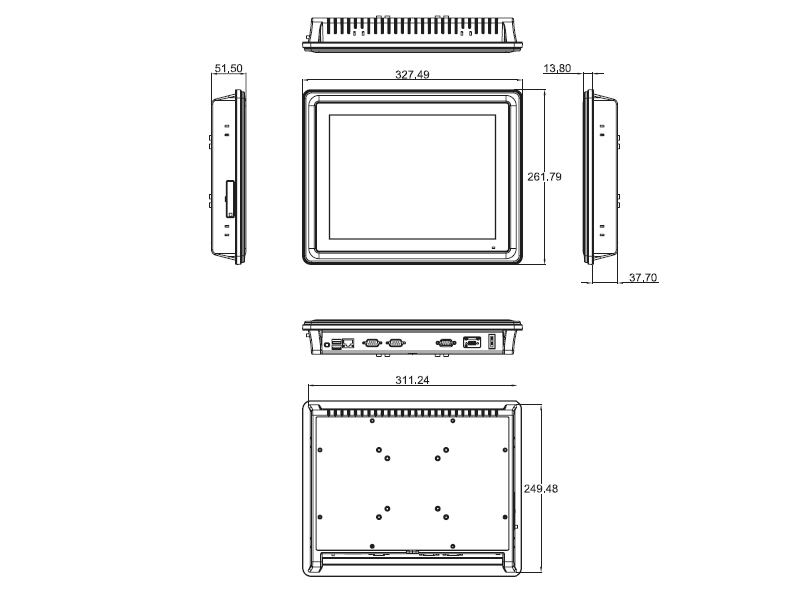

Dimensions

Order Info

FPC5120
HMI Panel PC 12.1 inch 800 x 600 touch screen monitor Atom N270 1.6GHz fanless embedded PC and NEMA4 / IP-65 rated front plastic bezel.

NOTICE! : PRODUCT EOL. PLEASE VISIT PANEL PCS FOR RELATED PRODUCTS.

Downloads

Document

Description

Download Link

FPC_5120-data.pdf

Data Sheet

FPC_5120-dim.pdf

Dimension

FPC_5120-inst.pdf

Installation Guide

FPC_5120-um.pdf

User Manual

Configure Now

LCD panel and touch screen
The 12.1 inch 800 x 600 LCD panel is an active type digital to digital which connects to the on board video. The touch screen glass is mounted on the front of the panel and uses a 5-wire connection to the on board COM / USB port. The touch screen monitor protection for the LCD panel and a plastic front bezel is sealed around the front panel housing to prevent water and dust from entering.

On board system board
The embedded fan less system board comes with the features of a standard mother board and the additional function for industrial applications. It accepts an Atom N270 1.6GHz low power consumption processor, DDR2 memory socket (up to 2GB), 2 x serial / USB ports and on board dual Ethernet LAN / Video / Audio. The small size of the board allows it to be mounted into the compact-sized housing. The working temperature range is from 0° C to 50° C.

Expansion slots
We provided 6 x exposed USB version 2.0 and 6 x serial ports for additional expansion.

Storage devices
The system comes with 1 x Compact flash socket and 1 x 2.5 inch SATA hard drive. The internal 2.5 inch hard drive was mounted on the side of the embedded board. Option for compact flash storage device.

Power supply
The open frame 12VDC input power supply with 3-pin connector is integrated into the housing, A external 110/220VAC power adapter for AC power source (option).

Mounting
HMI computer can be wall, panel, or VESA mounted (75 / 100mm mounting holes). Option for DESK mounting kits.
