HMI Panel PC comes with 15 inch 1024 x 768 touch screen monitor, Atom D2550 fan less industrial computer, 2GB DDR3 memory, 160GB SATA HD, IP65 rated aluminum stainless front bezel & 12VDC power input with external AC power adapter.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

FPC1012

RMW7170

FPC1015

15 inch 1024 x 768 industrial Panel PC
Resistive type touch screen monitor
IP65 rated heavy-duty steel front bezel
Atom D2550 1.86GHz Dual-Core fanless embedded computer
2GB 1033/1066 DDR3 memory & 2.5” HDD storage device
1 x PCI expansion slot
100x100 VESA mount & wall mount read
12VDC power input with external AC power adapter

Availability: In stock

SKU

FPC1015

Fanless Panel PC, 15 inch 1024 x 768 touch screen monitor, Atom D2550 fan less embedded computer, 2GB memory, 160GB HD, IP65 rated aluminum front bezel, 12VDC power input with external power adapter & VESA or panel mount ready.

Specification

Construction: Aluminum & SGCC

LCD panel: Size: 15” LCD
Max. Resolution: 1024 x 768
Luminance: 400
Dot Pitch: 297um x 297um
Viewing Angle (H/V): 160'(H) / 160'(V)
Backlight MTBF: 50000 hrs
Colors: 16.7M

Main system: System Mainboard: IB806
CPU: Atom D2550 1M Cache, 1.86GHz dual core processor
RAM: 1033/1066 DDR3, up to 4GB
Drive bays: 1 x 2.5" HDD bay

Connectors: COM1 RS-232/422/485
2 x Gigabit RJ-45 LAN
1 x 10/100 RJ-45 LAN
4 x USB 2.0 (USB Host. 1-Type)
1 x 12V DC-in
1 x VGA
1 x Speaker-out microjack
1 x Mic-in microjack
2 x SMA connector

Expansion: 1 x PCI expansion slot

Touch screen: Resistive type touch screen monitor

Power supply: +12V DC-in 84W power adapter

IP rating: Front Panel IP65

Mounting: VESA 100mm x 100mm

Color: Sliver

Dimension: 390mm(W) x 65.5mm(D) x 315mm(H)

Environmental: Operating Temperature: 0 to 45 degree C
Storage Temperature: -10 to 60 degrees C

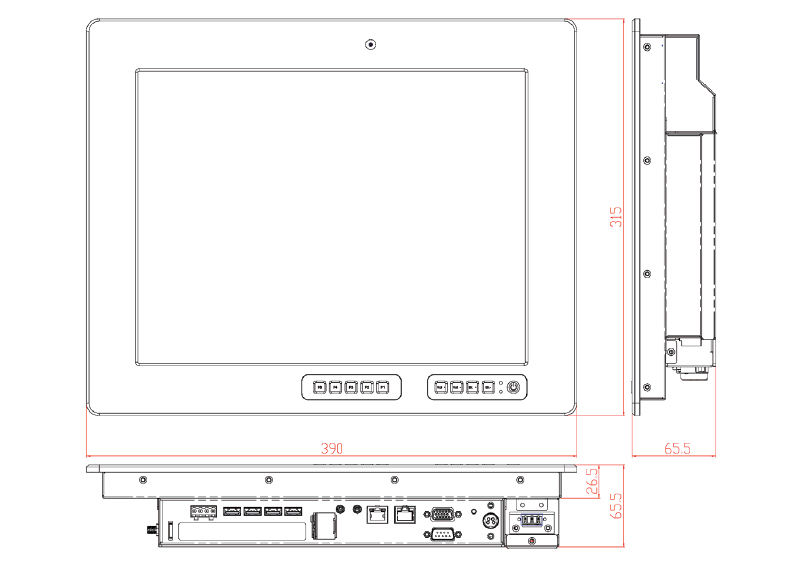

Dimensions

Order Info

FPC1015:
15" 1024 x 768 fanless panel PC comes with Atom D2550 1.86GHz dual-core processor, 2GB memory, 160GB HDD, Resistive type touch screen, 3 x COM + 4 x USB + 1 x VGA, Silver color

NOTICE! : PRODUCT EOL. PLEASE VISIT PANEL PCS FOR RELATED PRODUCTS.

Downloads

Document

Description

Download Link

FPC1015-DATA.pdf

Data Sheet

FPC1015-DIM.pdf

Dimension

FPC1015-UM.pdf

User Manual

Configure Now

LCD and Touch Screen
The fan less Panel PC comes with 15 inch 1024x 768 industrial touch screen monitor. The resistive-type touch screen monitor is mounted on the front of the LCD panel, the internal connected with USB interface flat cable to internal Atom fanless embedded computer. The resisitive type touch screen panel provides additional protection for the LCD panel itself. A rugged IP65 rated aluminum front bezel and fan less industrail embedded computer module designed for harsh working environment.

On Board System Board:
The embedded fanless system board comes with Atom D2550 1.86GHz Dual-Core processor, 1x DDR3 memory sokcet (up to 4GB), Dual LAN ports & 4 x USB ports. The working temperature range is from 0 °C to 45 °C.

Storage Devices:
The system comes with 1 x 2.5" HDD drive bay up to 160GB, The internal 2.5" SATA HD was mounted on the side of the embedded board.

Power Supply:
The Panel PC with 12VDC power input with 84W power adapter.

Mounting:
Panel PC comes with VESA mount 100mm x 100mm.
