NOTICE! : PRODUCT EOL. PLEASE VISIT PANEL PCS FOR RELATED PRODUCTS.

Rugged Panel PC with IP65 compliant aluminum front bezel and 12 inch 1024 x 768 touch screen monitor, powered by Atom D2550 fan less embedded computer and modular designed for easy upgrade and maintenance for automation control application.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PCH3982

FPC1015

FPC1012

12 inch 1024 x 768 industrial Panel PC
Resistive type touch screen monitor
IP65 rated heavy-duty steel front bezel
Atom D2550 1.86GHz Dual-Core fanless embedded computer
2GB 1033/1066 DDR3 memory & 2.5” HDD storage device
1 x PCI expansion slot
100x100 VESA mount & wall mount read
12VDC power input with external AC power adapter

Availability: In stock

SKU

FPC1012

Fan less Panel PC, 12 inch 1024 x 768 touch screen monitor, Atom D2550 fan less embedded computer, 2GB memory, 160GB HD, IP65 rated aluminum front bezel, 12VDC power input with external power adapter & VESA or panel mount ready.

Specification

Construction: Aluminum & SGCC
IP65 rated front bezel

LCD Panel: Size: 12inch LCD
Max. Resolution: 1024 x 768
Luminance: 500
Dot Pitch: 240um x 240um
Viewing Angle (H/V): 160'(H) / 160'(V)
MTBF: 50000 hrs
Colors: 16.7M

Main System: System Mainboard: IB806
CPU: Atom D2550 1M Cache, 1.86GHz dual core processor
RAM: 1033/1066 DDR3, up to 4GB
Drive bays: 1 x 2.5" HDD bay

Connectors: COM1 RS-232/422/485
2 x Gigabit RJ-45 LAN
1 x 10/100 RJ-45 LAN
4 x USB 2.0 (USB Host. 1-Type)
1 x 12V DC-in
1 x VGA
1 x Speaker-out microjack
1 x Mic-in microjack
2 x SMA connector

Expansion: 1 x PCI expansion slot

Touch screen: Resistive type touch screen monitor

Power supply: +12V DC-in 84W power adapter

IP Rating: Front Panel IP65

Mounting: VESA 100mm x 100mm

Color: Sliver

Dimension: 320mm(W) x 60.5mm(D) x 270mm(H)

Environmental: Operating Temperature: 0 to 45 degree C
Storage Temperature: -10 to 60 degrees C

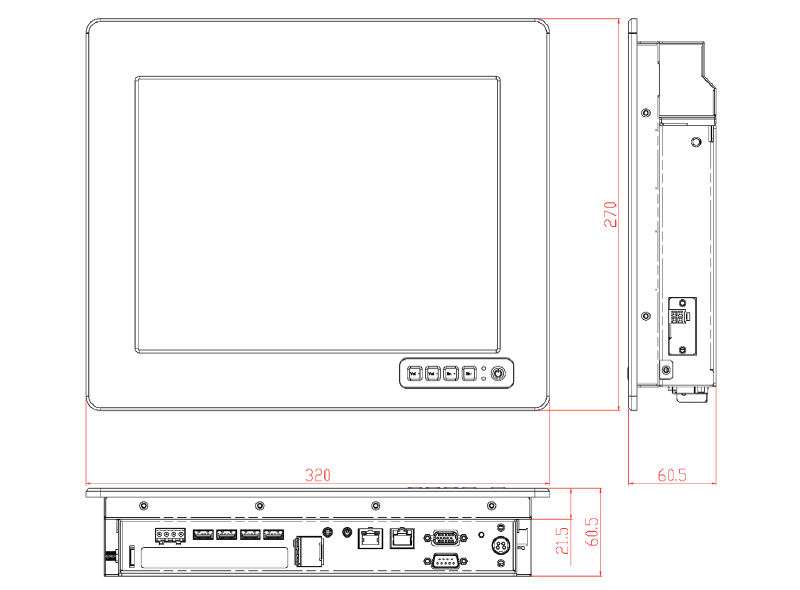

Dimensions

Order Info

FPC1012:
12 inch 1024 x 768 fanless Panel PC with Atom D2550 1.86GHz dual-core processor, 2GB memory, 160GB HDD, Resistive type touch screen, 3 x GbE LAN + 4 x USB + 1 x VGA, Silver color.

NOTICE! : PRODUCT EOL. PLEASE VISIT PANEL PCS FOR RELATED PRODUCTS.

Downloads

Document

Description

Download Link

FPC1012-DATA.pdf

Data Sheet

FPC1012-DIM.pdf

Dimension

FPC1012-UM.pdf

User Manual

Configure Now

LCD and touch screen
The fan less Panel PC comes with 12 inch 1024x 768 industrial LCD panel and touch screen monitor. The touch screen glass is mounted on the front of the LCD panel and the internal connected with USB interface flat cable to internal embedded computer vinterface board. The resisitive type touch screen panel provides additional protection for the LCD panel itself. A rugged IP65 rated aluminum front bezel and fan less industrail embedded computer module designed for harsh working environment.

On Board System board
The embedded fanless system board comes with Atom D2550 1.86GHz Dual-Core processor, 1x DDR3 memory socket (up to 4GB), Dual LAN ports & 4 x USB ports. The computer working temperature range is from 0 °C to 45 °C.

Storage devices
The system comes with 1 x 2.5" hard drive bay up to 160GB, The internal 2.5" hard drive was mounted on the side of the embedded board.

Power supply
The Panel PC with 12VDC power input with 84W power adapter.

Mounting
Panel PC comes with VESA mount 100mm x 100mm.

References
What is IP rating?
IP rating refers to the degree of protection against water and dust provided by a computer's enclosure.

What is mounting solution?
Mounting solution is a collection of different kinds of mounting methods that can help you to know how to mount your product correctly and rapidly.
