Fan less embedded system comes with Core 2 Duo processor, 2 x LAN, 2 PCI & 4 PCI-E expansion slot and 4 x COM/ 2 x USB ports. The rugged aluminum extrusion with heavy-duty cold rolled steel designed for wide range operation temperature working environment.
Loading...
Fanless Embedded Box FES8914 Front View

FES8914

Fanless Embedded Box FES6831 Front View

FES6831

FES8916

  • Aluminum alloy rugged micro box
  • Fanless embedded system
  • Core 2 Duo/ Celeron M CPU
  • 120GB SATA HD
  • 2 PCI / 3 PCI-Ex1 / 1 PCI-Ex16 slots
  • Optional for 4-port USB cable
  • Optional for DVI card
  • 10 to 30VDC ATX power input
$985.00
Availability: In stock
SKU
FES8916
Email
Fan less embedded box with Core 2 Duo CPU, 1GB DDR3 memory, 120GB HD and 2 x PCI / 4 x PCI Express (3 by 1 and 1 by 16) expansion slots, has aluminum alloy chassis and 0 to 45 degree C working temperature.
Construction
Aluminum extrusion heavy-duty cold-rolled steel
Embedded System
CPU Type: Socket P for Intel Core 2 Duo/Celeron M processor up to 2.33 GHz
Memory: 2 x 204 pin DDR3 800/1066 MHz SODIMM socket, up to 8GB
Chipset: Intel GM45+ICH9M
Ethernet: 2 x RJ-45, 10/100/1000Mbps
Hard Disk Drive:
1 x 2.5" SATA drive bay
1 x onboard CompactFlash Socket
I/O Port
Serial port: 4 x COM
(COM1: RS232/422/485;COM2/3/4:RS232)
USB: 2 x USB2.0
LAN: 2 x LAN (10/100/1000Mbps)
VGA: 1 x VGA
I/O Layouts
4 x COM
2 x USB2.0
2 x 10/100/1000Mbps Ethernet
1 x VGA
1 x ATX Power switch
1 x Power connector (AC-in or Phoenix plug)
System LED Indicator
1 x Power on/off LED
1 x HDD LED
Expansion Slot
Standard-2 x PCI & 3 x PCI-Ex1 & 1 x PCI-Ex16]
Power Supply
DC ATX 150W
Input: 10~30VDC
Output: +5V @ 11A, +3.3V @ 5A, +12V @9A, -12V @ -150mA, 5Vsb @2A
Optional:
AC-DC power adapter:
Input: 90~264VAC
Output: 19V @ 7.89A
System Support
Windows 7 / XP / XPE
Mounting
Wall mount

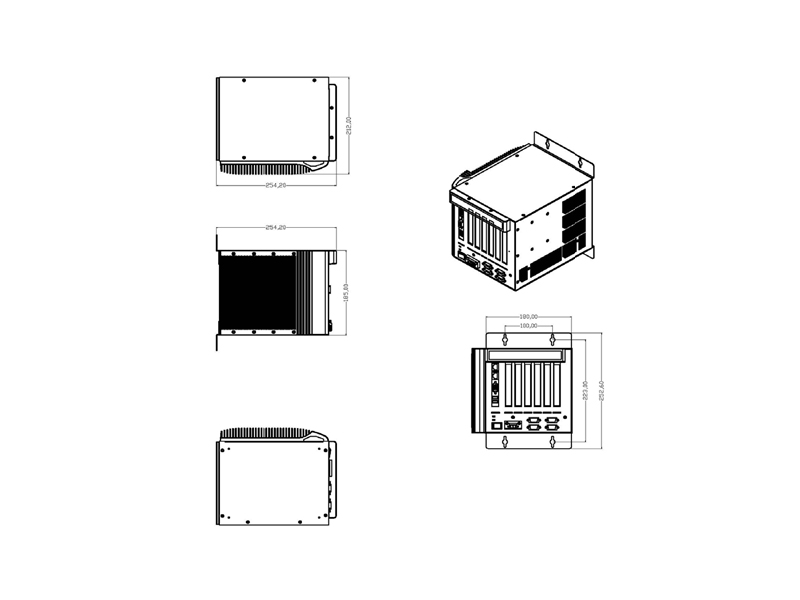

Dimension
8.4"(W) x 7.3 "(H) x 9.8 "(D)
Weight
12.52lb
Environmental
Operating Temperature:0°C ~ 45 °C
Storage Temperature: -20°C to 80 °C
Humidity: 10~90%, non-condensing
EMC: CE

FES 8916:
Fan less Celeron M 2.0GHz embedded system 1GB DDR3 memory, 120GB HD & 2 PCI / 4 PCI-E (3x1/1x16) expansion slots.
Price:$ 985.00


Document
Description
Download Link
file iconFES_8916-data.pdf
Data Sheet
  • FES8916
    Fan less embedded box
    Core 2 Duo system
    1GB DDR3 memory & 120GB HD
    2 x PCI / 4 x PCI-E (3x1/1x16) slots
    Aluminum alloy chassis (8.4"x 7.3" x 9.8")
    0 to 45 degree C working Temp
    Starting at:
    $985.00
FES8916
$985.00

Construction :
  Aluminum extrusional chassis is made of a heavy-duty cold-rolled steel. The small form factor embedded system box is designed for industrial applications like POS, transportation, control, surveillance and more. It provides high reliability and noiseless performance in harsh environments.

Onboard System :
  The embedded system is powered by an Intel Core 2 Duo / Celeron M processor. It comes with the features of the standard motherboard and the additional function for industrial application. It accepts 2 x 204-pin DDR3 SODIMM memory (up to 8 GB), 4 x COM ports, 2 x USB ports, 2 x on board LAN (10/100/1000Mbps) and VGA.

Storage Device :
The system comes with a standard 2.5" SATA HDD and onboard CompactFlash socket for the feature the Windows XP pro/XPE embedded application.

Expansion Slots :
We provide standard 2 x PCI & 3 x PCI-Ex1 & 1 x PCI-Ex16for the expansion.

Power Supply :
It comes with 10 to 30VDC ATX 150W power supply.

Mounting :
Fanless embeddd system can be wall mount.

References
What is an embedded computer?
An embedded system is a computer system that includes a specific function within a larger computerized system.
