Industrial computer integrated i7 / i5 / i3 multiple core CPU into a compact and rugged enclosure with an 0°C ~ 55°C extended working temperature. It has VGA input and 10~30V DC power input. It mounted securely with an integrated mounting bracket for automation control applications.
Loading...
FES2215 Front View

FES2215

FES8914

  • Aluminum rugged microbox
  • Fanless embedded system
  • 2nd generation Core i7 / i5 / i3 CPU
  • Extended working temperature range from 0°C to 55°C
  • VGA display port, dual LAN and 4 COM port
  • 1 PCI-E x1, 1 PCI-E x4 slot, and 2 PCI slots
  • 10~30V DC power input
$1,186.00
Availability: In stock
SKU
FES8914
Email
Fanless embedded computer with Core i multiple-core CPU, VGA port, 4 x COM ports, 2 x PCI / 1 x PCI-Ex1 / 1 x PCI-Ex16 expansion slots, and DC power input.
Construction
Aluminum extrusion heavy-duty cold-rolled steel
Embedded System
CPU Type:
4-core 8 thread i7 2.1GHz 6MB Cache processor
2-core 4 thread i5 2.5GHz 3MB Cache processor
2-core 4 thread i3 2.2GHz 3MB Cache processor
Memory: 2 x 204-pin DDR3 800/1066 SODIMM, up to 8GB
Chipset: HM65
Ethernet: 2 x RJ-45, 10/100/1000Mbps
Hard Disk Drive:
1 x 2.5" SATA drivebay
1 x onboard CompactFlash Socket
I/O Port
Serial port: 4 x COM
(Com1: RS232/422/485;COM2/3/4:RS232)
USB: 6 x USB2.0
LAN: 2 x LAN (10/100/1000Mbps)
VGA: 1 x VGA
I/O Layouts
4 x COM
6 x USB2.0
2 x 10/100/1000Mbps Ethernet
1 x VGA port
1 x ATX Power switch
1 x Remote power switch
1 x Power connector (AC-in or Phoenix plug)
System LED Indicator
1 x Power on/off LED
1 x HDD LED
Expansion Slot
2 x PCI & 1 x PCI-Ex1 & 1 x PCI-Ex16
Power Supply
DC ATX 150W
Input: 10~30VDC
Output: +5V @ 11A, +3.3V @ 5A, +12V @9A, -12V @ -150mA, 5Vsb @2A
Ac-DC power adapter:
Input: 90~264VAC
Output: 19V @ 7.89A
System Support
Windows 7/ XP/ XPE
Mounting
Wall mount

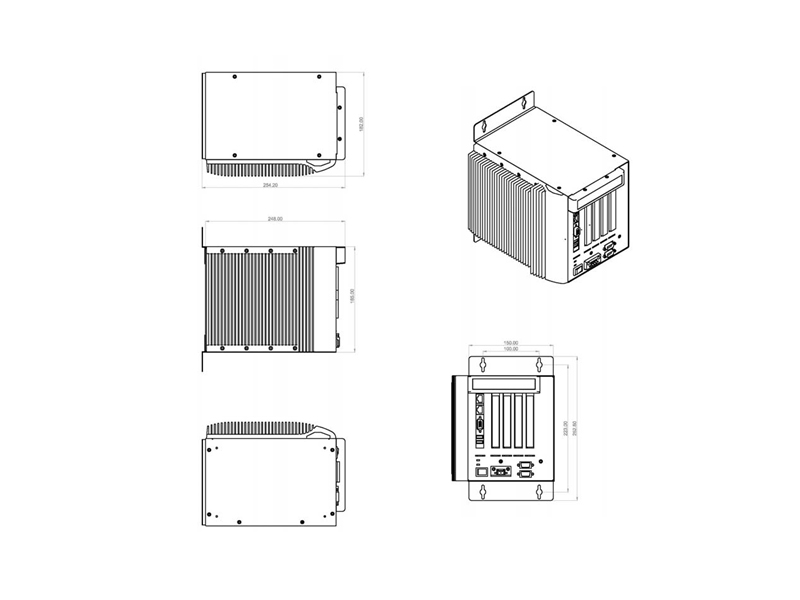

Dimension
7.2"(W) x 7.3 "(H) x 9.8 "(D)
Weight
11.02lb
Environmental
Operating Temperature:0°C to 55 °C
Storage Temperature: -20°C to 80 °C
Humidity: 10~90%, non-condensing
EMC: CE

FES8914:
Fanless Core i7 / i5 / i3 embedded system 1GB DDR3 memory, 120GB HD, 2 PCI expansion slots, 1 PCI-E x1 slot & 1 PCI-E x4 slot, silver color.
Price:$ 1,186.00



Document
Description
Download Link
file iconFES8914-SP.pdf
Spec Sheet
  • FES8914
    Fanless embedded computer
    Core i3-2330E 2.2GHz CPU
    Option for Core i5-2510QE 2.6GHz and Core i7-2710QE 2.1GHz CPU
    2GB SODIM memory up to 8GB
    250GB hard drive bay
    VGA video out ports
    4 COM ports
    2 PCI express (by 1 and by 16) and 2 PCI 32 bit expansion slots
    Integrated mounting bracket
    Steel case with aluminum heat sink
    10 to 30VDC power input with AC power adapter
    0 to 55 degree C working Temp
    Starting at:
    $1,186.00
FES8914
$1,186.00

PRODUCT DESCRIPTION
Embedded system features Core i7 CPU performance, strong thermal design, 4 open slot rich expansion capabilities, and small footprint advantages. This rugged embedded controller delivers enhanced processor performance, improved graphics performance, superior connectivity, and rich expansion capabilities, Powered by CPU type: 4-core 8 thread i7 2.1GHz 6MB Cache processor/ 2-core 4 thread i5 2.5GHz 3MB Cache processor/ 2-core 4 thread i3 2.2GHz 3MB Cache Processor, the embedded system holds excellent computing capacities. The chipset is HM65 and the memory consists of two 204-pin DDR3 800/1066 SODIMM and goes up to 8GB of storage. The embedded system is powered by a Core i7/ i5/ i3 CPU. It comes with the features of a standard motherboard and the additional function for industrial applications. It accepts 2 x 204-pin DDR3 SODIMM memory (up to 8 GB), 4 x COM ports, 6 x USB ports, 2 x onboard LAN (10/100/1000Mbps) and VGA. The power supply contains a 10 ~ 30VDC ATX 150W power supply. It includes options for a 110/220VAC power adapter. The system offers a standard 2.5 inch SATA hard drive and onboard Compact Flash socket for the feature of the Windows 7 pro / 7 embedded application. The FES8914 features aluminum finished chassis constructed by heavy-duty cold-rolled steel by the IP30 standard for heavy protection. The small design is great for space-limited environments. This embedded system holds an industrial-grade fanless chassis allowing this design to protect against harmful elements such as dirt and debris in damaging environments. The microbox features a thermal design allowing it to operate at wide-ranging temperatures from 0°C to 55°C. We provide standard two PCI slots, one PCI-Ex1 slot, and one PCI-E4 slot for the expansion slots. Measuring at 7.2"(W) x 7.3 "(H) x 9.8 "(D), the FES8914 is small enough for easy storage in uneasy spaces. The FES8914 is fully compatible with 32/64 bit versions of Windows 7 / 8 and Linux.

REFERENCE
Embedded Computer and its Significance in Technology
Embedded computers and their significance in technology include a specific function within a larger computerized system. All of the parts come together to form an enclosure that is designed specifically for industrial applications like POS, transportation, or control to provide higher reliability.
