Industrial computer integrated Core i7 / i5 / i3 mobile CPU in a compact and rugged enclosure with 1 x PCIex4 and PCI expansion slots.
FES7471

FES7471

FES8912

  • Aluminum rugged microbox
  • Fanless embedded system
  • 2nd generation Intel Core i7 / i5 / i3 CPU
  • VGA & Display Port video port
  • Dual LAN, 4 x COM, 6 x USB 2.0 ports
  • 1 x PCI Express by 4 slot & 1 x PCI slot
  • 10~30V DC power input
  • Extended working temperature range from 0°C to 45°C
Availability: In stock
SKU
FES8912
Fanless embedded computer with Core i7 / i5 / i3 mobile CPU, VGA port, 4 COM port, DC power input and 1 x PCIex4 and 1 x PCI expansion slot, has rugged aluminum chassis and extended 0 to 45 degree C working temperature.
Construction
Aluminum extrusion heavy-duty cold-rolled steel
Embedded system
CPU Type:
4-core 8 thread i7 2.1GHz 6MB Cache processor/
2-core 4 thread i5 2.5GHz 3MB Cache processor/
2-core 4 thread i3 2.2GHz 3MB Cache processor
Memory: 2 x 204-pin DDR3 1066/1333 SODIMM, up to 8GB
Chipset: HM65
Ethernet: 2 x RJ-45, 10/100/1000Mbps
Hard Disk Drive:
1 x 2.5" SATA drivebay
1 x onboard CompactFlash Socket
I/O port
Serial port: 4 x COM
(Com1: RS232/422/485;COM2/3/4:RS232)
USB: 6 x USB2.0
LAN: 2 x LAN (10/100/1000Mbps)
VGA: 1 x VGA
I/O layouts
4 x COM
6 x USB2.0
2 x 10/100/1000Mbps Ethernet
1 x VGA port
1 x ATX Power switch
1 x Remote power switch
1 x Power connector (AC in or Phoenix plug)
System LED indicator
1 x Power on/off LED
1 x HDD LED
Expansion slot
1 x PCI slot, 1 x PCI Express by 4
Power supply
DC ATX 150W
Input: 10~30VDC
Output: +5V @ 11A, +3.3V @ 5A, +12V @9A, -12V @ -150mA, 5Vsb @2A
Ac-DC power adapter:
Input: 90~264VAC
Output: 19V @ 7.89A
System support
Windows 7 / XP / XP Embedded
Mounting
Wall mount

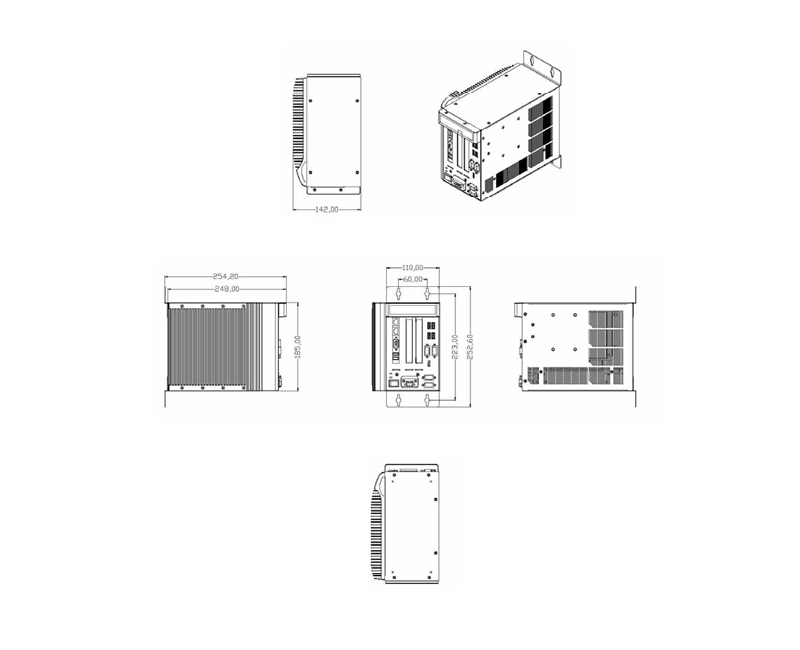

Dimension
5.6"(W) x 7.3 "(H) x 9.8 "(D)
Weight
9.28lb
Environmental
Temperature
Operation:0°C ~ 45 °C(with W.T. HDD)
Storage: -20°C to 80 °C(with W.T. HDD)
Humidity: 10~90%, non-condensing
EMC: CE

FES 8912:
Fan less Core i7 / i5 / i3 embedded system, DDR3 memory, SATA hard drive, 1 PCI slot and 1 PCI Express by 4 expansion slot.

Price:$1,086.00

Document
Description
Download Link
file iconFES8912-SP.pdf
Spec Sheet
