Fan less embedded system comes with Celeron M ULV 1.0GHz processor, 120GB HD, 1 x LAN, Audio, 1 PCMCIA expansion slot and 6 x COM/ 2 x USB ports. The rugged aluminum alloy extrusion designed for wide range operation temperature (under freezing point), anti-vibration and 50G shock working environment.
Loading...
Fanless Embedded Box FES7610 Front View

FES7610

Fanless Embedded Box FES6850 Front View

FES6850

FES7611

  • Heavy-duty steel micro box
  • Fanless embedded system
  • Intel Celeron M ULV 1.0GHz processor
  • 120GB Hard Disk Drive
  • 6 x COM ports
  • Low power consumption
  • Anti-Shock and Vibration design
$585.00
Availability: In stock
SKU
FES7611
Email
Fan less embedded box, Celeron M 1.0GHz 852GM system, 120GB HD, 1GB DDR memory & 6 x COM ports. Aluminum alloy chassis (10" x 2.5" x 8.8”). -10 to 50 degree C working temperature.
Construction
Aluminum extrusion and heavy-duty cold-rolled steel
Embedded System
CPU Type: Intel Celeron M ULV 1.0GHz processor
Memory: 200-pin DDR266 SO-DIMM x 1, (up to 1GB)
Chip-set: Intel 852GM+ICH4
Watchdog: 1~255 sec Watchdog timer selectable w/ Reset/ NMI
Hard Disk Drive: 1 x 3.5" SATA HDD, Max up to 700GB
I/O Port
Serial port: 6 x COM (COM2/4/6: RS-232; COM2/4: RS-422/485 with DB-9)
USB: 2 x USB2.0
LAN: 1 x 10/100Mbps LAN (RJ45)
Audio: Line-in/ Line-out/ MIC
Keyboard/Mouse: 1 x PS/2 for Keyboard/Mouse
VGA: 1 x VGA
I/O Layouts
6 x COM
1 x LAN
2 x USB 2.0 connector
1 x Line-in/ Line-out/ MIC
1 x VGA port
1 x PS/2 for Keyboard & Mouse
1 x Power On/Off Switch
1 x Power input
Expansion Slot
1 x PCMCIA slot
1 x Reset button
Serial Speed
RS-232: 50~115.2 kbps
RS-422/485: 75~921.6 kbps
System LED Indicator
1 x Power LED
1 x HDD LED
Power Supply
External power adapter: 110/220VAC 90W power adapter
On-board connector: 24VDC power input with 3-pin phoenix connector
System Support
Windows2000/ XP/ XPe/ WinCE/ Linux
Color
Mustard
Mounting
Wall mount

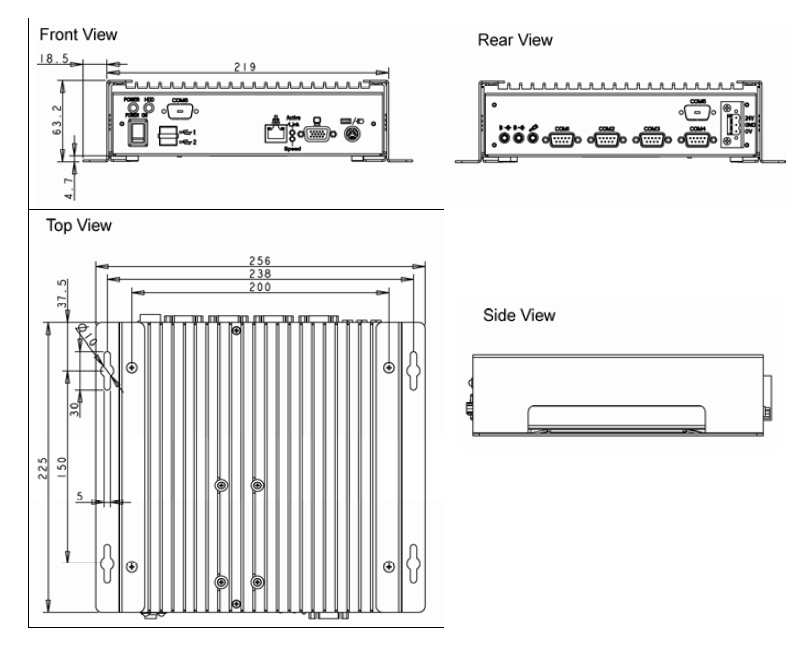

Dimension
10"(W) x 2.5"(H) x 8.8"(D)
Weight
6.61lb
Environmental
Operating Temperature:0°C ~ 40 °C
Storage Temperature: -20°C to 70 °C
Humidity: 20~80%
Anti-Vibration: 2.16Grms, 500Hz
Shock: 50G (11ms duration)
EMC: CE/FCC

FES 7611:
Fan less embedded system, Celeron M 1.0GHz 852GM all-in-one system, 120GB HD, 512MB DDR memory, Black color
Price:$ 585.00


Document
Description
Download Link
file iconFES_7611-data.pdf
Data Sheet
file iconFES_7611-dim.pdf
Dimension
file iconFES_7611-um.pdf
User Manual
  • FES7611
    Fan less embedded box
    Celeron M 1.0GHz 852GM system
    120GB HD, 1GB memory
    6 x COM ports
    Aluminum alloy chassis (10" x 2.5" x 8.8")
    -10 to 50 degree C working Temp
    Starting at:
    $585.00
FES7611
$585.00

Construction :
  Compacted rugged fanless micro box comes with an alumium extrusion and is made of a heavy-duty cold-rolled steel. The small form factor embedded system box is designed for industrial applications like POS, transportation, control, surveillance and more. It provides high reliability and noiseless performance in harsh environments.

Onboard System :
  The embedded system is powered by an Intel Celeron M ULV 1.0GHz processor. It comes with the features of the standard motherboard and the additional function for industrial application. It accepts 200-pin DDR266 SODIMM memory (up to 1 GB), 6 x COM ports (COM2/4/6: RS-232, COM2/4: RS-422/485), 2 x USB ports, on board 10/100Mbps LAN, Audio and VGA.

Storage Device :
The system comes a standard 3.5" PATA HDD up to 100GB for the feature the Windows XP/ XPe embedded application.

Power Supply :
It comes with 1 x DC 24V input, 90Watt.

Mounting :Fanless embeddd system can be wall mount.
