Fan less embedded system comes with Celeron M ULV processor, 120GB HD, 1 x LAN, Audio, 1 x PCMCIA expansion slot and 2 COM/USB ports. The rugged aluminum alloy extrusion designed for wide range operation temperature (under freezing point), anti-vibration and 50G shock working environment.
Loading...
Fanless Embedded Box FES7510 Front View

FES7510

Fanless Embedded Box FES7611 Front View

FES7611

FES7610

  • Heavy-duty steel micro box
  • Fanless embedded system
  • Intel Celeron M ULV processor
  • 2.5" or 3.5" PATA Hard Disk Drive
  • PCMCIA slot for expansion
  • Low power consumption
  • Anti-Shock and hard drive design
$535.00
Availability: In stock
SKU
FES7610
Email
Fan less embedded box, Celeron M 1.0GHz 852GM system, 120GB HD, 1GB DDR memory & 1 x PCMCIA slot. Aluminum alloy chassis (10" x 2.5" x 8.8”). -10 to 50 degree C working Temp.
Construction
Aluminum extrusion and heavy-duty cold-rolled steel
Embedded System
CPU Type: Intel Celeron M ULV processor
Memory: 200-pin DDR266 SO-DIMM x 1, (up to 1GB)
Hard Disk Drive: 1 x 2.5" or 3.5" PATA HDD, Max up to 700GB
Video Controller: Built-in Intel 852 GM, share system memory
I/O Port
Serial port: 2 x COM
Com2: RS-232/422/485
USB: 2 x USB2.0
LAN: 1 x 10/100Mbps LAN (RJ45)
Audio: Line-in/ Line-out/ MIC
Keyboard/Mouse: 1 x PS/2 for Keyboard/Mouse
VGA: 1 x VGA
I/O Layouts
2 x COM
2 x LAN
2 x USB 2.0 connector
1 x Line-in/ Line-out/ MIC
1 x VGA port
1 x PS/2 for Keyboard & Mouse
1 x Power On/Off Switch
1 x Power input
1 x Reset button
Expansion Slot
1 x PCMCIA slot
System LED Indicator
1 x Power LED
1 x HDD LED
Power Supply
100W ATX
AC 100V~240V input
DC 24V 2-pin output (Optional)
System Support
Win XP/ XPE/ 2000/ Red Hat
Color
Mustard
Mounting
Wall mount

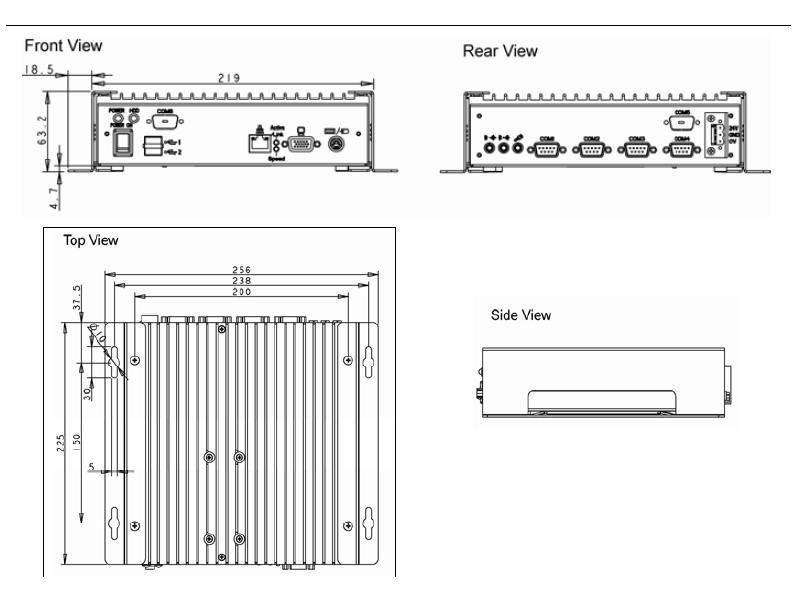

Dimension
10"(W) x 2.5"(H) x 8.8"(D)
Weight
6.61lb
Environmental
Operating Temperature:0°C ~ 40 °C
Storage Temperature: -20°C to 70 °C
Humidity: 20~80%
Anti-Vibration: 2.16Grms, 500Hz
Shock: 50G (11ms duration)
EMC: CE/FCC

FES 7610:
Fan less embedded system, Celeron M 1.0GHz 852GM all-in-one system, 120GB HD, 512MB DDR memory, Black color
Price:$ 535.00


Document
Description
Download Link
file iconFES_7610-data.pdf
Data Sheet
file iconFES_7610-dim.pdf
Dimension
file iconFES_7610-um.pdf
User Manual
  • FES7610
    Fan less embedded box
    Celeron M 1.0GHz 852GM system
    120GB HD & 1GB DDR memory
    1 x PCMCIA slot
    Aluminum alloy chassis (10" x 2.5" x 8.8")
    -10 to 50 degree C working Temp
    Starting at:
    $535.00
FES7610
$535.00

Construction :
  Compacted rugged fanless micro box comes with an alumium extrusion and is made of a heavy-duty cold-rolled steel. The small form factor embedded system box is designed for industrial applications like POS, transportation, control, surveillance and more. It provides higher reliability and noiseless performance in harsh environments.

Onboard System :
  The embedded system is powered by an Intel Celeron M ULV processor. It comes with the features of the standard motherboard and the additional functions for industrial applications. It accepts DDR266 SODIMM memory (up to 1 GB), 2 x COM ports (COM2 supports RS232/422/485), 2 x USB ports, on board 10/100Mbps LAN, Audio and VGA.

Storage Device :
The system comes standard 2.5" SATA HDD up to 100GB for the feature the Windows XP pro/XPE embedded application.

Expansion Slots :
We provide 1 x PCMCIA slot for the expansion.

Power Supply :
It comes with 1 x 100/240VAC external power adapter. Optional: DC 24V 2-pin output.

Mounting :Fanless embeddd system can be wall mount.
