Fan less embedded system comes with Celeron M ULV 1.0GHz processor, 120GB HD, dual LAN, Audio, 1 PCMCIA expansion slot and 2 COM/USB ports. The rugged aluminum designed for wide range operation temperature (under freezing point), anti-vibration and 50G shock working environment.
Loading...
Fanless Embedded Box FES6911 Front View

FES6911

Fanless Embedded Box FES7610 Front View

FES7610

FES7510

  • Heavy-duty steel micro box
  • Fanless embedded system
  • Intel Celeron M ULV 1GHz processor
  • 2.5" SATA Hard Disk Drive
  • Dual VGA & DVI-D display
  • 24VDC Power input with ATX power function
  • Anti-Shock and vibration design
$615.00
Availability: In stock
SKU
FES7510
Email
Fan less embedded box, Celeron M 1.0GHz 915GM system, 120GB HD, 1GB memory & 1 x PCMCIA slot. Aluminum alloy chassis (8.5" x 2.2" x 6.9"). 0 to 40 degree C working temperature.
Construction
Aluminum extrusion and heavy-duty cold-rolled steel
Embedded System
CPU Type: Intel Celeron M ULV 1.0GHz processor
Memory: DDRII SODIMM x 1, (up to 2GB)
Chipset: Intel 95GM/GME+ICH6M
Watchdog: 1~255 sec Watchdog timer selectable w/ Reset/ NMI
Hard Disk Drive: 1 x 2.5" SATA HDD bay
I/O Port
Serial port: 2 x COM
Com1/2: RS-232, +5V
USB: 2 x USB2.0
LAN: 2 x LAN
(Front side: 10/100/1000Mbps LAN; Rear side: 10/100Mbps LAN)
Audio: 1 x Mic-in, SPK-out (Line-in by jumper setting)
IEEE: 1 x IEEE 1394a port
Keyboard/Mouse: 1 x PS/2 for Keyboard/Mouse
DVI: 1 x DVI-D (resolution up to 1920x1200 60Hz max)
VGA: 1 x VGA
I/O Layouts
2 x COM
2 x LAN
2 x USB 2.0 connector
1 x SPK-out/Mic-in port
1 x VGA port
1 x DVI-D port
1 x IEEE 1394a port
1 x PS/2 for Keyboard & Mouse
1 x Power On/Off Switch
1 x Power input
1 x Reset button
Expansion Slot
1 x PCMCIA slot
System LED Indicator
1 x Power LED 1 x HDD LED
Power Adapter
External 100W ATX VAC 100V~240V input power adapter with DC24V 2-pin phoenix type connector
System Support
Windows 2000/ XP/ XP-E (SP2), Windows CE.NET 4.2/5.0
Color
Mustard
Mounting
Wall mount

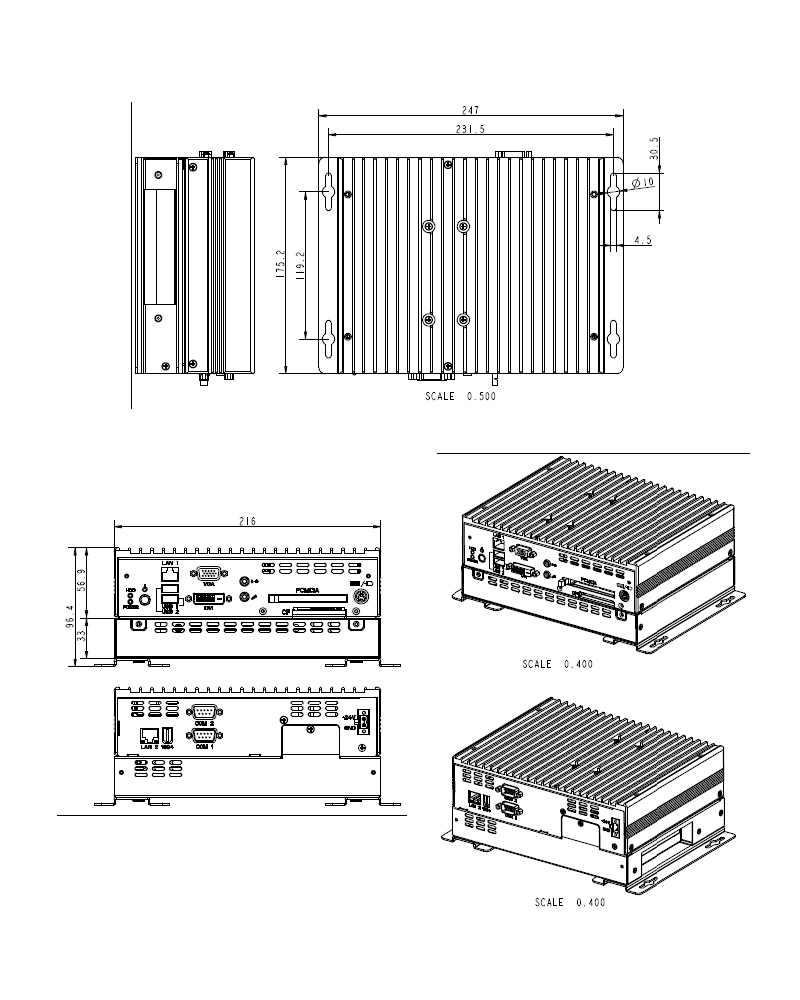

Dimension
8.5"(W) x 2.2 "(H) x 6.9 "(D)
Weight
4.85lb
Environmental
Operating Temperature:0°C ~ 40 °C
Storage Temperature: -20°C to 70 °C
Humidity: 20~90%
Anti-Vibration: 2.16Grms, 500Hz
Shock: 50G (11ms duration)
EMC: CE/FCC

FES 7510:
Fanless embedded system comes with Celeron M ULV 1GHz all-in-one system, 1GB DDR2 memory, 120GB HD and 100W ATX power adapter.
Price:$ 615.00


Document
Description
Download Link
file iconFES_7510-data.pdf
Data Sheet
file iconFES_7510-dim.pdf
Dimension
file iconFES_7510-um.pdf
User Manual
  • FES7510
    Fan less embedded box
    Celeron M 1.0GHz 915GM system
    120GB HD, 1GB memory
    1 x PCMCIA slot
    Aluminum alloy chassis (8.5" x 2.2" x 6.9") 0 to 40 degree C working Temp
    Starting at:
    $615.00
FES7510
$615.00

Construction :
  Compacted rugged fanless micro box comes with an alumium extrusion and is made of a heavy-duty cold-rolled steel. The small form factor embedded system box is designed for industrial applications like POS, transportation, control, surveillance and more. It provides high reliability and noiseless performance in harsh environments.

Onboard System :
  The embedded system is powered by an Intel Celeron M ULV 1.0GHz processor. It comes with the features of the standard motherboard and the additional functions for industrial applications. It accepts DDRII SODIMM memory (up to 2 GB), 2 x RS-232 ports, 2 x USB ports, on board LAN (10/100/1000Base-TX and 10/100Base-TX), Audio and VGA.

Storage Device :
The system comes a standard 2.5" SATA HDD up to 100GB for the feature the Windows XP pro/XPE embedded application.

Expansion Slots :
We provide 1 x PCMCIA slot for the expansion.

Power Supply :
It comes with 1 x 100/240VAC external power adapter. Optional: DC 24V 2-pin output.

Mounting :Fanless embeddd system can be wall mount.
