Fan less embedded system comes with Atom N270 processor, Hard drive, Dual LAN, Audio, 2 x PCI / PCMCIA slots, 1 Mini PCI expansion slots and 4 COM / USB ports. The rugged aluminum alloy chassis designed for wide range operation temperature (under freezing point), anti-vibration and 50G shock working environment.
Loading...
Fanless Embedded Box FES6841 Front View

FES6841

Fanless Embedded Box FES7510 Front View

FES7510

FES6911

  • Aluminum alloy rugged micro box
  • Fanless embedded system
  • Intel Atom N2701.6GHz Processor
  • Wide range working temperature (14°F ~ 122°F)
  • Built-in Hard drive
  • 2 x PCI expansion slots
  • 9 to 30VDC power inpiut with ATX power function
$875.00
Availability: In stock
SKU
FES6911
Email
Fan less embedded box, Atom N270 1.6GHz, 1GB DDr-II memory, 120GB HD, ATX power, 2 x PCI & 1 x Mini PCI slots. Aluminum alloy chassis (8.43" x 3.73" x 9.36”). -10 to 50 degree C working temperature.
Construction
Rugged aluminum alloy chassis
Embedded System
CPU Type: Intel Atom N270 1.6GHz processor
Memory: 1 x DDRII SDRAM SODIMM socket, Max. 2 GB
Expansion: 2 x PCI, 2 x PCMCIA, 1 x Mini PCI
Driver Bays: 1 x SATA/IDE HD Drive bracket
MTBF: 40,000hrs
I/O Port
Serial port: 4 x COM
Com1/3/4:RS-232, Com2:RS-232/422/485
USB: 4 x USB2.0
LAN: 2 x RJ-45, Gigabit Ethernet
Audio: Line-in, Line-out, Mic-in by an extension cable
VGA/Keyboard/Mouse:
1 x DB-15 VGA Connector,
1 x PS/2 for Keyboard & Mouse
I/O Layouts
4 x COM
2 x RJ-45, Gigabit Ethernet
4 x USB 2.0 connector
1 x Line-in/Line-out/Mic-in port
1 x DB-15 VGA Connector
1 x PS/2 for Keyboard & Mouse
1 x Power On/Off Switch
1 x Power input
1 x Reset button
Expansion Slot
1 x PCMCIA slot
1 x CompactFlash slot
System LED Indicator
1 x Power switch
1 x Power LED
1 x HDD LED
Power Supply
1. ATX Power Function
2. DC input 9-30(Phoenix connector 3 pin)
3. Power Board Support (80W) operation output
4. Optional AC power adapter, input voltage range 100~240
System Support
Windows CE 5.0, Windows XP Pro, Windows XP Embedded, Linux, Red Hat, Windows 7
Color
Mustard
Mounting
Wall mount

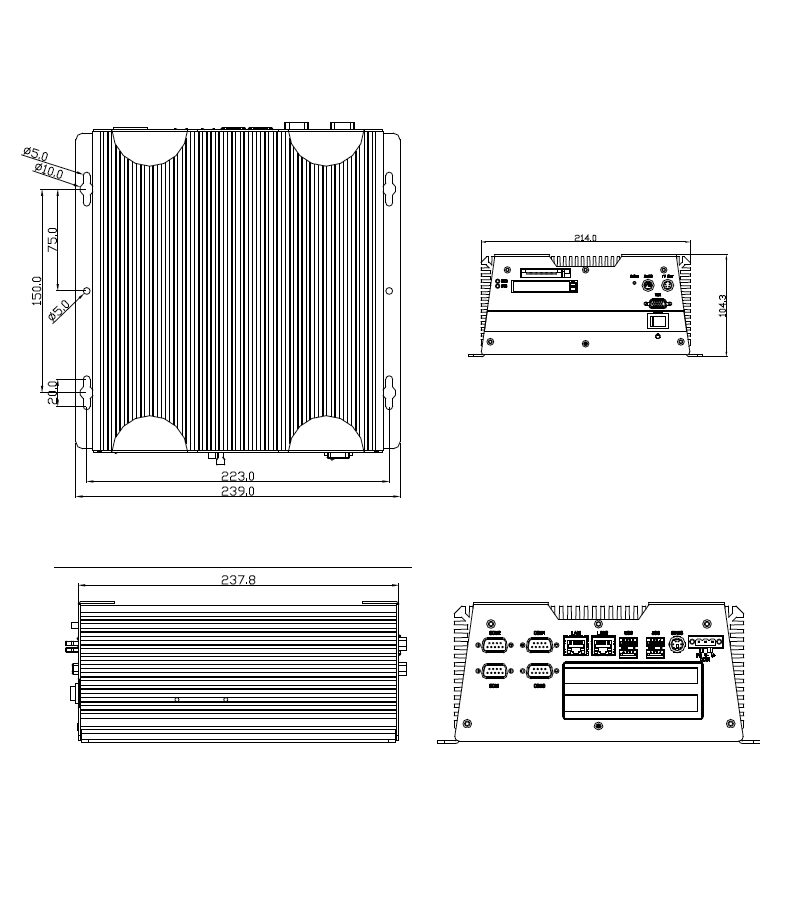

Dimension
8.43"(W) x 3.73"(H) x 9.36"(D)
Weight
12.4lb
Environmental
Operating Temperature:-15 °C ~ 55°C (CFD) / -10°C ~ 50°C (HDD)
Storage Temperature: -20°C to 70 °C
Humidity: 5~95% @ 40 °C, non-condensing
Vibration:5g rms/5 ~ 500Hz/operation (CFD) / 1g rms/5 ~ 500Hz/operation (HDD)
Shock:50G peak acceleration (11ms duration)/CFD
EMC: CE/FCC

FES 6911:
Fan less embedded system, Atom N270 1.6GHz CPU, 1GB DDR-II memory, 120GB HD & 2 x PCI expansion slots. Wall mount ready.
Price:$ 875.00


Document
Description
Download Link
file iconFES_6911-data.pdf
Data Sheet
file iconFES_6911-dim.pdf
Dimension
file iconFES_6911-um.pdf
User Manual
  • FES6911
    Fan less embedded box
    Atom N270 1.6GHz
    1GB memory, 120GB HD, ATX power
    2 x PCI & 1 x Mini PCI slots
    Aluminum alloy chassis ( 8.5" x 3.8" x 9.4")
    -10 to 50 degree C working Temp
    Starting at:
    $875.00
FES6911
$875.00

Construction:
  The construction is of a compacted rugged fanless micro box with an aluminum die-casting heat sink and a heavy-duty alloy construction. The small form factor embedded box is designed for industrial applications like POS, transportation, control, surveillance and more. It provides high reliability and noiseless performance in harsh environments.

On Board System:
  The embedded system is powered by an Atom N270 1.6GHz processor of the operation It comes with the features of a standard motherboard with a fanless design function. It comes with a 2.5" slim-type SATA hard drive, 2 x DDRII SODIMM memory (Max. 2 GB), watchdog timer, 4 x RS-232 ports, 4 x USB ports, Dual Gigabit LAN, Audio and VGA. The all-in-one fanless system provides wide working temperature range from 14oF to 122oF (-10oC ~ 50oC), operation vibration at 1G rms 5 to 500Hz and shock at 50G peak acceleration (11ms duration).

Storage Device:
The system comes with a standard 2.5" SATA HDD and slim-type DVD optical drive.

Expansion Slots:
We provide 2 x PCI and 2 x PCMICA expansion slots.

Power Supply :
  The fanless industrial PC uses the industry-grade Phoenix type or DC-jack power connector plug, and supports a 9VDC to 30VDC power supply with ATX power function. Optional:100/220VAC 50/60z external AC power adapter.

Mounting:Fanless embeddd system can be wall mount.

References
What is an embedded computer?
An embedded system is a computer system that includes a specific function within a larger computerized system.
