Fan less embedded system comes with Intel Celeron M 1.3GHz processor, 120GB HD, Dual LAN, Audio, 1 PCI & 2 PCMCIA expansion slots and 4 COM/USB ports. The rugged aluminum alloy chassis designed for wide range operation temperature (under freezing point), anti-vibration and 50G shock working environment.
Loading...
Fanless Embedded Box FES6850 Front View

FES6850

Fanless Embedded Box FES6905 Front View

FES6905

FES6910

  • Aluminum alloy rugged micro box
  • Fanless embedded system
  • Celeron M 1.3GHz Processo
  • 1 xx 512MB DDR memory
  • 120GB Hard Drive
  • Wide working temperature from -15°C to 45°C
  • 1 x PCI slot
  • 9 ~ 30VDC power input with AT power function
$950.00
Availability: In stock
SKU
FES6910
Email
Fan less embedded box, Celeron M 1.3GHz system, 120GB HD, 512GB memory, AT power & 1 x PCI slot. Aluminum alloy chassis (8.4" x 3.7" x 9.4”). -15 to 45 degree C working temperature.
Construction
Rugged aluminum alloy chassis
Embedded System
CPU Type: Intel Celeron M 1.3GHz processor
Memory: 1x DDR SDRAM SODIMM, 512MB (Max. 1 GB)
Expansion: 1 x PCI & 2 x PCMCIA
Driver Bays:1 x 2.5" HD Drive bay
MTBF: 40,000hrs
I/O Port
Serial port: 4 x COM, 3 for RS-232, 1 for RS-232/422/485
USB: 4 x USB2.0
LAN: 1 x RJ-45, 10/100Base-TX
Parallel: 1 x printer
Audio: Line-in, Line-out, Mic-in by an extension cable
VGA/Keyboard/Mouse:
1 x DB-15 VGA Connector
1 x PS/2 for Keyboard & Mouse
I/O Layouts
4 x COM
1 x RJ-45
4 x USB 2.0 connector
1 x Line-in/Line-out/Mic-in port
1 x DB-15 VGA Connector
1 x PS/2 for Keyboard & Mouse
1 x Power On/Off Switch
1 x Power input
1 x Reset button
Expansion Slot
1 x PCI
2 x PCMCIA slot
1 x CompactFlash slot
System LED Indicator
1 x Power LED
1 x HDD LED
Power Supply
1.DC Input
Internal DC-DC Converter
Input voltage: 9V DC ~30V DC
2. AC Input
External Power 9V DC ~ 30V DC
Input voltage: 100V AC ~240V AC @50~60Hz
System Support
Windows XP Pro, Windows XP Embedded
Color
Mustard
Mounting
Wall mount
Dimension
8.4"(W) x 3.7"(H) x 9.4"(D)-1 PCI
Weight
12.4lb-1 PCI
Environmental
Operating Temperature: -15 °C ~ 55°C (CFD) / -15°C ~ 50°C (Automotive HDD) / -15°C ~ 45 °C (Normal HDD)
Humidity: 5~95% @ 40 °C, non-condensing
Vibration: 5g rms/5 ~ 500Hz/operation (CFD) / 1g rms/5 ~ 500Hz/operation (Internal HDD)
Shock:50G peak acceleration (11ms duration)/CFD / 20G peak acceleration (11ms duration)/HDD
EMC: CE/FCC

FES 6910:
Fan less embedded system, Celeron M 1.3GHz CPU, 512MB DDR memory, 120GB HD & 1 x PCI slot. Wall mount ready.
Price:$ 950.00


Document
Description
Download Link
file iconFES_6910-data.pdf
Data Sheet

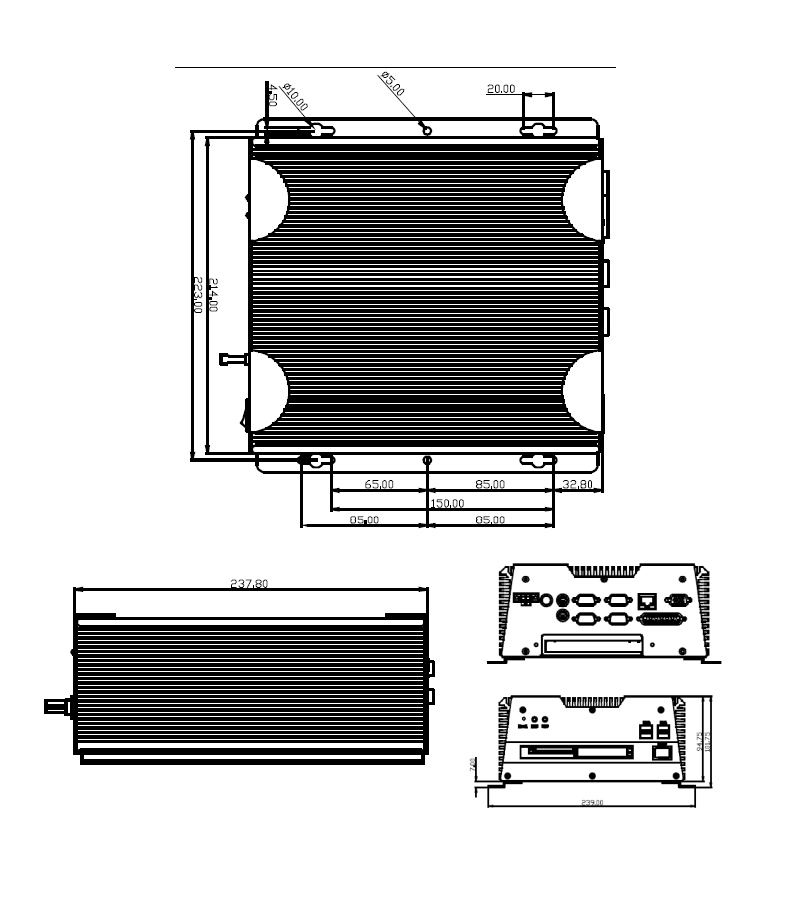

file iconFES_6910-dim.pdf
Dimension
file iconFES_6910-um.pdf
User Manual
  • FES6910
    Fan less embedded box
    Celeron M 1.3GHz system
    120GB HD, 512GB memory
    AT power
    1 x PCI slot
    Aluminum alloy chassis (8.4" x 3.7" x 9.4")
    -15 to 45 degree C working Temp
    Starting at:
    $950.00
FES6910
$950.00

Construction :
  Compacted rugged fanless micro box has an alumium extrusion and is made of a heavy-duty cold-rolled steel. The small form factor embedded system box is designed for industrial applications like POS, transportation, control, surveillance and more. It provides high reliability and noiseless performance in harsh environments.

Onboard System :
  The embedded system is powered by a Celeron M 1.3GHz processor. It comes with the features of the standard motherboard with fanless design function. It comes with a 120GB 2.5" slim-type SATA hard drive, 1 x DDR SODIMM memory (Max. 1 GB), watchdog timer, 4 x RS-232 ports, 4 x USB ports, daul Gigabit LAN, Audio and VGA. The all-in-one fan less system provides wide working temperature range from 5oF to 113oF (-15oC ~ 45oC), operation vibration at 1G rms 5 to 500Hz and shock at 20G peak acceleration (11ms duration).

Storage Device :
The system comes with a standard 2.5" SATA HD and slim-type DVD optical drive.

Expansion Slots :
We provide 1 x PCI slot and 2 x PCMCIA for the expansion. optional for 2x PCI expansion slot.

Power Supply :
The fanless industrial PC uses the industry-grade Phoenix type or DC-jack power connector plug, and supports a 9VDC to 30VDC power supply with ATX power function. Optional: 100/220VAC 50/60z external AC power adapter.

Mounting :Fanless embeddd system can be wall mount.

References
What is an embedded computer?
An embedded system is a computer system that includes a specific function within a larger computerized system.
