Fan less embedded system comes with Celeron M 600MHz processor, 4GB Compact Flash card, single LAN, Audio, 2 COM/3 USB ports. The rugged aluminum alloy chassis designed for wide range operation temperature (under freezing point), anti-vibration and 100G shock working environment.

Skip to the beginning of the images gallery

FES7611

FES6910

FES6850

Aluminum alloy rugged micro box
Fanless design
Intel Celeron M 600MHz Processor
1GB DDR memory
4GB CF storage device
Wide working temperature from -15 degree C to 60 degree C
9 ~ 30VDC power input with AT/ATX power function

$840.00

Availability: In stock

SKU

FES6850

Fan less embedded box, Celeron M 600MHz system, 4GB CF, 1GB DDR memory AT/ATX power & DVI with S-video TV out port. Aluminum alloy chassis (8.35" x 2.5" x 6.26”). -15 to 60 degree C working temperature.

Specification

Construction: Rugged aluminum alloy chassis

Embedded System: CPU Type: Intel Celeron M 600MHz/1.3GHzprocessor
Memory: DDR SDRAM SODIMM x 1, Max. 1 GB
Driver Bays:
2.5” HDD(SATA) + Slim CD-ROM Module(IDE)-Optional
Dual 2.5” Slim HDD Module (SATA)-Optional
SSD: 1 x compactflash slot (4GB / 8GB / 16GB)
MTBF: 60,000 Hours

I/O Port: Serial port: 2 x COM, 1 x RS-232, 1 x RS-232/422/485
USB: 3 x USB2.0
LAN: 1 x RJ-45, 10/100Base-TX
Audio: Line-in, Line-out, Mic-in by an extension cable
Video: 1 x S-Video, 1 x DVI-D
VGA/Keyboard/Mouse:
1 x DB-15 VGA,
1 x PS/2 for Keyboard & Mouse

I/O Layouts: 2 x COM
1 x RJ-45
3 x USB 2.0 connector
1 x Line-in/Line-out/Mic-in port
1 x DB-15 VGA Connector
1 x PS/2 for Keyboard & Mouse
1 x S-Video
1 x DVI-D
1 x Power On/Off Switch
1 x Power input
1 x Reset button

System LED Indicator: 1 x Power LED
1 x HDD LED

Power Supply: 1.DC Input (Default)
Internal DC-DC Converter
Input voltage: 9V DC ~30V DC
2. AC Input (Optional)
External Power 9V DC ~ 30V DC
Input voltage: 100V AC ~240V AC @50~60Hz

System Support: Windows XP, Windows XP Embedded, Windows CE .NET5.0, Windows 7

Color: Dark blue

Mounting: DIN Rail, Wall mount

Dimension: 8.35"(W) x 2.5"(H) x 6.26"(D)

Weight: 10.34lb

Environmental: Operating Temperature:
-15°C ~ 60°C- Celeron M 600MHz(CFD)
-15°C ~ 50°C- Celeron M 600MHz(HDD)
-15°C ~ 50°C- Celeron M 1.3GHz(CFD)
-15°C ~ 45°C- Celeron M 1.3 GHz(HDD)
Storage Temperature:
-20°C ~ 70 °C (CFD)
-20°C ~ 70 °C (HDD)
Humidity: 5~95% @ 40 °C, non-condensing
Vibration: 5g rms/5 ~ 500Hz/operation (CFD)
Shock: 100G peak acceleration (11ms duration)(CFD)
EMC: CE/FCC

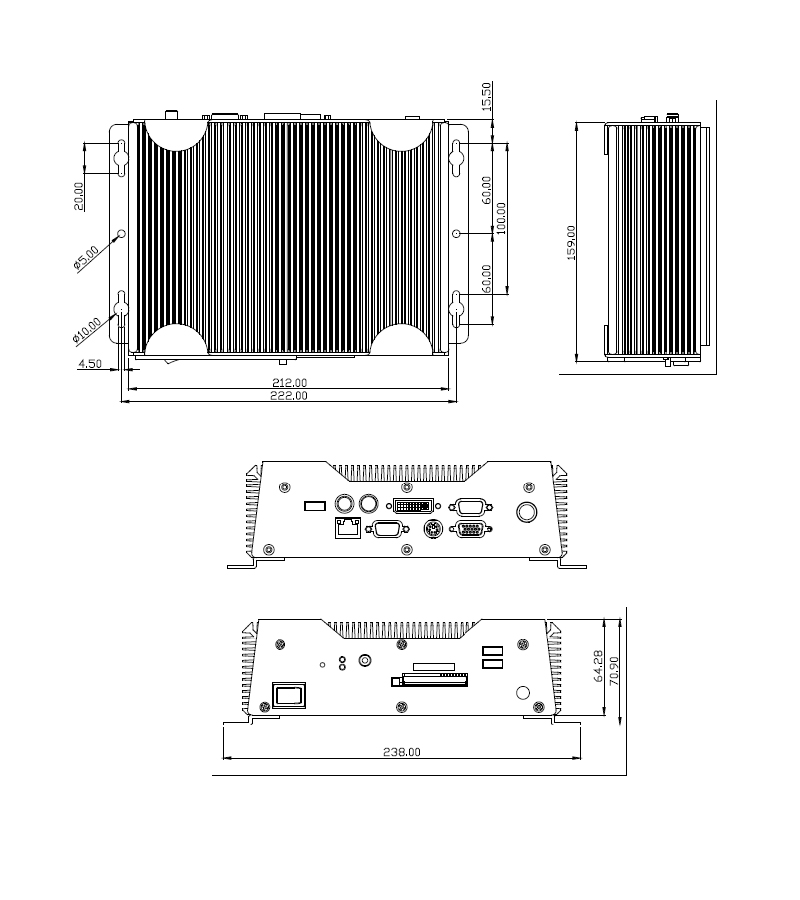

Dimensions

Order Info

FES 6850:
Fan less embedded system, Celeron M 600MHz CPU, 1GB DDR-II memory, 4GB CF & 1 x 4-in-1 card reader. Wall mount ready.
Price:$ 840.00

Downloads

Document

Description

Download Link

FES_6850-data.pdf

Data Sheet

FES_6850-dim.pdf

Dimension

FES_6850-um.pdf

User Manual

Configure Now

FES6850

Fan less embedded box
Celeron M 600MHz system
4GB CF & 1GB memory
AT/ATX power
DVI with S-video TV out port
Aluminum alloy chassis (8.4" x 2.5" x 6.3")
-15 to 60 degree C working Temp

Starting at:
$840.00

FES6850

$840.00

CPU

Celeron M 1.3GHz

Celeron M 600MHz

memory

1GB memory

Ethernet LAN

10/100 Ethernet LAN

Video

On-board video

Operating system

No O.S.

Windows 7 Pro 32bit + $165.00

Windows XP Pro 32Bit + $265.00

Qty:

Construction :

Onboard System :
embedded system is powered by a Celeron M 600MHz (up to 1.3GHz) processor. It comes with the features of the standard motherboard with fanless design function. It comes with a 2.5" slim-type SATA hard drive, 1 x DDRII SODIMM memory (Max. 1 GB), watchdog timer, 2 x RS-232 ports, 1 x USB ports, 1 x LAN, Audio and DVI-D with VGA and S-video TV out ports. The all-in-one fanless system provides wide working temperature range from 5oF to 140oF (-15oC ~ 60oC), operation vibration at 5G rms 5 to 500Hz and shock at 100G peak acceleration (11ms duration).

Storage Device :

Expansion Slots :

Power Supply :
ATX power function. Optional: 100/220VAC 50/60z external AC power adapter.

Mounting :
Fanless embeddd system can be wall mount.
