Fan less embedded box, Atom N270 1.6GHz system, 120GB HD, 1GB memory, 1 x DIO port, AT power & 1 x Mini PCI slot. Aluminum alloy chassis (8.35" x 2.52" x 4.21”). -10 to 50 degree C working Temp.

Skip to the beginning of the images gallery

FES6831

FES6911

FES6841

Aluminum alloy rugged micro box
Fanless design
Intel Atom N270 1.6GHz Processor
1GB DDR memory
120GB hard drive
Wide working temperaute from -10 degree C to 50 degree C
9 ~ 30VDC power input with AT power function

$685.00

Availability: In stock

SKU

FES6841

Fan less embedded system comes with Intel Atom N270 processor, Optional 120GB HD, Dual LAN, Audio, 1 Mini PCI expansion slot and 4 COM/USB ports. The rugged aluminum alloy chassis designed for wide range operation temperature (under freezing point), anti-vibration and 50G shock working environment.

Specification

Construction: Rugged aluminum alloy chassis

Embedded System: CPU Type: Intel Atom N270 processor, 1.6GHz
Memory: DDRII SDRAM SODIMM x 1, Max. 2 GB
Ethernet: 1 x RJ-45 (10/100Base-TX/Ethernet)
1 x RJ-45 (10/100/1000Base-TX/Ethernet)
Driver Bays: SATA Hard Disk Drive
SSD: 1 x on-board Compact-Flash socket

I/O Port: Serial port: 4 x COM
3 x RS-232, 1 x RS-232/422/485
USB: 4 x USB2.0
LAN: 2 x RJ-45 (10/100Base-TX/Ethernet)
Audio: Line-in, Line-out, Mic-in by an extension cable
VGA/Keyboard/Mouse:
1 x DB-15 VGA,
1 x PS/2 for Keyboard & Mouse
1 x DIO port

I/O Layouts: 4 x COM
2 x RJ-45 (10/100Base-TX/Ethernet)
4 x USB 2.0 connector
1 x Line-in/Line-out/Mic-in port
1 x DB-15 VGA
1 x PS/2 for Keyboard & Mouse
1 x Power On/Off Switch
1 x Power input
1 x Reset button

Expansion: 1 x Mini-PCI (standard)
1 x Mini Card (optional)

System LED Indicator: 1 x Power LED
1 x HDD LED

Power Supply: 1. AT power function
2. DC input 9-30 (Phoenix connector 2-pin)
3. Power Board Support (80W) operation output
4. Optional AC power adapter, input voltage range 100~240V

System Support: Windows XP Pro, Windows XP Embedded, Windows CE 5.0, Linux, Windows 7

Color: Dark blue

Mounting: Wallmount

Dimension: 8.35"(W) x 2.52 "(H) x 4.21 "(D)

Weight: 4.75lb

Environmental: Operation Temperature: 15°C ~ 60°C-(CFD) / -10C ~ 50°C-(HDD)
Humidity: 5~95% @ 40 °C, non-condensing
Vibration: 5g rms/5 ~ 500Hz/operation (CFD) / 1g rms/5 ~ 500Hz/operation (HDD)
Shock: 50G peak acceleration (11ms duration)(CFD)
EMC: CE/FCC

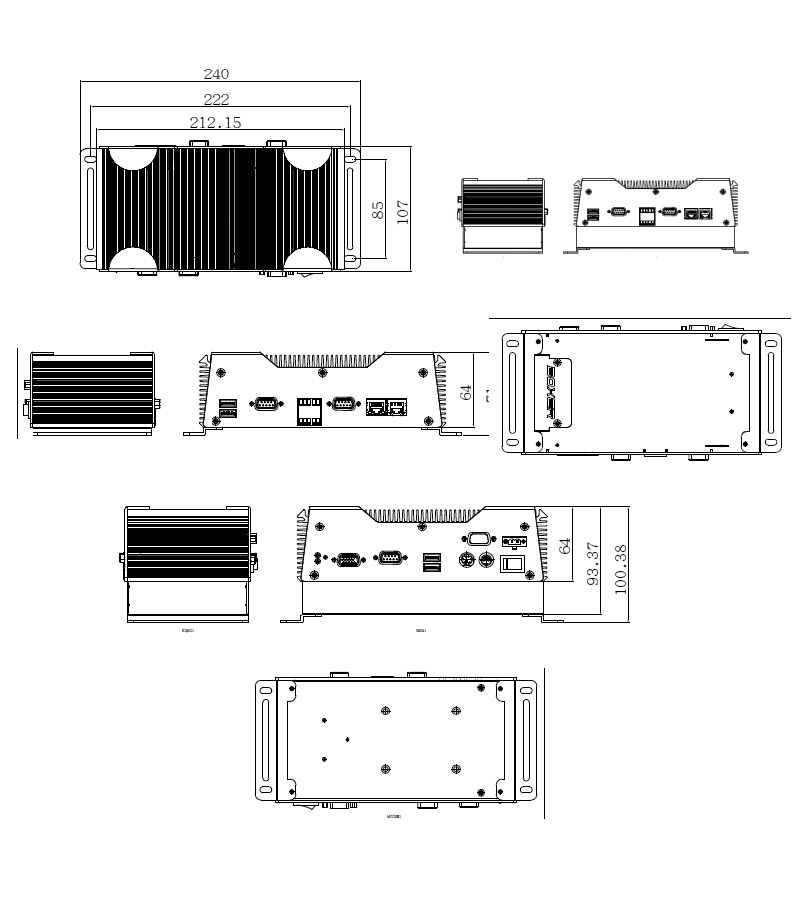

Dimensions

Order Info

FES 6841:
Fan less embedded system, Atom N270 1.6GHz CPU, 1GB DDR-II memory, 120GB HD & 1 x Mini PCI expansion slot. Wall mount ready.
Price:$ 685.00

Downloads

Document

Description

Download Link

FES_6841-data.pdf

Data Sheet

FES_6841-dim.pdf

Dimension

FES_6841-um.pdf

User Manual

Configure Now

FES6841

Fan less embedded box
Atom N270 1.6GHz system
120GB HD, 1GB memory
1 x DIO port & AT power
1 x Mini PCI slot
Aluminum alloy chassis (8.4" x 2.6" x 4.3")
-10 to 50 degree C working Temp.Â

Starting at:
$685.00

FES6841

$685.00

CPU

Atom N270 1.6GHz

memory

1GB memory

2GB memory + $40.00

Hard Drive

250GB HD

Ethernet LAN

100/1000 Ethernet LAN

Video

On-board video

Operating system

No O.S.

Windows 7 Pro 32bit + $165.00

Windows XP Pro 32Bit + $265.00

Qty:

Construction :
Compacted rugged fanless micro box comes with an aluminum die-casting heat sink with a heavy-duty alloy construction. The small form factor embedded box is designed for industrial applications like POS, transportation, control, surveillance and more. It provides high reliability and noiseless performance in the harsh environment.

On Board System :
The embedded system is powered by an Atom N270 1.6GHz processor of the operation. It comes with the features of the standard motherboard with a fanless design function. It comes with a 2.5" slim-type SATA hard drive, 2 x DDRII SODIMM memory (Max. 2 GB), watchdog timer, 4 x RS-232 ports, 4 x USB ports, Dual Gigabit LAN, Audio and VGA. The all-in-one fan less system provides wide working temperature range from 14oF to 122oF (-10oC ~ 50oC), operation vibration at 1G rms 5 to 500Hz and shock at 50G peak acceleration (11ms duration).

Storage Device :
The system comes with a standard 2.5" SATA HDD and slim-type DVD optical drive.

Expansion Slots :
We provide 2 x PCI and 2 x PCMICA expansion slots.

Power Supply :
The fanless industrial PC uses the industry-grade Phoenix type or DC-jack power connector plug, and supports a 9VDC to 30VDC power supply with ATX power function. Optional: 100/220VAC 50/60z external AC power adapter.

Mounting :Fanless embeddd system can be wall mount.
