Fan less embedded system comes with Intel Atom N270 processor, 120GB SATA HD, Dual LAN, Audio, 1 x Mini PCI expansion slot and 2 COM/4 USB ports. The rugged aluminum alloy chassis designed for wide range operation temperature (under freezing point), anti-vibration and 50G shock working environment.
Loading...
Fanless Embedded Box FES8916 Front View

FES8916

Fanless Embedded Box FES6841 Front View

FES6841

FES6831

  • Aluminum alloy rugged micro box
  • Fanless design embedded controller
  • Intel Atom N270 1.6GHz processor
  • 1 x Mini PCI & DVI Video input
  • Wide working temperaute from -15°C to 50°C
  • 9 ~ 30VDC power input with ATX power function
$645.00
Availability: In stock
SKU
FES6831
Email
Fan less embedded box, Atom N270 system, 120GB HD, 1GB DDRII memory, AT power & 1 x Mini PCI slot. Aluminum alloy chassis ( 9.5" x 3.4" x 4.2" ). 0 to 50 degree C working temperature.
Construction
Rugged aluminum alloy chassis
Embedded System
CPU Type: Intel Atom N270 1.6GHz Processor
Memory: DDRII SODIMM x 1, Max. 2 GB
Ethernet: 10/100/1000Base-TX Ethernet, 2 x RJ-45
Driver Bays: 2.5" SATA Hard Disk Drive
SSD: 1 x CompactFlash slot
MTBF: 60,000hrs
I/O Port
Serial port: 2 x COM
1 x RS-232, 1 x RS-232/422/485
USB: 4 x USB2.0
Audio: Line-in, Line-out, Mic-in by an extension cable
LAN: 2 x RJ-45, 10/100/1000Base-TX
VGA/Keyboard/Mouse:
1 x DVI-I+VGA,
1 x PS/2 for Keyboard & Mouse
I/O Layouts
2 x COM
2 x RJ-45
4 x USB 2.0 connector
1 x DVI-I
1 x VGA
1 x PS/2 for Keyboard & Mouse
1 x Power On/Off Switch
1 x Power input
1 x Reset button
Expansion
1 x Mini PCI
System LED Indicator
1 x Power LED
1 x HDD LED
Power Supply
1.DC Input (Default)
Internal DC-DC Converter
Input voltage: 9V DC ~30V DC
2. AC Input (Optional)
External Power 9V DC ~ 30V DC
Input voltage: 100V AC ~240V AC @50~60Hz
System Support
Windows XP pro for embedded, Windows XPE, Linux, Windows 7
Color
Dark blue
Mounting
Wall mount
Dimension
9.5"(W) x 3.4 "(H) x 4.2"(D)
Weight
4.75lb
Environmental
Operating Temperature: -15°C ~ 55 °C- 650MHz(CFD) / 0°C ~ 0 °C- 400MHz(HDD)
Humidity: 5~95% @ 40 °C, non-condensing
Vibration: 5g rms/5 ~ 500Hz/random operation (CFD) / 1g rms/5 ~ 500Hz/random operation (HDD)
Shock: 50G peak acceleration (11ms duration)(CFD)
EMC: CE/FCC

FES 6831:
Fan less embedded system, Atom N270 1.6GHz CPU, 1GB DDR-II memory, 120GB HD & 1 x Mini-PCI expansion slots. Wall mount ready.
Price:$ 645.00


Document
Description
Download Link
file iconFES_6831-data.pdf
Data Sheet

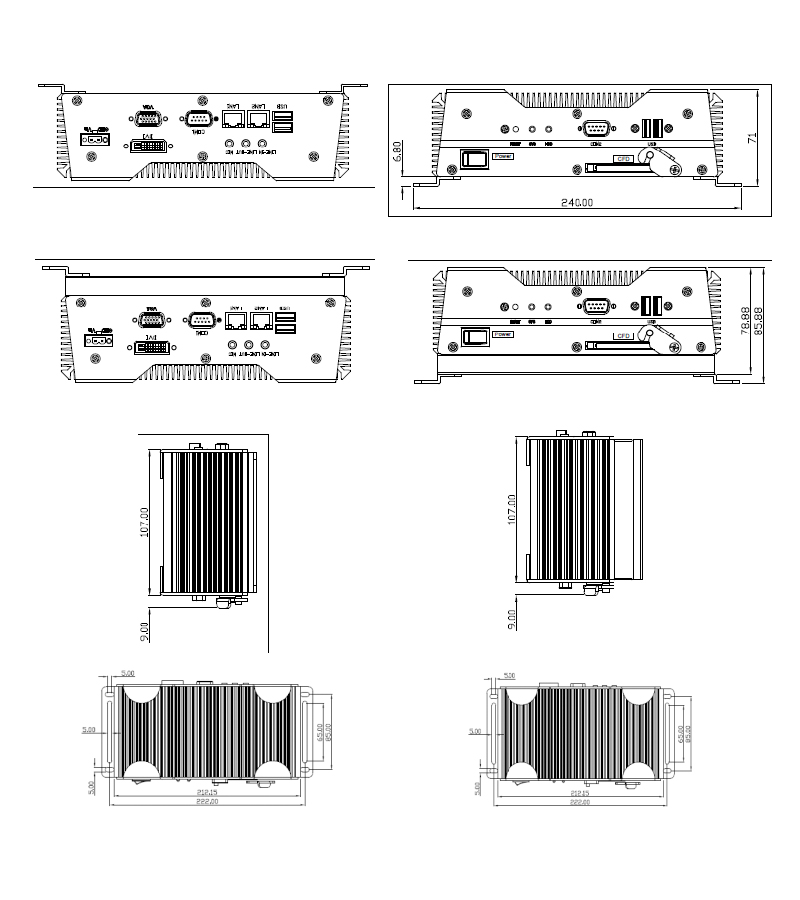

file iconFES_6831-dim.pdf
Dimension
file iconFES_6831-um.pdf
User Manual
  • FES6831
    Fan less embedded box
    Atom N270 system
    120GB HD & 1GB memory
    AT power & 1 x Mini PCI slot
    Aluminum alloy chassis (9.5" x 3.4" x 4.2")
    0 to 50 degree C working Temp
    Starting at:
    $645.00
FES6831
$645.00

Construction:
  Compacted rugged fanless micro box comes with an aluminum die-casting heat sink and a heavy-duty alloy construction. The small form factor embedded box is designed for industrial applications like POS, transportation, control, surveillance and more. It provides high reliability and noiseless performance in the harsh environment.

On Board System :
  The embedded system is powered by an Atom N270 1.6GHz processor of the operation. It comes with the features of the standard motherboard with a fanless design function. It comes with a 2.5" slim-type SATA hard drive, 2 x DDRII SODIMM memory (Max. 2 GB), watchdog timer, 4 x RS-232 ports, 4 x USB ports, Dual Gigabit LAN, Audio and VGA. The all-in-one fan less system provides wide working temperature range from 14oF to 122oF (-10oC ~ 50oC), operation vibration at 1G rms 5 to 500Hz and shock at 50G peak acceleration (11ms duration).

Storage Device :
The system comes with a standard 2.5" SATA HDD and slim-type DVD optical drive.

Expansion Slots :
We provide 2 x PCI and 2 x PCMICA expansion slots.

Power Supply :
  The fanless industrial PC uses the industry-grade Phoenix type or DC-jack power connector plug, and supports a 9VDC to 30VDC power supply with ATX power function. Optional: 100/220VAC 50/60z external AC power adapter.

Mounting :Fanless embeddd system can be wall mount.
