Industrial computer integrated Atom D525 1.8GHz CPU into a compact and rugged enclosure with 4 x open slots.
Loading...
FES5312

FES5312

FES8912 industrial PC

FES8912

FES2924

  • Aluminum alloy rugged micro box
  • Fan less embedded system
  • Atom D525 Dual-Core 1.8GHz Processor
  • Extended working temperature range from 0°C to 45°
  • VGA display port and 4 COM port
  • 2 PCI and 2 PCI express (by 1 and by 16) expansion slots
    •
  • 10 ~ 30 VDC power input
Availability: In stock
SKU
FES2924
Email
Fan less embedded computer with Atom D525 Dual-Core 1.8GHz CPU, VGA port, 4 COM port, 2 PCI and 2 PCI express (by x1 and by 16) expansion slots and 10 to 30 DC power input. has rugged aluminum chassis and extended 0 to 45 degree C working temperature.
Construction
Rugged aluminum enclosure
Embedded board
CPU Type: Atom D525 1.8GHz Dual Core fan less processor
Chip set: ICH 8-M chipset
Memory: 1 x DDR3-800 DIMM socket, Max. 4 GB
Video input
VGA video input
Drive bay
1 x 2.5 inch drive bay for SATA hard drive or SSD
1 x onboard CompactFlash socket
Front panel control
LED indicator for power and hard drive
Power on/off and system reset buttons
I/O Port (standard)
4 x COM port, 3 for RS-232, 1 for RS-232/422/485
6 x USB2.0
1 x RJ-45 Ethermnat ports, 10/100/1000Base-TX
1 x ATX power on/off switch
Power supply
Input: DC 10V ~ 30V input
Output: +5V @ 11A, +3.3V @ 5A, +12V @ 9A, -12V @ -150mA, 5Vsb @ 2A
Power adapter: AC to DC, 100~240VDC
System Support
Windows XP, Windows XP Embedded Vista
Mounting
Wall mount

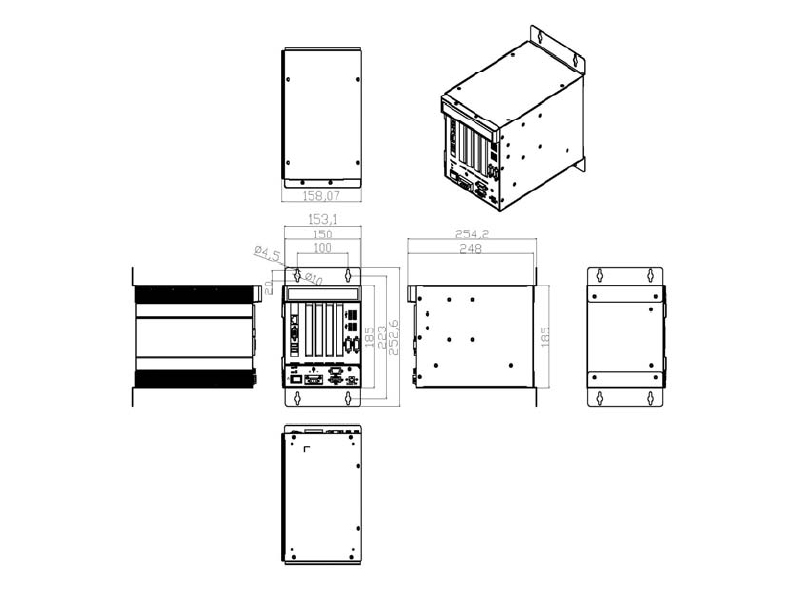

Dimension
6.2"(W) x 7.3"(H) x 9.8"(D)
Weight
8.55lb
Environmental
Temperature
Operation: 0 °C ~ 45°C
Storage: -20°C to 80 °C
Humidity: 10~90%, non-condensing
Certification
CE

FES2924:
Fan less embedded system, Atom D525 Dual Core 1.86GHz CPU, up to 4GB DDR-III memory, 2.5 inch Hard drive bay, 2 PCI slots, 1 PCIe x1 slot, 1 PCIe x16 slot, and VGA display. Wall mount ready.

Document
Description
Download Link
file iconFES2924-SP.pdf
Spec Sheet
  • FES2924
    Fan less embedded computer
    Atom D525 1.8GHz CPU
    2GB SODIM memory up to 4GB
    250GB hard drive bay
    VGA video out ports
    4 COM ports
    2 PCI express (by 1 and by 16) and 2 x PCI 32 bit expansion slots
    Integrated mounting bracket
    Steel case with aluminum heat sink
    10 to 30VDC power input with AC power adapter
    0 to 45 degree C working Temp
    Starting at:
FES2924

Four PCI slots or two PCI plus one PCIe x16 and PCIe x1 slots to satisfy expansion capability requirement for a wider range of industrial needs, .

A 4-slot open fanless industrial embedded computer is powered by low-power Intel® Atom™ processor Atom D525 1.8GHz Dual Core fan less processor and ICH 8-M chipset to To satisfy expansion capability requirement for a wider range of industrial needs. It provides four PCI slots or two PCI plus one PCIe x16 and PCIe x1 slots,

The on board memory consists of one DDR3-800 DIMM socket, and a max of 4 GB. It comes with a 2.5 inch slim-type SATA hard drive, 1 x DDRIII SODIMM memory (Max. 4 GB), watchdog timer, 4 x COM ports, 6 x USB ports, Gigabit LAN, and VGA. The fanless industrial PC uses the industry-grade Phoenix type or DC-jack power connector plug, and supports a 18VDC ~ 28VDC power supply with ATX power function. The embedded system comes with a standard 2.5 inch SATA HD and an onboard Compact Flash socket.

The FES2924 consists of a compact rugged fan less micro box with an aluminum enclosure and a heavy-duty alloy finish for strength and protection. Its small size allows itself to be kept in space constraining environments. This embedded system offers a vent less, industrial-grade fan less chassis which allows for noiseless applications and protection against harmful elements and dust. The system includes an excellent thermal construction which allows it to operate in a wide range of temperatures from 0 °C to 45°C. This embedded PC is optimal for numerous industrial applications like POS, surveillance control and transportation. Measuring at 6.2"(W) x 7.3"(H) x 9.8"(D), the FES2924 is small enough for easy storage in uneasy spaces.

The embedded computer provides standard two PCI slots, one PCI Express and one PCI Express by 16 slots for the expansion slots. The FES2924 is fully compatible with 32/64 bit versions of Window 7 / 8 and Linux.

FES2924:
Fan less embedded system, Atom D525 Dual Core 1.86GHz CPU, up to 4GB DDR-III memory, 2.5 inch Hard drive bay, 2 PCI slots, 1 PCIe x1 slot, 1 PCIe x16 slot, and VGA display. Wall mount ready.
