Fan less embedded computer box comes with i5 2520M or i7 2620M multiple core processor and 1 x PCI and PCI Express by 16 expansion slots, has rich interface ports included 4 x COM, 2 x USB ports. The aluminum and steel heat sink construction designed for industrial computer applications.

Skip to the beginning of the images gallery

RMC8408

KDW81712

FES2695

Steel and aluminum rugged micro box
Fanless design embedded computer
i5 2520M or i72620M processor
1 x PCI & 1 x PCI-Ex16 expansion slot
9~32V DC Power Input with AC power adapter
Wide working temperature from 0°C - 50°C
Din Rail Mount & panel mount ready

$1,725.00

Availability: In stock

SKU

FES2695

Fan less embedded box with Core i5 2520M or i7 2620M CPU, up to 16GB memory and 1 x PCI / PCI Express by 16 expansion slot, has 4 x COM ports and rugged steel enclosure with aluminum heat sink construction.

Specification

Material: Steel and Aluminum Heat Sink

Embedded System: CPU Type: socket G2
i7 2620M 2.7GHZ or i5 2520M 2.5GHZ processor
Chip-set: QM67 PCH
Memory: DDR3 SODIMM, default 4GB, up to 16GB
Dual 100/1000BT LAN, Audio, Video
Option for wireless LAN antenna
1 x 10-pin terminal block for 1 ground/VCC/4 in & out Digital in/Digital out port

Storage device: Driver Bays: 2 x STAT HDD on the bottom side
SSD: 1 x extrenal CF slot
Option for slim type DVD optical drive

I/O Ports: 1 x DVI / 1 x HDMI video out port
Serial port: 4 x COM
2 x RS 232 (COM 1 / 2), 1 x RS 422/485 (COM 3, default RS-485), 1 x RS 232 (COM 4)
Audio: 1 x Audio (Line-out/ Mic-in)
USB: 4 x USB2.0
LAN: 2 x RJ45
1 x DC power 3 pin terminal block connector
1 x 2 pin power switch connector
1 x Power button switch

Cooling Fan (option): 2 x 40mm system cooling fan (rear and front)

Expansion Slot: 1 x PCl-Ex16 & 1 x PCI expansion slot

Power Supply: DC Input (Default), Internal DC-DC Converter
Input voltage: 9V DC ~32V DC, with AC power adapter

System Support: Window XP Embedded, Windows Embedded Standard 7, Windows 7 Pro for Embedded

Mounting: Wall mounting
Option for Din Rail mounting

Dimension: 211.2mm x 203.5mm x 126mm
211.2mm x 203.5mm x 148mm (with DVD device)

Weight: 5.60lbs

Certification: FCC, CE Class A

Environmental: Environment Temperature
Operating: 0 to 50 degree C
Storage: -20 to 60 degrees C
Relative Humidity: 10~90% @40°C, non-condensing

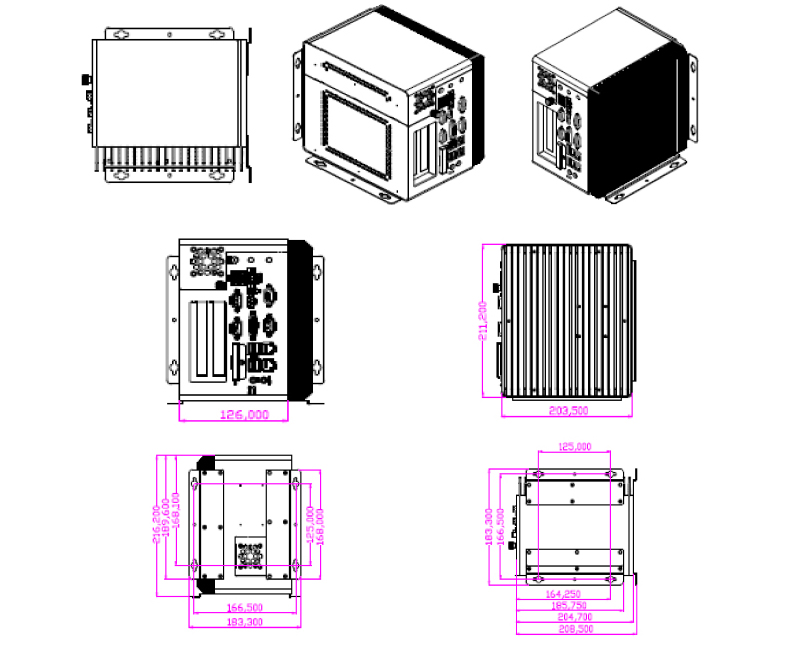

Dimensions

Order Info

FES2695:
Fan less embedded system with Core i5 2520M 2.5GHz or i7 2620M 2.7GHz CPU, 4GBMB DDR3 memory, 320GB HDD, 1 x PCI and 1 x PCl express by 16 expansion slot. Din rail mount ready.
Price:$1,725

Downloads

Document

Description

Download Link

FES2695-DATA.pdf

Data Sheet

FES2695-DIM.pdf

Dimension

Configure Now

FES2695

Fan less embedded box
Core i5 2520M 2.5GHz CPU
4GB memory
320GB hard drive
DVI-I and HDMI video out port
9 ~ 32 VDC power input with AC adapter
0 to 60 degree C working Temp
wall or DIN rail mount ready
Steel case with aluminum heat sink

Starting at:
$1,725.00

FES2695

$1,725.00

CPU

Core i5 2520M 2.5GHz

Core i7 2620M 2.7GHz + $235.00

memory

4GB memory

Hard Drive

320GB HD

Ethernet LAN

Dual 100/1000 Ethernet LAN

Video

On-board video

Operating system

No O.S.

Windows 7 Pro 32bit + $165.00

Windows XP Pro 32Bit + $265.00

Qty:

Construction
Compacted rugged fanless micro box is an alumium extrusion and constructed with a heavy-duty cold-rolled steel. The small form factor embedded system box is designed for industrial applications like POS, transportation, control, surveillance and more. It provides high reliability and noiseless performance in harsh environments.

On Board System
The embedded system is powered by an i5 2520M or i7 2620M (up to 2.7GHz) multiple core processor of the operation. It comes with the features of a standard mother board with a fanless design function. It comes with 320GB 2.5" slim-type SATA hard drive, 1 x DDRIII SODIMM memory (Max. 16 GB), watchdog timer, 3 x RS-232 ports, 1 x RS485, 4 x USB ports, dual Gigabit Ethernet LAN, Audio and VGA. The all-in-one fan less system provides wide working temperature range from -4°F to 140°F (-20°C ~ 60°C).

Storage Device
The system comes with a standard 2.5 inch SATA HDD and slim-type DVD optical drive.

Expansion Slots
Embedded computer provide 1 x PCI slot and 1 x PCl express byx 16 slot for the expansion.

Power Supply
The fanless industrial PC uses the industry-grade Phoenix type or DC-jack power connector plug, and supports a 9VDC to 32VDC power supply with ATX power function. Optional: 100/220VAC 50/60z external AC power adapter.

Mounting
Fan less embedded system can be wall mount.

References
What is an embedded computer?
An embedded system is a computer system that includes a specific function within a larger computerized system.
