Fanless Edge AI computer powered by the NVIDIA Dual Core CPU comes with LPDDR4 128-bit 8GB memory, 1 x RJ45 GigaLAN, 1 x HDMI, 2 x USB, and -20° to 70°C wide range working temperature. Option for Bluetooth and 9 to 36V DC power input.

Skip to the beginning of the images gallery

Fanless Edge AI Computer with the Intel Apollo Lake CPU

FEC8016

FES9281-CU02

FEC8018

High performance fanless Edge AI computer
NVIDIA Dual Core Denver 2 CPU
LPDDR4 128-bit 8GB memory
AI Deep Learning Accelerators
Edge AI Solution
Linux Jetpack OS
-20°C to 70°C extended working temperature

Availability: In stock

SKU

FEC8018

Edge AI computer with the NVIDIA Dual Core CPU, fanless cooling system, wide range working temperature of -20°C to 70°C, and DC power input.

Specification

Material: Heavy-duty steel

Embedded Board: CPU: Nvidia Dual Core Denver 2 64-bit quad-core ARM A57 complex
Chipset: Nvidia Pascal 256 CUDA cores
Memory: LPDDR4 128-bit 8GB
Storage: eMMC 5.1 64GB, option for 128GB
Ethernet: Gigabit LAN
Video: 1 x HDMI 2.0

WiFi: 802.11 ac WLAN
Option for bluetooth 4.1

Front Panel Control: LED indicator for power and hard drive

I/O Interface: 1 x RJ45 GigaLAN
1 x RS232
1 x RS422/485 (option)
1 x HDMI
2 x USB 2.0
1 x GPIO
1 x Power Button
1 x Phoenix Type Power Connector

OS: Linux Jetpack

Power Supply: 12V ~ 19V DC power input
Consumption: 60W
Option for 9~36V DC input

Weight: 4.41 lb / 2.0 kg

Dimension: 8.89"(W) x 6.14"(D) x 2.16"(H)

Environmental: Operating Temperature: -20°C ~ 70°C
Storage Temperature: -40°C ~ 80°C
Operating Humidity: 5 ~ 95%, non-condensing

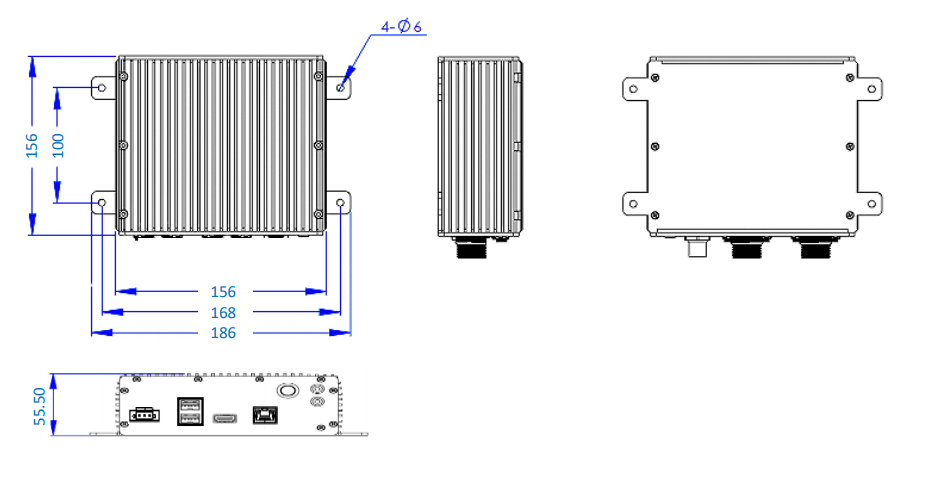

Dimensions

Order Info

FEC8018:
Fanless edge AI computer, Nvidia Dual Core CPU, LPDDR4 128-bit 8GB memory, Linux Jetpack OS, -20°C to 70°C extended working temperature, DC power input.

Downloads

Document

Description

Download Link

FEC8018- SP.pdf

Spec Sheet

Configure Now

FEC8018

Edge AI computer
ARM A57 CPU
LPDDR4 8GB memory
1 x RJ45 GigaLAN, 1 x RS232
AI Deep Learning Accelerators
Edge AI Solution
Linus Jetpack OS

Starting at:

FEC8018

CPU

ARM A57

LRDDR4 memory

8GB memory

Storage

64GB SSD

128GB SSD + $45.00

Linux Jetpack

Power Supply

12 to 19V DC input

9 to 36V DC input + $45.00

External AC power adapter + $65.00
