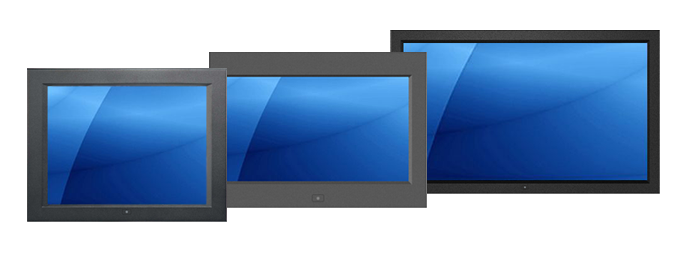

Acnodes Corporation - a leading provider of industrial computers and display solutions - introduces our 4K UHD LED industrial monitor series, APW40XX, supporting 3840 x 2160 resolution. With displays four times the resolution of a Full HD display, these monitors achieve superior picture quality with exceptional image clarity and sharpness. The 4K monitor series is ideal for a wide range of applications such as broadcasting, command centers, kiosks, and surveillance systems.

The APW40XX series is available in screen sizes ranging from 13.3-inches to 55-inches and supports DP 1.2 + HDMI 1.4 + HDMI 2.0 video input along with the option for 3G/HD/SD-SDI input. The rear panel comes with a power on/off switch and an OSD membrane switch. The OSD allows users to adjust the monitor for brightness, contrast, phase & clock, color, H & V position, and auto-tune. Option is available for an MCS multi-display OSD menu controller. In addition, these 4K monitors provide a variety of embedded modules; HDMI Decoder, HDMI Receiver, HDMI Quad Display, and Portrait Mode, for video remote management and support of multiple screens over a network. For users requiring interactive applications, optional Resistive, Projected Capacitive, or Infrared type touch screens are available as well.

The panel housing of the monitors comes with a 6mm or 8mm aluminum front bezel with a short-depth metal rugged chassis. Option for an IP65 / NEMA4 rated front bezel is available for industries requiring additional protection. These industrial monitors provide panel or VESA mounts for easy mounting and installation and operate in temperatures from 0°C to 55°C, making them ideal for industrial applications and control room projects.

APW40XX 4K UHD Industrial Monitors:
APW4013: Panel mount monitor with a 13.3" 3840 x 2160 4K LED-backlit LCD monitor, DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, panel or VESA mount, and an aluminum front bezel. Option for Resistive or Projected Capacitive type touch screen, SDI input, quad display module, and DC power supply.

APW4015: Panel mount monitor with a 15.6 inch 3840 x 2160 4K LED backlight LCD panel, DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, aluminum front bezel, and panel or VESA mount. Option for IP65 rated front bezel, Resistive or Projected Capacitive type touch screen, 3G/HD/SD-SDI input, and DC power supply.

APW4017: Panel mount monitor with a 17.3 inch 3840 x 2160 4K LED backlight LCD panel, DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, aluminum front bezel, and panel or VESA mount. Option for IP65 rated front bezel, Resistive or Projected Capacitive type touch screen, 3G/HD/SD-SDI input, and DC power supply.

APW4023: Panel mount monitor comes with a 23 inch 3840 x 2160 4K LED-LCD monitor, aluminum front bezel, DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, and panel / VESA mount. Option for touch screen, IP65 rated front bezel, quad display module, and DC power supply.

APW4028: Panel mount monitor with a 28 inch 3840 x 2160 4K LED backlight LCD panel, DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, aluminum front bezel, and panel or VESA mount. Option for IP65 rated front bezel, 3G/HD/SD-SDI input, quad display module, and DC power supply.

APW4032: Panel mount monitor with a 31.5 inch 3840 x 2160 4K LED backlight LCD panel, DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, aluminum front bezel, and panel or VESA mount. Option for IP65 rated front bezel, Infrared or Projected Capacitive type touch screen, 3G/HD/SD-SDI input, quad display module, and DC power supply.

APW4043: Panel mount monitor with a 43 inch 3840 x 2160 4K LED backlight LCD panel, DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, aluminum front bezel, and panel or VESA mount. Option for IP65 rated front bezel, Infrared 10-point type touch screen, 3G/HD/SD-SDI input, quad display module, and DC power supply.

APW4055: Panel mount monitor with a 55 inch 3840 x 2160 4K LED backlight LCD panel, DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, aluminum front bezel, and panel or VESA mount. Option for IP65 rated front bezel, Infrared 10-point type touch screen, 3G/HD/SD-SDI input, quad display module, and DC power supply.

Acnodes Corporation has a wide array of product line configurations. They can customize most commercial and industrial computers to one’s specific needs.  For information, please visit  www.acnodes.com or contact us at [email protected].

About Acnodes Corporation

Acnodes manufactures, designs, and markets industrial computers and display solutions for diverse industries ranging from automation to military.  We have an array of technological innovations in the area of rack mount servers, embedded computers, Panel PC’s and rugged monitors that create simpler and more valuable products to the customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Acnodes strives to explore new technologies to better improve life and work.
