Acnodes Corporation - a leading provider of industrial computers and display solutions - presents the RPH11XX series, a high brightness rackmount LCD monitor drawer designed for outdoor and indoor industrial applications. These units feature VGA + DVI-D video input and a 1000-nit high brightness sunlight-readable display that lets the LCD function in over a wide range of illuminance levels. The RPH11XX units are constructed of heavy-duty steel and feature a short depth chassis design for industrial applications with space constraints. These monitors are highly customizable and come with optional features such as a touch screen monitor and DC power supply.

The monitors come in sizes ranging from 17 inches to 19 inches and are integrated into a 1U high short-depth rackmount drawer. The LCD supports a 1280 x 1024 / 1920 x 1080 / 1440 x 900 resolution, 1000-nit high brightness display, and 16.7 million colors. The monitors integrate an OSD function that lets users adjust the monitor for contrast, balance, H-position, V-position, phase, and brightness. All the OSD buttons and power on/off switch are located on the front of the monitor for easy access and adjustment. The drawer comes with solid-bearing slide rails and a molded front panel for enhanced aesthetics. Moreover, the rackmount drawer is designed with a two-point locking mechanism for security systems. RPH11XX units come standard with VGA + DVI-D video inputs and offer options for HDMI / BNC / S-Video / 3G-SD-SDI.

RPH11XX 1U High Brightness Rackmount LCD Monitor Drawers:

RPH1170 - 17” 1280 x 1024 Rackmount LCD Monitor
A 17 inch 1280 x 1024 LCD monitor integrated into a 1U high 18.9-inch depth rackmount drawer. The LCD supports a 1000-nit high brightness display, 16.7 million colors, 1000:1 contrast ratio, and comes with a viewing angle of 170°(H) x 160°(V). The unit weights at 23.1 lb and has a dimension of 17.4" (W) x 18.9" (D) x 1.73" (H).

RPH1173 - 17.3” 1920 x 1080 Full HD Rackmount LCD Monitor
A 17.3 inch 1920 x 1080 Full HD LCD monitor integrated into a 1U high 18.9-inch depth rackmount drawer. The LCD supports a 1000-nit high brightness display, 16.7 million colors, 600:1 contrast ratio, and comes with a viewing angle of 160°(V) x 160°(H). The unit weights at 24.2 lb and has a dimension of 17.4" (W) x 18.9" (D) x 1.73" (H).

RPH1190 - 19” 1280 x 1024 Rackmount LCD Monitor
A 19 inch 1280 x 1024 LCD monitor integrated into a 1U high 19.7-inch depth rackmount drawer. The LCD supports a 1000-nit high brightness display, 16.7 million colors, 1000:1 contrast ratio, and comes with a viewing angle of 170°(H) x 160°(V). The unit weights at 27.5 lb and has a dimension of 17.4" (W) x 19.7" (D) x 1.73" (H).

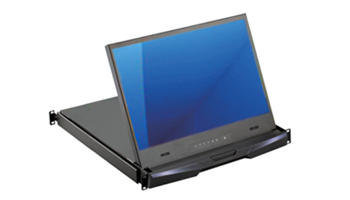

RPH1193 - 19” 1440 x 900 Widescreen Rackmount LCD Monitor
A 19 inch 1440 x 900 widescreen LCD monitor integrated into a 1U high 18.1-inch depth rackmount drawer. The LCD supports a 1000-nit high brightness display, 16.7 million colors, 1000:1 contrast ratio, and comes with a viewing angle of 160°(V) x 160°(H). The unit weighs at 28.5 lb and has a dimension of 17.4" (W) x 18.1" (D) x 1.73" (H).

Key Features of RPH11XX Units:
• Short-depth rackmount drawer
• High brightness sunlight-readable display
• VGA + DVI-D video input
• One man installation design
• Solid bearing slide rails
• Installation slides for easy installation
• Molded front panel and two-point lock

Acnodes Corporation has a wide array of product line configurations. They can customize most commercial and industrial computers to one’s specific needs. For information, please visit www.acnodes.com or contact us at [email protected].

About Acnodes Corporation

Acnodes supplies and markets industrial computers and display solutions for diverse industries ranging from automation to the military. They have an array of technological innovations in the area of rackmount servers, embedded computers, Panel PC's, and rugged monitors that created more simple and valuable products to the customers. Acnodes works closely with their clients to customize computer products to meet required projects and specifications. Acnodes strives to explore new technologies to better improve life and work.
