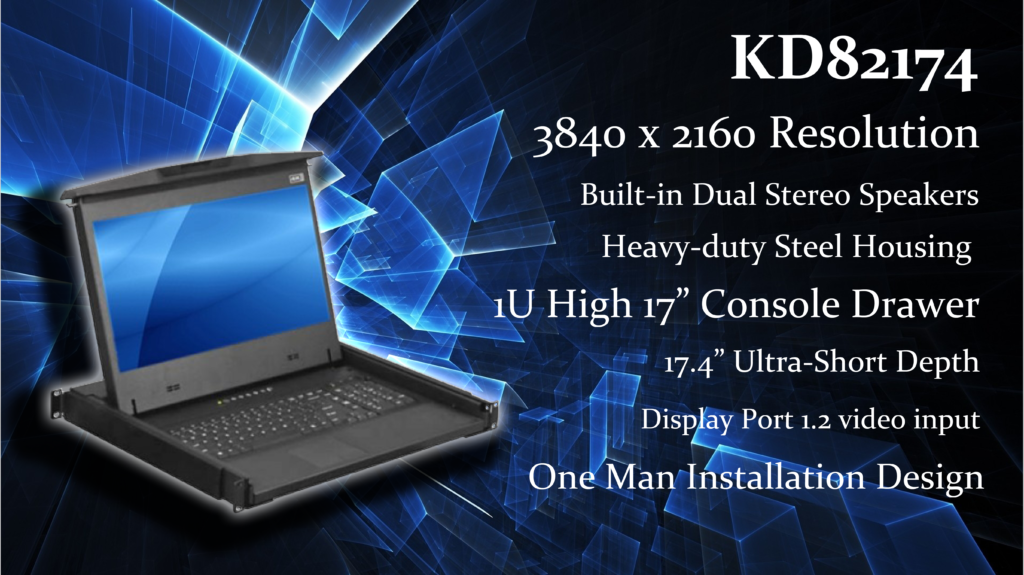

Acnodes - a leading provider of industrial computers and display solutions - introduces KD82174, a 1U 17.3” 4K rack console drawer with 3840 x 2160 native resolution. KD82174 provides display port 1.2 with Drawer End: DB-15 (USB KB / MS) and Server End: USB type A. It also supports options for 3G, HD, SD-SDI broadcast-grade, and HDMI 2.0 video inputs / HDCP 2.2. Moreover, KD82174 comes with auto-sensing 100 to 240VAC, 50/60Hz power adapter.
First of all, KD82174 features a 1U high 17” 4K Ultra HD LCD display panel. Next, KD82174 also offers a wide range of resolution supports in 1920 x 1080 & 1920 x 1200. Furthermore, KD82174 provides a brightness of 400 cd/m^2 and a contrast ratio of 1000:1. This 4K ultra HD console drawer gives a viewing angle of 89/89/89/89 (L/R/U/D) plus it is active are 382.12H x 214.94V (mm). In addition, KD82174 also offers 16.7M of colors with LED backlight. KD82174 also provides the heavy-duty steel housing material with 20,000 hrs for mean time between failures (MTBF).
KD82174 comes with DP, USB KB, and MS video inputs and built-in dual stereo speakers. The monitor also features a one-man installation design, which allows for convenient and easy installation. There are also optional features to add on based on customers’’ requirements. Such as resistive 1-pt touchscreen or HDMI, SD-SDI broadcast-grade, 3G, or HDCP 2.2 for video input. In addition, KD82174 offers 104-keyboard with either touchpad or trackball as well.
KD82174 comes with auto-sensing 100 to 240VAC, 50/60Hz power adapter with consumption of Max. 29W / 38W (console / KVM). KD82174 also offers options in DC power 12V / 24V / 48V / 125V. On the other hand, KD82174 operates temperature ranging from 0 to 50°C degree. Next, this console stores temperature from -20 to 60°C degree with relative humidity 5~90% non-condensing. Furthermore, KD82174 provides 10G acceleration (11 ms duration) in shock and 10~300Hz 0.5G RMS random vibration. Additionally, KD82174 is FCC & CE, CE . LVD, RoHS2 & REACH compliant.
Acnodes Corporation has a wide array of product line configurations. They can customize most commercial and industrial computers to one’s specific needs. For information, please visit www.acnodes.com or contact us at [email protected].
Acnodes Corporation markets, sells, and manufactures industrial computers and display solutions for diverse industries that range from military to automation. They furnish efficient and valuable products for all their customers. They have a great deal of technological innovations in the form of rugged monitors, embedded computer, Panel PCs, and rack mount servers. Acnodes Corporation aims to meet their clients’ needs with the most cutting-edge technology and solutions.
