Acnodes Corporations, a leading manufacturer of industrial and embedded computer platforms and technologies, introduced today the launch of KD8173T, a triple LCD panel rack console. Each LCD panel features a 17.3” display with resolution of 1920 x 1080 offering a maximum resolution of 5760 x 1080 combined. Other features include rugged aluminum housing with key lock mechanism, three connectors for each panel including display port, HDMI, or DVI video input, and keyboard with touch pad.

The 2U high rack console exhibits a triple screen set up, with a keyboard with touch pad through USB. The size of each panel is 17.3 inch with 300 nit brightness, 400:1 contrast ratio, 262K color, 8ms response, and LED backlight. The primary video input is for the display port, and the second and third port can be a combination of HDMI, DVI, or display port. With HDMI option it can connector with the amplified stereo speakers.

The aluminum housing has a dual rail design. A key locking mechanism locks the drawer when it is in the full recess position. The durable housing provides exterior protection while the system provides interior protection. In the operating environment, the temperature can withstand from 0C to 50C, the humidity can tolerate from 5~95%, non-condensing, 15,000 feet altitude, the shock resists at 15g, 11ms, and vibration at 20~60GHZ, 0.075mm. In the storage environment, the temperature can withstand from -20C to 50C, humidity tolerates at 5~95%, non-condensing, 40,000 feet altitude, the shock can resist at 50g, 11ms, and vibration at 10~50GHz, 0.15mm. The drop can handle from 3 feet heights free drop in both environments.

The dimension is 19” (W) x 3.5” (H) x 23.1” (D), but room for bracket can extend the adjustable depth to 35.6”. The weight is 39 lbs. The power supply is of wide range 100V~240V AC power input.

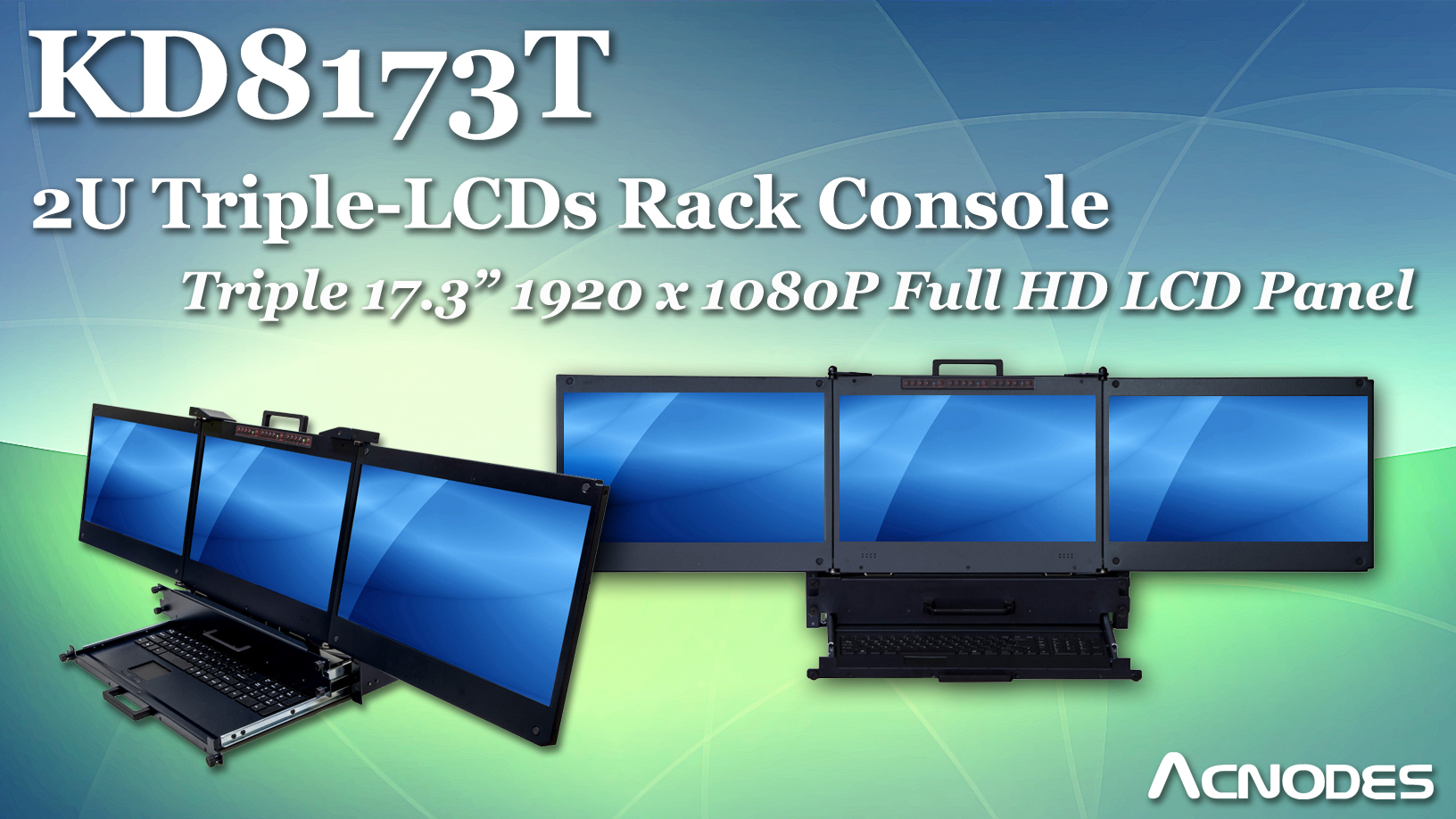

[caption id="attachment_4030" align="alignleft" width="1632"]kd8173t-pr Rack console with triple LCD display panel[/caption]



KD8173T: Acnodes 2U triple-LCDs rack console, triple 17.3” 5760 x 1080 full HD monitors, keyboard and touch pad with USB connector, Display Port / HDMI / DVI video input, 100~240V AC power input.

For a full series of Rackmount Monitor Keyboard Drawer from Acnodes, please visit
• 17” Monitor Keyboard Drawer – 1U high rack console integrated 17” industrial LCD and keyboard with touchpad
• 19” Monitor Keyboard Drawer –  1U high rack console integrated 19” industrial LCD and keyboard with touchpad
• 20” Monitor Keyboard Drawer – 1U or 2U high rack console integrated 20” industrial LCD and keyboard with touchpad
• Short Depth Monitor Keyboard Drawer – Rack console integrated industrial LCD and keyboard with touchpad in 1U short depth rack drawer
• Dual Slide Rail Monitor Keyboard Drawer – LCD keyboard drawer with dual rail design allows keyboard & LCD drawers to slide out independently
• Monitor Keyboard Drawer with KVM Switch – 1U rack console integrated industrial LCD, keyboard, touchpad, and 8-port KVM switch
• Monitor Keyboard Drawer with DVI KVM Switch – 1U rack console integrated industrial LCD, keyboard, touchpad, and 12-port DVI KVM switch
• Monitor Keyboard Drawer with USB Hub KVM Switch – 1U rack console integrated LCD, keyboard, touchpad, and 8/16 ports USB hub KVM switch
• Monitor Keyboard Drawer with Cat6 KVM Switch – 1U rack console integrated LCD, keyboard, touchpad, and 8/16/32 ports Cat6 KVM switch
• Monitor Keyboard Drawer with Matrix KVM Switch – 1U rack console integrated LCD, keyboard, touchpad, and 8/16 ports Matrix KVM switch
• SUN Native Resolution Monitor Keyboard Drawer  – LCD keyboard drawer that monitor support 1152 x 900 display resolution.
• High Brightness Monitor Keyboard Drawer – 1U rack console integrated sunlight-readable LCD and keyboard with touchpad

Our product line’s configurations are located on www.acnodes.com. However, most of the commercial and industrial computers can be custom built to customers’ preference. Contact us via email at [email protected] or telephone (1-909-597-7588) for more information.

About Acnodes Corporations

Acnodes manufactures, designs, and markets industrial computers and displays for diverse industries ranging from automation to military. We have an array of technological innovations in the area of rackmount servers, embedded computers, Panel PC’s and rugged monitors that create simpler and more valuable products to customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Acnodes strive to explore new technologies to better improve life and work.
