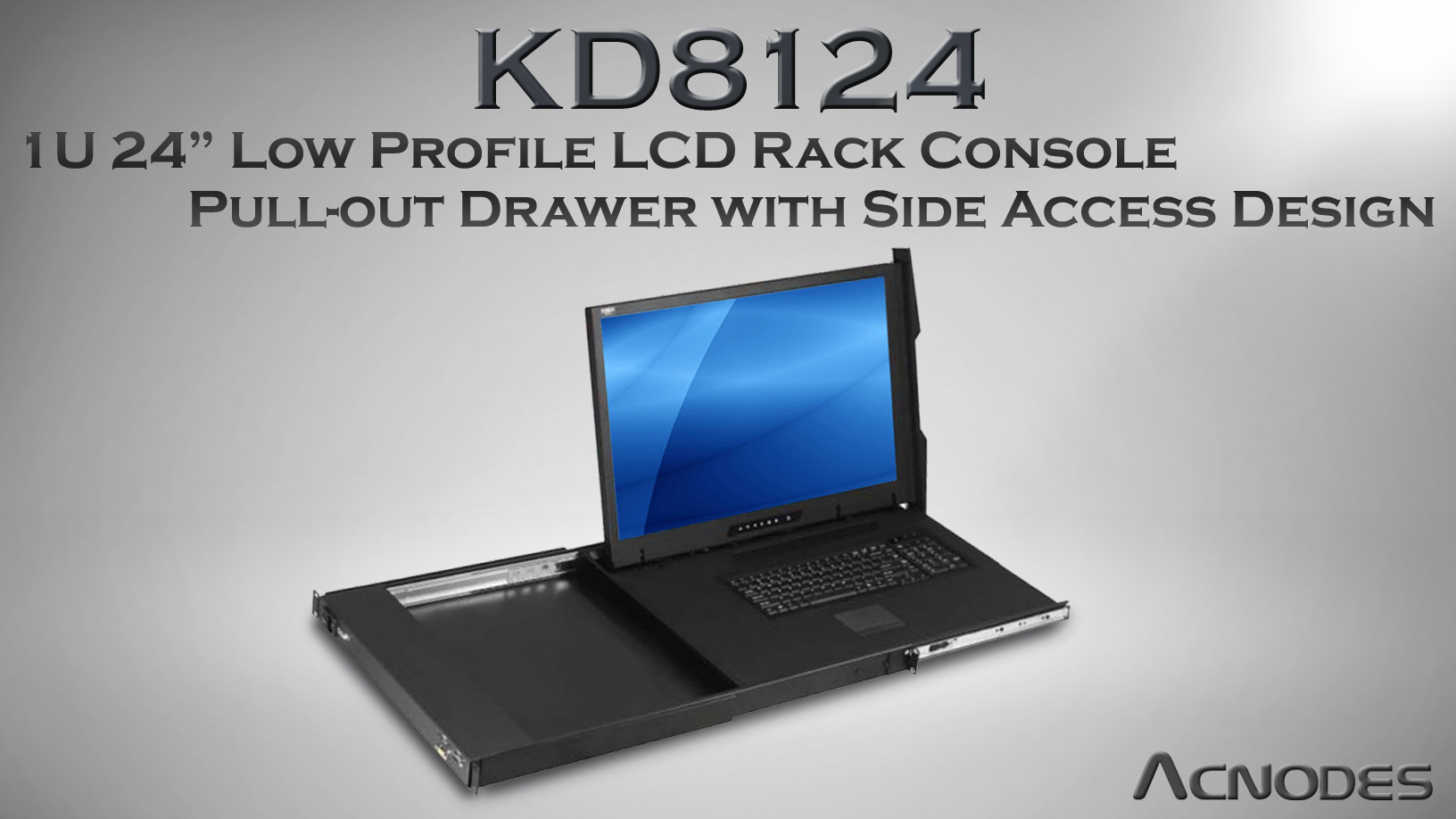

Acnodes Corporations, a leading manufacturer of industrial and embedded computer platforms and technologies, introduced today the launch of KD8124, a 24 inch LCD console drawer. The 1U high console drawer displays a 24 inch widescreen supporting 1920 x 1200 native WUXGA ultra high resolution. The display also offers PIP and Picture by Picture viewing efficiency. The drawer is side accessible design, which can slide out from either left or right side. The 104-keys keyboard comes with either touchpad or trackball. The SUN Micro or MAC keyboard options are also available. The new enhanced aesthetics is the molded front handle. The front USB port is for device access and it is only for USB Hub KVM.

KD8124 displays a 24.1” widescreen TFT LCD panel of 1920 x 1200 display resolution. The brightness is 300 with 16.7 M colors. The contrast ratio is 1000:1 and LED backlight. The mean time between failure (MTBF) is 30,000 hours. The video input supports standard DVI-D with option for HDMI with bundle speaker x 2. If opted for the speaker, it is a built-in Dual Stereo with 2W X 2. An optional feature for 3G/ HD/ SD-SDI Broadcast-grade input with speaker is available.

The black LCD console drawer can tolerate operating temperature from 0°C to 55°C and storage temperature at -20°C to 60°C. The operating humidity can withstand at 20~90%, non-condensing and storage humidity at 5~90%, non-condensing. Its operating altitude is 16,000 feet and non-operating altitude is 40,000 feet. The shock resistance is at 10G acceleration (11ms duration) and vibration resistance is at 5~500Hz 1G RMS random vibration. The power input is auto-sensing 100 to 240VAC, 50/60Hz with optional DC power at 12V/ 24V/ 48V/ 110~125V.

KD8124 measures at 17.4 x 27.6 x 1.73 inch and weights at 33.7 lbs. The console cables contain 6 feet DVI-D of DVI-D plus USB server end and DVI-D.

kd8124

KD8124: Acnodes 1U LCD console drawer with 24.1” industrial LCD panel that supports 1920 x 1200 high resolutions, pull-out drawer with left / right side access, keyboard and touch pad with USB connector, DVI-D video input, AC power input. Option for trackball, HDMI, 3G / HD / SD-SDI, and 12 / 24 / 48 / 110 / 125V DC power input.

For a full series of Rackmount Monitor Keyboard Drawer from Acnodes, please visit
• 17” Monitor Keyboard Drawer – 1U high rack console integrated 17” industrial LCD and keyboard with touchpad
• 19” Monitor Keyboard Drawer –  1U high rack console integrated 19” industrial LCD and keyboard with touchpad
• 20” Monitor Keyboard Drawer – 1U or 2U high rack console integrated 20” industrial LCD and keyboard with touchpad
• Short Depth Monitor Keyboard Drawer – Rack console integrated industrial LCD and keyboard with touchpad in 1U short depth rack drawer
• Dual Slide Rail Monitor Keyboard Drawer – LCD keyboard drawer with dual rail design allows keyboard & LCD drawers to slide out independently
• Monitor Keyboard Drawer with KVM Switch – 1U rack console integrated industrial LCD, keyboard, touchpad, and 8-port KVM switch
• Monitor Keyboard Drawer with DVI KVM Switch – 1U rack console integrated industrial LCD, keyboard, touchpad, and 12-port DVI KVM switch
• Monitor Keyboard Drawer with USB Hub KVM Switch – 1U rack console integrated LCD, keyboard, touchpad, and 8/16 ports USB hub KVM switch
• Monitor Keyboard Drawer with Cat6 KVM Switch – 1U rack console integrated LCD, keyboard, touchpad, and 8/16/32 ports Cat6 KVM switch
• Monitor Keyboard Drawer with Matrix KVM Switch – 1U rack console integrated LCD, keyboard, touchpad, and 8/16 ports Matrix KVM switch
• SUN Native Resolution Monitor Keyboard Drawer  – LCD keyboard drawer that monitor support 1152 x 900 display resolution.
• High Brightness Monitor Keyboard Drawer – 1U rack console integrated sunlight-readable LCD and keyboard with touchpad

Our product line’s configurations are located on www.acnodes.com. However, most of the commercial and industrial computers can be custom built to customers’ preference. Contact us via email at [email protected] or telephone (1-909-597-7588) for more information.
