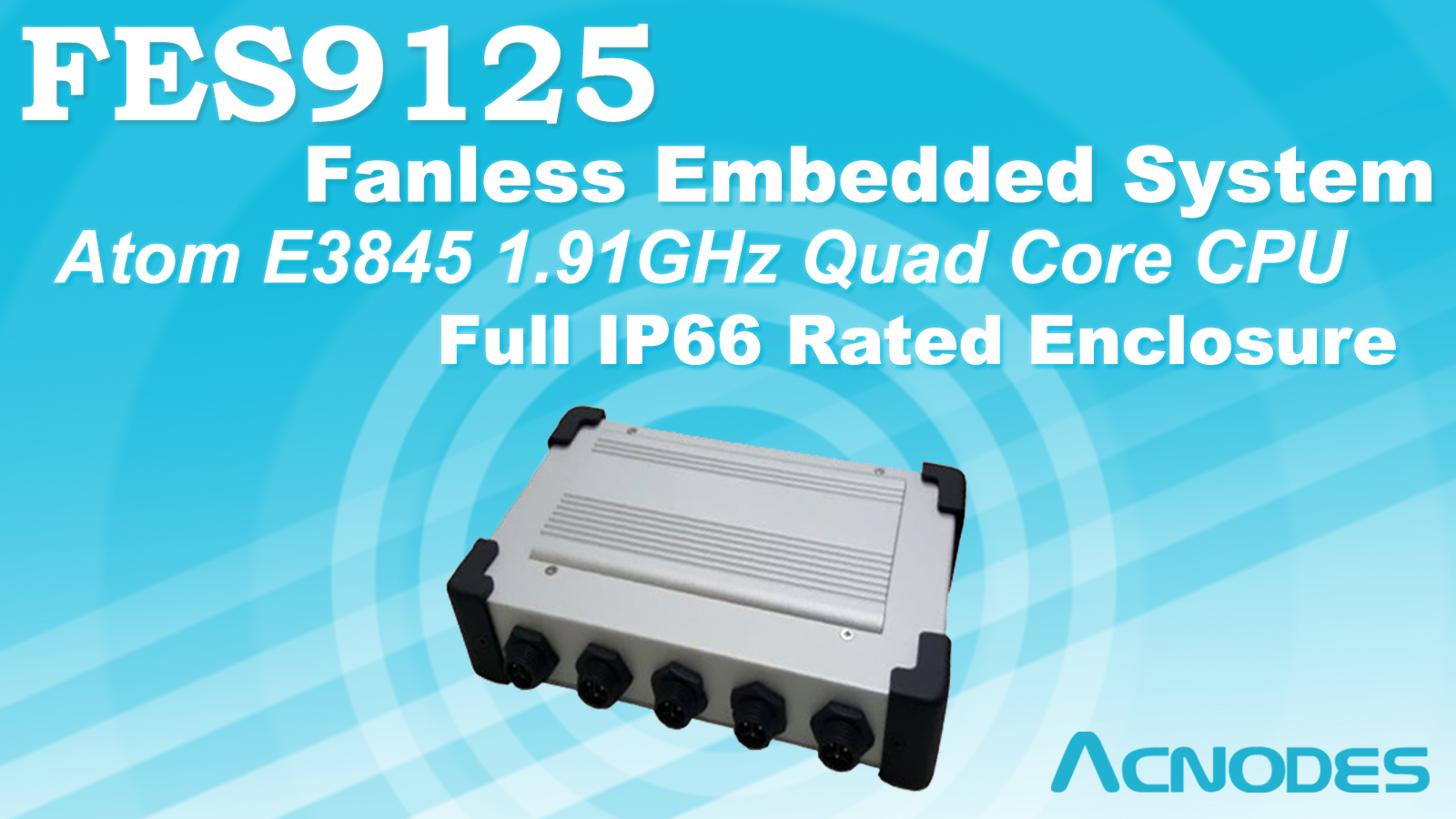

Acnodes Corporations, a leading manufacturer of industrial and embedded computer platforms and technologies, announced today the launch of FES9125. A fanless embedded system with Atom E3845 1.91GHz Quad Core Processor in fully IP66 rated enclosure. This rugged micro box has extended working temperatures, VGA port, LAN, USB, COM ports, built-in 802.11 b/g/n wireless LAN, and wide range 8~35V DC power input. On the exterior is anti-vibration, anti-shock, anti-collision, and anti-corrosion providing complete protection.

FES9125 embedded board is built of Atom E3845 1.91GHz Quad Core CPU, SoC Integrated with HD graphics chipset, 4GB DDR3L 1066MHz memory, one full size mSATA 32GB SSD storage, Dual Intel 120 GbE controller Ethernet, and AMI 16Mbit Flash BIOS. The front and back I/O ports are sealed by IP66 connectors. The front I/O ports include 10/100 Ethernet port, two CanBus 2.0, four isolated Digital Input, four isolated Digital Output, and a wireless antenna. The back I/O port includes two RS-232 or RS-422/485, USB 2.0, VGA output, and 8~35V DC power input.

The compact and lightweight microbox is measured at 8.66”(W) x 1.98”(H) x 6.80”(D) and 5.5 lbs. The embedded system can be mounted using wall mount with option for Din Rail mounting. The operating temperature withstands at -25°C~70°C and storage temperature at -40°C~85°C. The anti-collision has 4-corner bumper protection and anti-corrosion is of anodized and deactivated surface coating. The vibration resists at 5Hz~500Hz and shock at 50G, 11 ms duration.

FES9125-PR





FES9125: Acnodes  Embedded PC with Atom Dual Core E3845 1.91GHz Dual Core CPU, fanless industrial design, configurations with up to 8GB DDR3 memory, 1 x Ethernet, 2 x Serial, 1 x USB, VGA video output, 8-35V DC power input.

A full listing of Fanless Embedded Computers from Acnodes:

  • Fanless Embedded PC– Embedded computer with low power consumption processor within a rugged compact enclosure
  • Mini NUC Embedded PC – Embedded computer utilizes a compact rugged NUC form factor enclosure with high performance processor
  • Embedded PC with Expansion Slots – Embedded computer with PCI/PCIe high-speed expansion slots in a compact enclosure
  • Wide Working Temperature Embedded PC – Embedded computer with aluminum heat sink and heavy duty steel frame allow unit work under a wide range working temperature in a harsh working environment.

Our product line configurations are illustrated on our website at Acnodes.com. However, most of the commercial and industrial computers are custom built to customer’s exact requirements. Contact us via email: [email protected] or telephone (1-909-597-7588) for more information.
