Presenting with VGA and DVI-D, VESA mount ready, anti-vibration, anti-shock, and many options to customize desired open frame monitor

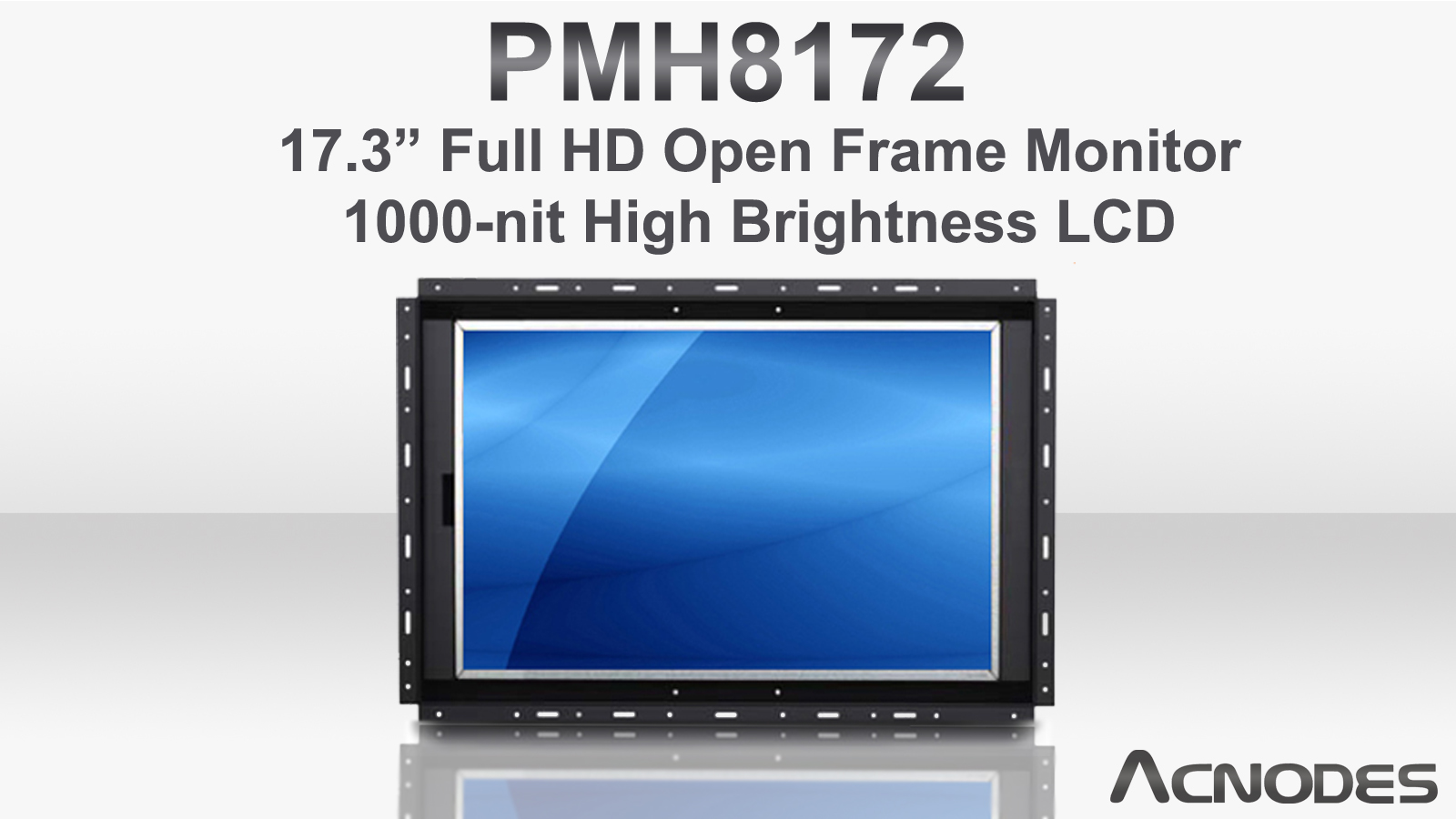

Acnodes Corporation, a leading manufacturer of industrial monitors and embedded computer platforms and technologies, announced today the launch of PMH8172. PMH8172 is a 17.3” open frame monitor with 1920 x 1080 LED resolution, 1000 nits brightness, VGA + DVI-D video input, VESA mount ready, and with many optional features to add on.

The heavy-duty steel built protects the open frame construction, with anti-shock and anti-vibration features. The operating temperature can withstand at 0°C to 55°C with storage temperature at -20°C to 60°C. The operating altitude is at 16,000 feet and non-operating altitude at 40,000 feet. Besides the durable exterior, the interior is also worth mentioning.

The 17.3 inch monitor projects a resolution of 1920 x 1080 with 1000-nits brightness. The contrast ratio is 600:1 with 16.7 million colors, and 50,000 MTBF. The video input is VGA and DVI-D with option for HDMI + S-video + composite (BNC) or audio input, 3G / HD / SD-SDI broad-cast grade input with speaker.  The option for touch screen would be resistive or capacitive type. The connectors include one each VGA and DVI-D port. The mounting type is universal mount of VESA mount.

The power supply consists of external auto-sensing 100 to 240VAC, 50/60Hz power adapter with option for 24/48/110/125VDC power supply. The rear panel control consists of the power on/off switch and OSD membrane switch. The weight of the unit is 13.6 lb and measures at 18.3"(W) x 112.9”(H) x 2"(D).

PMH8172
PMH8172: Acnodes 17.3” open frame monitor supports 1920 x 1080 full HD resolutions, 1000 nits high brightness, VGA + DVI-D video input, 100-240V AC power adapter. Option for touch screen monitor, MCS control, 24/48/110/125V DC power input, auto/switch dimming, HDMI + S-Video + BNC or audio input, and 3G/HD/SD-SDI broadcast-grade video input.

For a full series of Panel Monitor from Acnodes, please visit

  • Open Frame Monitor – Panel mount monitor integrated the LCD panel into a open front face monitor enclosure
    • High Brightness Open Frame Monitor – Open frame industrial LCD monitor designed for outdoor sunlight readable display application.
    • Wide Screen Open Frame Monitor – Panel mount monitor integrated the wide screen LCD panel (17-inch to 55-inch) into a front open face housing.
    • Wide Working Temperature Open Frame Monitor – The PM-S line is distinguished by its ability to operate efficiently in harsh environmental conditions.
    • Panel Mount Monitor – Panel mount monitor integrated LCD panel into a open frame construction with a rugged aluminum front bezel
    • HMI Touch Screen Panel Monitor – 7-inch to 21.5-inch HMI touch screen panel with flat panel design, IP65 rated front bezel and dis-casting aluminum rear enclosure.
    • High Brightness Panel Mount Monitor – Industrial Panel mount LCD monitor designed for outdoor sunlight readable application
    • Wide Screen Panel Mount Monitor – Industrial 17-inch to 55-inch wide screen LCD monitors supported full HD display resolution
    • Stainless Steel Industry Monitor – Industrial 15-inch to 55-inch LCD monitors with IP65 rated rugged stainless steel enclosure.

Our product line configurations are illustrated on our website at Acnodes.com. However, most of the commercial and industrial computers are custom built to customer’s exact requirements. Contact us via email: [email protected] or telephone (1-909-597-7588) for more information.
