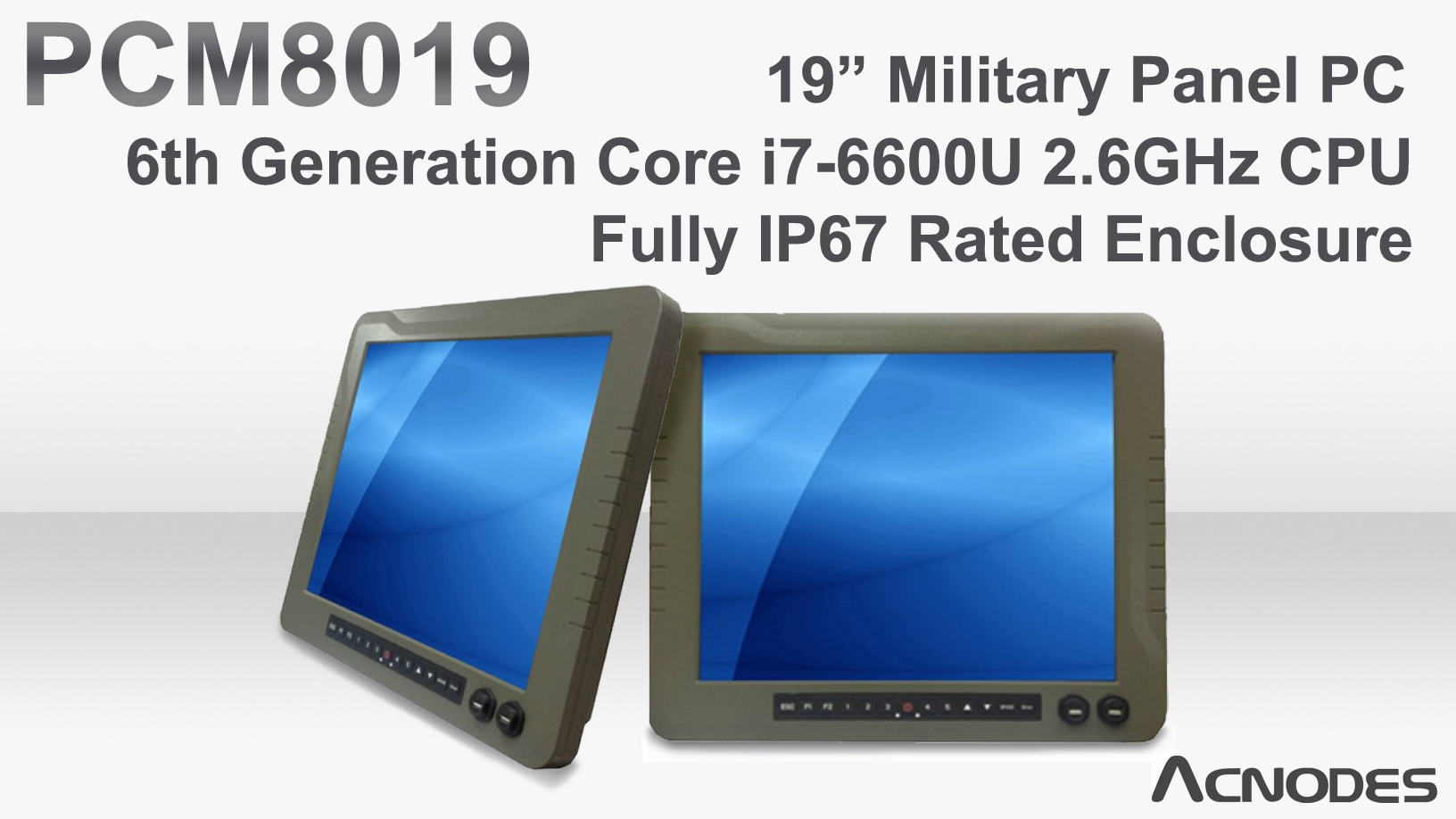

PCM8019 presented with 1280 x 1024 1000-nits brightness LED backlight monitor, programmable key pad located in the front for easy accessibility when setting the key pad menu, and MIL-STD-810G compliant to endure rough environments.

Acnodes Corporation, a leading manufacturer of industrial and embedded computer platforms and technologies, announced today the launch of PCM8019, a 19” military grade panel PC with 6th Generation Core i7-6600U 2.6GHz CPU.  The fully IP67 rated enclosure supports MIL-STD-810G in shock, vibration, low, and high temperatures. The programmable key pad located in the front provides accessibility when setting the key pad menu. The LCD panel displays 1280 x 1024 resolutions with 1000-nits brightness and 1000:1 contrast ratio. It supports one LAN, two COM, and VGA video input. Along with the resilient exterior, the interior system is to match the high quality of the panel PC.

Built with a fully IP67 rated rugged enclosure, PCM8019 compacts durability in harsh environments due to the MIL-STD-810G qualification on vibration, shock, humidity, high, and low temperature. It can combat the rough settings it’s needed to be endured in. The dimension measures at 19.29"(W) x 2.85"(D) x 16.54"(H) and weighs 24.25 lbs. The operating temperature withstand from -20 to 60 degree C and storage temperature from -20 to 60 degree C.

Along with the reliable exterior, the interior is always up to par. With 19 inch panel, it displays 1920 x 1024, 1000-nits brightness, and 1000:1 contrast ratio. The backlight is of LED and has 16.7M colors. It has an optional feature of 5-wire resistive type touch screen. The CPU operates on 6th Generation Core i7-6600U 2.6GHz with memory slot of DDR3L 1600MHz 8GB, and SoC Integrated chipset.

The supported video output is VGA. The drive bay contains 2.5” SSD in hot swappable array and mSATA SSD 64GB for system boot. The optional feature of full size miniPCIe for wireless car IEEE802.11 a/b/g/n 2x2 dual band is available. The power supply consists of wide range 110-240V AC power input with option for 9~36V isolated DC input. The connectors include 2 x COM ports (1 for RS-232, 1 for RS-422), 2 x Front side IP67 Type A USB 2.0 (Optional), 1 x Ethernet port, 1 x VGA video out port, and 1 x AC input.

PCM8019-PR

PCM8019: Acnodes 19” Military Grade Panel PC with 6th Generation Core i7-6600U 2.6GHz, Fully IP67 rugged enclosure, configurations with 8GB DDR3L memory, 1 x Ethernet, 2 x Serial, 1 x VGA, 110~240V AC power.

Look inside to discover full range of Panel PCs from Acnodes

  • Fanless Panel PC – 7” to 21.5” Panel PCs with fanless cooling system
    •Fanless Panel PC with Extended Temp Range - Panel PCs with extended operating temperature
    •Panel PC with Expansion Slots – Panel PCs with PCI or PCI Express expansion slots
    •Medical Grade Panel PC – Panel PCs with anti-bacteria coating, water/dust proof slim casing
    •Open Frame Panel PC – Panel PCs with rugged metal open frame housing for wall or VESA mounting
    •Rugged Industrial and Military Panel PC - Panel PCs that meet MIL-810G-STD testing standard for industrial and military computing applications.
    •HMI Panel PC – Panel PCs designed for seamless interaction between humans and machines.
    •Stainless Steel Panel PC  – Panel PCs with IP protection enclosure to cope industrial applications with harsh environmental conditions

Our product line configurations are illustrated on our website at Acnodes.com. However, most of the commercial and industrial computers are custom built to customer’s exact requirements. Contact us via email: [email protected] or telephone (1-909-597-7588) for more information.

About Acnodes

Acnodes manufactures, designs, and markets industrial computers and display solutions for diverse industries ranging from automation to military. We have an array of technological innovations in the area of rack mount servers, embedded computers, Panel PC’s and rugged monitors that create simpler and more valuable products to the customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Acnodes strives to explore new technologies to better improve life and work.
