17.3 inch monitor with keyboard and touchpad in a 1U high 22.44 inch depth rackmount drawer incorporates 1920 x 1080 LCD LED panel, 106-keys keyboard with touch pad, VGA input, and 110 to 240V AC power input.

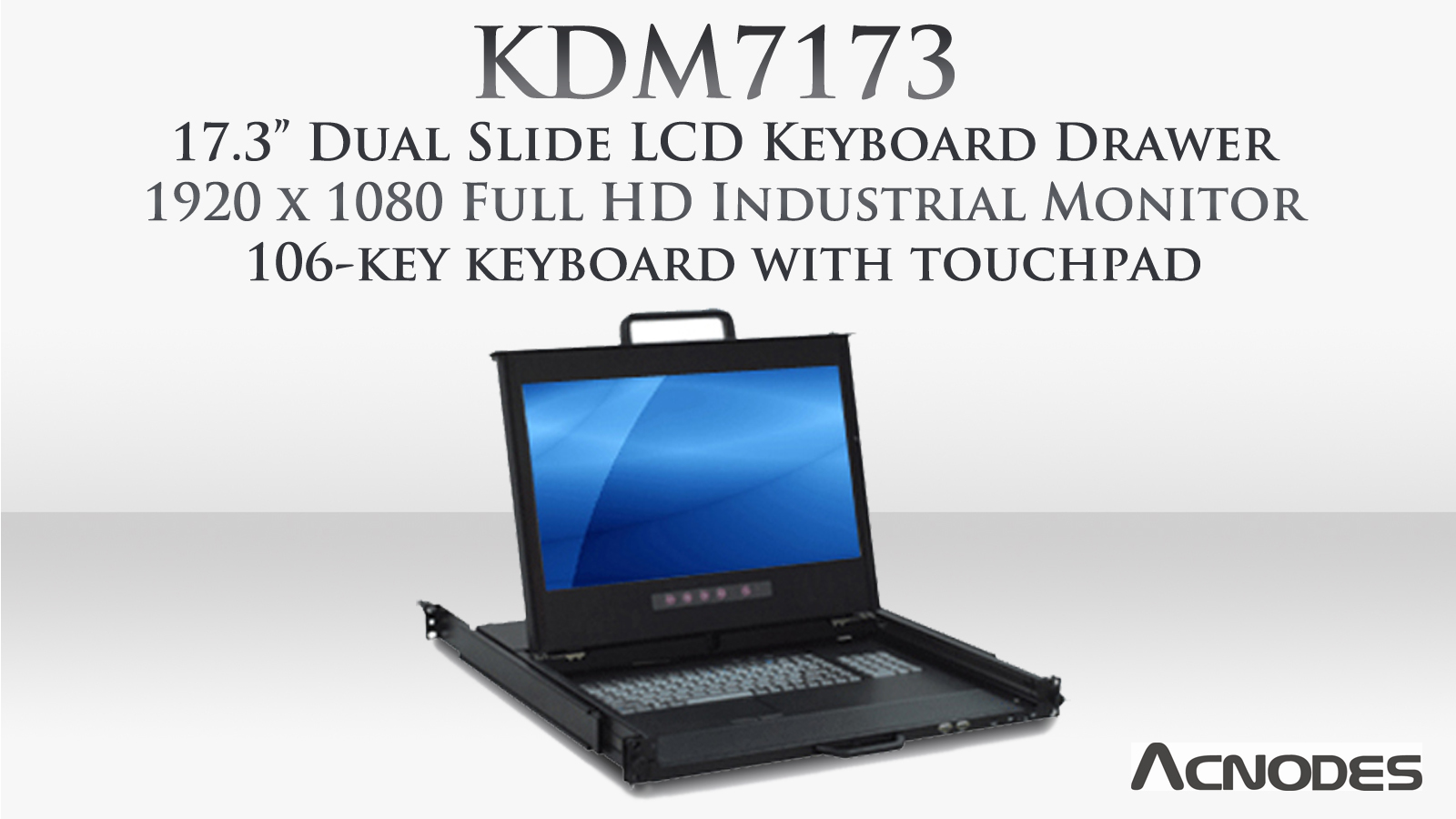

Acnodes Corporations, a leading manufacturer of industrial and embedded computer platforms and technologies, introduced today the launch of the KDM7173, a dual slide keyboard monitor drawer. The monitor keyboard with dual slide functionality creates easy and accessible to slide out independently. The 1U high with 22.44 inch depth rackmount drawer features 1920 x 1080 full HD LCD on a 17.3 inch industrial monitor, 106-keys keyboard with touch pad, VGA input, and a front USB port for easy data access. The easy to operate rack console is also easy to access.

Built of heavy duty steel, it is made to be durable and long lasting. The drawer design has a dual ball-bearing slide rails for the monitor and keyboard with touch pad drawers. The monitor and keyboard drawer can slide out separately. The 17.3 inch monitor displays a resolution of 1920 x 1080 with 300nit brightness and 650:1 contrast ratio. The backlight uses LED and displays 16.7 million colors in 8-bit with FRC. The viewing angle is at 140° x 120°, active area is 381.888 x 214.812 mm, and pixel pitch is 0.1989 x 0.1989 mm.

The video input supports VGA but can be upgraded to DVI and HDMI. The USB port is located in the front, designing easy access for data retrieval. Also located in the front panel control are the power on/off switch and On Screen Display. The cable comes with VGA + PS/2 x 2 or VGA + USB x 1 cable. The power supply is 100~240V AC power input.

The dimension of the rackmount drawer is 17.65”(W) x 22.44"(D) x 1.73”(H) and at 28.7 lbs. The operational temperature can withstand from 0° to 50° C (32° to 122° F) with storage temperature at -20° to 60° C (-4° to 140° F). The relative humidity can tolerate from 10-90%, non-condensing.

KDM7173-PR



KDM7173: Acnodes portable dumb terminal with 17.3” industrial LCD screen that supports 1920 x 1080 full HD high resolutions, keyboard and touch pad with USB connector, DVI + VGA video input, AC power input. Option for 1000-nit sunlight readable display and internal battery.

For a full series of Rackmount Monitor Keyboard Drawer from Acnodes, please visit
• 17” Monitor Keyboard Drawer – 1U high rack console integrated 17” industrial LCD and keyboard with touchpad
• 19” Monitor Keyboard Drawer –  1U high rack console integrated 19” industrial LCD and keyboard with touchpad
• 20” Monitor Keyboard Drawer – 1U or 2U high rack console integrated 20” industrial LCD and keyboard with touchpad
• Short Depth Monitor Keyboard Drawer – Rack console integrated industrial LCD and keyboard with touchpad in 1U short depth rack drawer
• Dual Slide Rail Monitor Keyboard Drawer – LCD keyboard drawer with dual rail design allows keyboard & LCD drawers to slide out independently
• Monitor Keyboard Drawer with KVM Switch – 1U rack console integrated industrial LCD, keyboard, touchpad, and 8-port KVM switch
• Monitor Keyboard Drawer with DVI KVM Switch – 1U rack console integrated industrial LCD, keyboard, touchpad, and 12-port DVI KVM switch
• Monitor Keyboard Drawer with USB Hub KVM Switch – 1U rack console integrated LCD, keyboard, touchpad, and 8/16 ports USB hub KVM switch
• Monitor Keyboard Drawer with Cat6 KVM Switch – 1U rack console integrated LCD, keyboard, touchpad, and 8/16/32 ports Cat6 KVM switch
• Monitor Keyboard Drawer with Matrix KVM Switch – 1U rack console integrated LCD, keyboard, touchpad, and 8/16 ports Matrix KVM switch
• SUN Native Resolution Monitor Keyboard Drawer  – LCD keyboard drawer that monitor support 1152 x 900 display resolution.
• High Brightness Monitor Keyboard Drawer – 1U rack console integrated sunlight-readable LCD and keyboard with touchpad

Our product line’s configurations are located on www.acnodes.com. However, most of the commercial and industrial computers can be custom built to customers’ preference. Contact us via email at [email protected] or telephone (1-909-597-7588) for more information.
