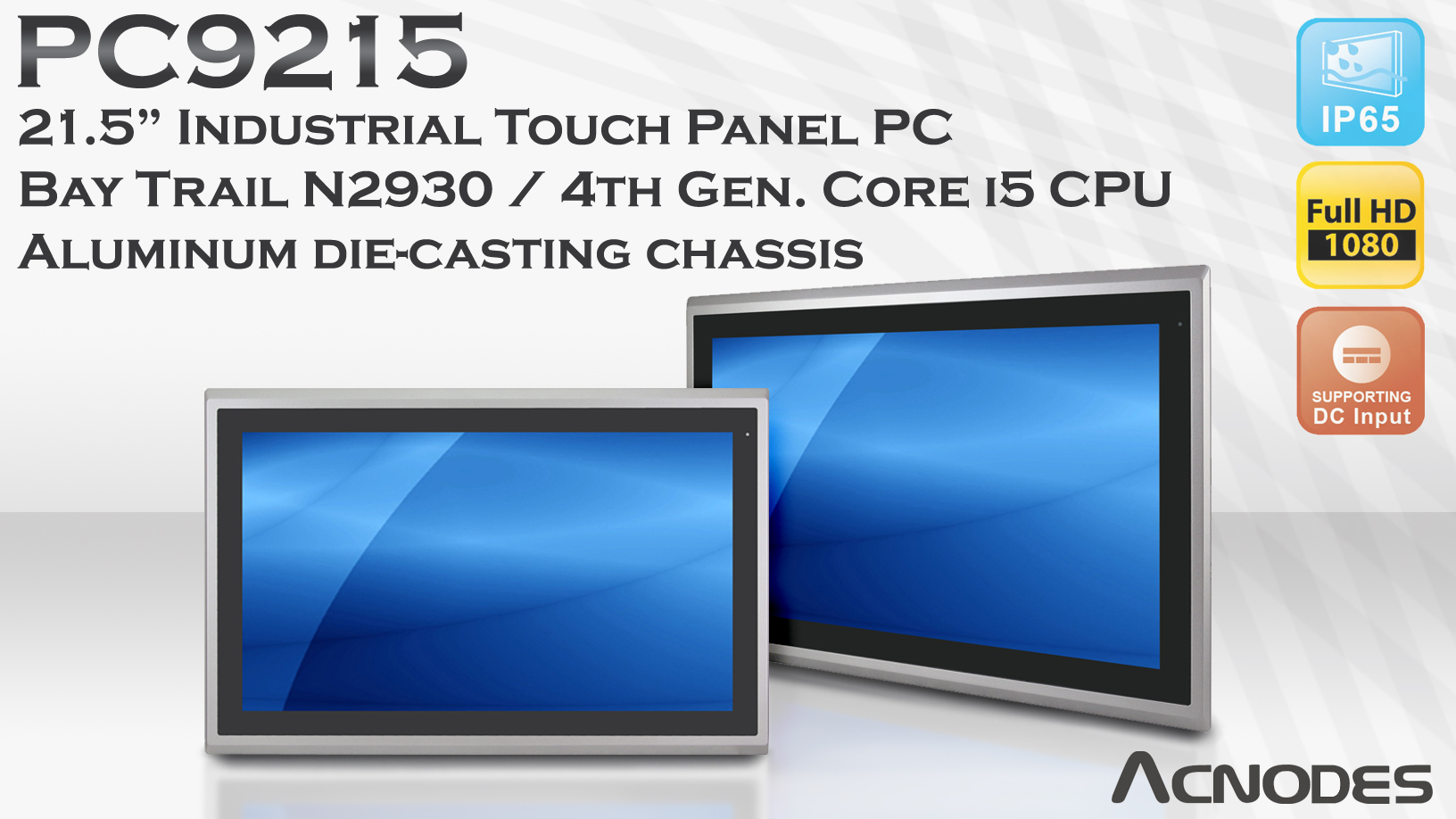

Acnodes Corporations, a leading manufacturer of industrial and embedded computer platforms and technologies, introduced today the launch of the PC9215. The 21.5 inch industrial Panel PC is built of aluminum die-casting chassis with an IP65 flat front bezel, providing a thin yet durable design. PC9215 comes in two models; PC9215A and PC9215B with Bay Trail N2930 1.83GHz and 4th Generation Core i5 processor, respectively. Equipped with 1920 x 1080 LCD panel, resistive type touch screen, SATA HDD bay, RS-232, RS-232/422/485, two COM ports, two USB ports, wide range 9V~36VDC power input, and Windows 7 supported, PC9215 provides a reliable and highly functional Panel PC to meet any needs.

The aluminum die-casting chassis is constructed with one piece in the back and of silver color. The front panel is a flat surface with IP65, providing protection from liquid and contaminants insertion. Combined with the mentioned features, the materials built present a sleek and enduring structure. To compliment, the 21.5 inch LCD panel is of 1920 x 1080 resolution, 250nit brightness, 3000:1 contrast ratio, and displays 16.7 million colors. With backlight lifetime of 50,000 hours, it presents vibrant lasting image quality. Resistive type touch screen with USB come standard but projected capacitive type touch screen is an available option.

The embedded board is of Bay Trail N2930 1.83GHz (PC9215A) and 4th Generation Core i5 processor (PC9215B), delivering outstanding compute while consuming low amount of power. The chipset of SoC and memory of on bard DDR-III SODIMM x 1 with 4GB 800MHz allow for great storage capability. The systems supported include Windows Embedded Compact 7, Windows 7/ 8/ 8.1, Windows Embedded standard 7/8, and Windows Embedded 8.1 Industry.

The drive bay accepts 2.5” SATA HDD bay for SATA HDD and an internal SD slot with maximum 32GB. The expansion slot includes an internal mini-PCIe slot full size. The connectors comprise of RS-232 DB-9, DB9 RS-232/422/485, two USB (one for USB 2.0, one for USB 3.0), two Ethernet ports, audio port (Line out), 3-pin terminal block for DC power input, and 2-pin connector for power on/off button.

The power supply is of a wide range 9V~36VDC power input with AC adapter. The operational temperature can withstand from 32°F to 122°F (0°C~50°C). The dimension measures at 22.72"(W) x 14.25"(H) x 2.55"(D) and 16.53 lbs, creating easy installation via panel or VESA mounting.

Panel PC PC9215

PC9215A:
21.5" 1920 x 1080 industrial Panel PC comes with resistive-type touch screen, IP65 rated enclosure, Bay Trail N2930 1.83GHz processor, 4GB DDR3 memory. Option for projective capacitive touch.

PC9215B:
21.5" 1920 x 1080 industrial Panel PC comes with resistive-type touch screen, IP65 rated enclosure, 4th generation Core i5 processor, 4GB DDR3 memory. Option for projective capacitive touch.

Look inside to discover full range of Panel PCs from Acnodes

•Fanless Panel PC – 7” to 21.5” Panel PCs with fanless cooling system
•Fanless Panel PC with Extended Temp Range - Panel PCs with extended operating temperature
•Panel PC with Expansion Slots – Panel PCs with PCI or PCI Express expansion slots
•Medical Grade Panel PC – Panel PCs with anti-bacteria coating, water/dust proof slim casing
•Open Frame Panel PC – Panel PCs with rugged metal open frame housing for wall or VESA mounting
•Rugged Industrial and Military Panel PC - Panel PCs that meet MIL-810G-STD testing standard for industrial and military computing applications.
•HMI Panel PC – Panel PCs designed for seamless interaction between humans and machines.
•Stainless Steel Panel PC  – Panel PCs with IP protection enclosure to cope industrial applications with harsh environmental conditions

Our product line’s configurations are located on www.acnodes.com. However, most of the commercial and industrial computers can be custom built to customers’ preference. Contact us via email at [email protected] or telephone (1-909-597-7588) for more information.
