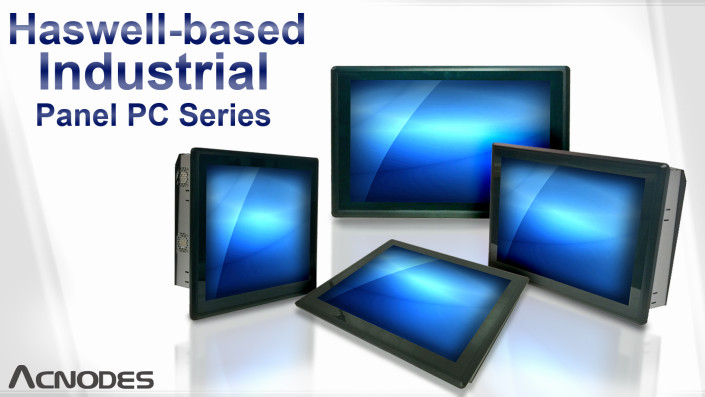

Acnodes Corporation’s newest industrial Panel PC series, the PC58XX, is now available with 15, 17, 21.5, or 24 inches LCD screens with projected capacitive or 5-wire resistive touch screen options. Based on Intel’s most powerful Haswell 4th generation Core i3 / i5 processor with H81 chipset, the PC58XX line delivers extraordinary computing performance while consuming low amount of power. The PC58XX series includes one on board DDR3 SO-DIMM socket for a maximum of 16GB system memory and one 2.5 in. SATA Hard Disk Drive (option for 3.5 in. HDD for PC5822 and 5824) along with dual Ethernet, five COM ports, six USB ports, two full-size mini PCI-E slots, a VGA and a HDMI port to accommodate a wide range of connectivity requirements.

PC58XX series is encased in a rugged chassis with an IP65 rated ultra slim aluminum front bezel and a sheet metal rear cover, which meets the toughest industrial and environmental standards. In addition to panel mounting, standard VESA mounting holes are available on the rear for easy mounting to any fixture or wall. The system supports wide voltage power input from 90 to 264V AC and an optional 24V DC to meet the requirements of unstable electricity environments. Besides, it can operate in wide range temperature environments from 14°F to 122°F (-10°C to +50°C).

PC5815: Acnodes 15” Industrial Touch Screen Panel PC with resistive touch screen, Haswell 4th generation Core i3 / i5 / Pentium, ultra slim aluminum enclosure, IP65 rated front bezel, configurations with 4GB DDR3 memory, 1 x 2.5” SATA HDD, 2 x Ethernet, 5 x Serial, 6 x USB, 90-264V AC power input. Option for 24V DC power input and projected capacitive touch screen.

PC5817: Acnodes 17” Industrial Touch Screen Panel PC with resistive touch screen, Haswell 4th generation Core i3 / i5 / Pentium, ultra slim aluminum enclosure, IP65 rated front bezel, configurations with 4GB DDR3 memory, 1 x 2.5” SATA HDD, 2 x Ethernet, 5 x Serial, 6 x USB, 90-264V AC power input. Option for 24V DC power input and projected capacitive touch screen.

PC5822: Acnodes 21.5” Industrial Touch Screen Panel PC with projected capacitive touch screen, Haswell 4th generation Core i3 / i5 / Pentium, ultra slim aluminum enclosure, IP65 rated front bezel, configurations with 4GB DDR3 memory, 1 x 2.5”/ 3.5” SATA HDD, 2 x Ethernet,5 x Serial, 6 x USB, 90-264V AC power input. Option for 24V DC power input.

PC5824: Acnodes 24” Industrial Touch Screen Panel PC with projected capacitive touch screen, Haswell 4th generation Core i3 / i5 / Pentium, ultra slim aluminum enclosure, IP65 rated front bezel, configurations with 4GB DDR3 memory, 1 x 2.5” / 3.5” SATA HDD, 2 x Ethernet, 5 x Serial, 6 x USB, 90-264V AC power input. Option for 24V DC power input.

Look inside to discover full range of Touch Panel PCs from Acnodes
•Panel PC with up to 12” Touch Screen – Panel PCs with 5.7” to 12” touch screen
•Panel PC with up to 19” Touch Screen - Panel PCs with 15” to 19” touch screen
•Panel PC with Expansion Slots – Panel PCs with PCI or PCI Express expansion slots
•Industrial Grade Panel PC  – Panel PCs with IP protection enclosure to cope industrial applications with harsh environmental conditions
•Medical Grade Panel PC – Panel PCs with anti-bacteria coating, water/dust proof slim casing
•Open Frame Panel PC – Panel PCs with rugged metal open frame housing for wall or VESA mounting
•Slim Design Panel PC – Panel PCs with ultra-slim housing for space-limited industrial applications

Our product line configurations are illustrated on our web site at Acnodes.com.  However, most of the commercial and industrial computers are custom built to customer’s exact requirements. Contact us via e-mail: [email protected] or telephone (1-909-597-7588) for more information.

About Acnodes
Acnodes manufactures, designs, and markets industrial computers and display solutions for diverse industries ranging from automation to military.  We have an array of technological innovations in the area of rack mount servers, embedded computers, Panel PC’s and rugged monitors that create simpler and more valuable products to the customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Acnodes strives to explore new technologies to better improve life and work.
