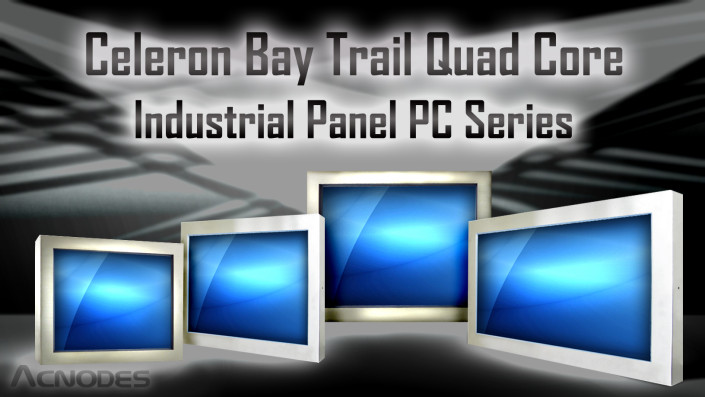

Acnodes’ new industrial Panel PC series, the PCH8XXX, is now available with 15, 17, 19, 21.5 inches panel with 5-wire resistive type touch screen. With an onboard Celeron Bay Trial-M N2930 1.83GHz Quad-Core processor and Atom SoC Integrate chipset, the PCH8XXX features low power consumption and good performance. Consolidates performance and reliability in one system, the PCH8XXX doesn’t only deliver high performance with a quad-core processor but its fully IP65/NEMA4X rugged stainless steel chassis also makes this interface suitable for long-term solutions, and especially suitable for environments such as chemical and food processing plants.

The PCH8XXX provides the best cost performance and high definition HD 1080P graphical performance (for PCH8215) to support industrial multimedia applications. This new robust Panel PC series will include a built in 2GB DDR3 memory module which can easily be upgraded to 8GB if needed. Moreover, it comes standard with one SATA interfaces (1 x 2.5” HDD) for connection of mass storage devices. With multiple I/Os such as 4 x COM, 6 x USB, and dual Gigabit Ethernet make the PCH8XXX easier to connect to devices, provide a great solution for a wide range of applications.

The PCH8XXX is capable of operating in harsh environments with temperature ranging from 32°F to 113°F (0°C to 45°C) and relative humidity of 30% to 90%. Its power unit accepts a 12V DC power input and includes an external AC power adapter.  Standard VESA mounting holes are available on the rear for easy mounting to any fixture or wall which enables users to run demanding applications in the field, floor or office environment.

PCH8150: Acnodes 15” Industrial Touch Screen Panel PC with resistive touch screen, Celeron Bay Trail N2930 1.83GHz Quad Core CPU, fanless industrial design, fully IP65 rated, configurations with 2GB DDR3 memory, 1 x 2.5” SATA HDD, 2 x Ethernet, 4 x Serial, 6 x USB, 12V DC power input with external power adapter.

PCH8170: Acnodes 17” Industrial Touch Screen Panel PC with resistive touch screen, Celeron Bay Trail N2930 1.83GHz Quad Core CPU, fan less industrial design, fully IP65rated, configurations with 2GB DDR3 memory, 1 x 2.5” SATA HDD, 2 x Ethernet, 4 x Serial, 6 x USB, 12V DC power input with external power adapter.

PCH8190: Acnodes 19” Industrial Touch Screen Panel PC with resistive touch screen, Celeron Bay Trail N2930 1.83GHz Quad Core CPU, fan less industrial design, fully IP65 rated, configurations with 2GB DDR3 memory, 1 x 2.5” SATA HDD, 2 x Ethernet,4 x Serial, 6 x USB, 12V DC power input with external power adapter.

PCH8215: Acnodes 21.5” Industrial Touch Screen Panel PC with resistive touch screen, Celeron Bay Trail N2930 1.83GHz Quad Core CPU, fan less industrial design, fully IP65rated, configurations with 2GB DDR3 memory, 1 x 2.5” SATA HDD, 2 x Ethernet, 4 x Serial, 6 x USB, 12V DC power input with external power adapter.

Look inside to discover full range of Embedded Panel PCs from Acnodes
•Panel PC with up to 12” Touch Screen – Panel PCs with 5.7” to 12” touch screen
•Panel PC with up to 19” Touch Screen - Panel PCs with 15” to 19” touch screen
•Panel PC with Expansion Slots – Panel PCs with PCI or PCI Express expansion slots
•Industrial Grade Panel PC – Panel PCs with IP protection enclosure to cope industrial applications with harsh environmental conditions
•Medical Grade Panel PC – Panel PCs with anti-bacteria coating, water/dust proof slim casing
•Open Frame Panel PC – Panel PCs with rugged metal open frame housing for wall or VESA mounting
•Slim Design Panel PC – Panel PCs with ultra-slim housing for space-limited industrial applications

Our product line configurations are illustrated on our web site at Acnodes.com.  However, most of the commercial and industrial computers are custom built to customer’s exact requirements. Contact us via e-mail: [email protected] or telephone (1-909-597-7588) for more information.

About Acnodes
Acnodes manufactures, designs, and markets industrial computers and display solutions for diverse industries ranging from automation to military.  We have an array of technological innovations in the area of rack mount servers, embedded computers, Panel PC’s and rugged monitors that create simpler and more valuable products to the customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Acnodes strives to explore new technologies to better improve life and work.
