Ultra slim 21.5-inch fanless HMI computer for Internet of Things (IoT) device

•21.5”  Ultra Slim Fanless Touch Panel PC
•Projected capacitive multi-touch screen advances interactive experience
•With a compact footprint and an ultra slim profile just 48mm deep

Acnodes Corporation is proud to release its Ultra Slim Fanless Touch Panel PC, FPC8759. Powered by high performance Atom D2550 Dual-Core 1.86GHz processor and NM10 chipset with two DDR3 SO-DIMM sockets for up to 4GB system memory, FPC8759 ensures adequate performance for end-users while consumes small amounts of power. It equipped with a 21.5 inch widescreen projected capacitive multi-touch screen with 1080P Full HD resolutions, ideal for interactive kiosk and control panel for machine in a variety of commercial and industrial applications. Rich I/O ports including dual Ethernet, four serial ports, four USB ports, mini PCI-E connector to support wireless networking modules, VGA port and audio (Mic-in, Line-out) port, provide excellent peripheral connectivity. It supports standard operating systems such as Windows 7, Window XP, Window XP Embedded, and Linux.

Ultra Slim design, with 48 mm thick console, PC features aluminum die-casting chassis and front panel that tested to IP65 water and dust resistant standard. While FPC8759 has an elegant and modern appearance, it is also capable of operating in environments with temperatures ranging from 32°F to 95°F (0°C to +35°C) and relative humidity of 20% to 85%. FPC8759 supports both VESA and panel mounting enables easy installation in various applications with confined spaces. To fulfill different application needs and to secure the system from power input change, the system accepts an 8V to 36V wide range DC power input.

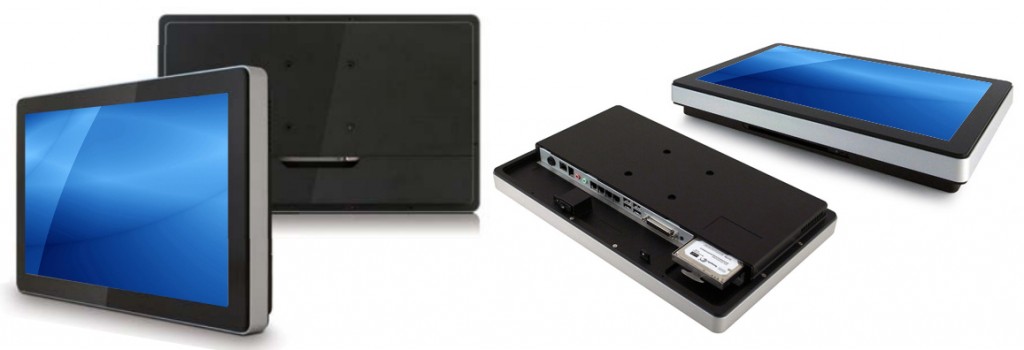

FPC8759: Acnodes 21.5” Fanless Touch Screen Panel PC with projected capacitive multi-touch screen, Atom Dual Core D2550 1.86GHz, aluminum die-casting chassis, IP65 rated front panel, configurations with 2GB DDR3 memory, 1 x 2.5” SATA HDD, 2 x Ethernet, 4 x Serial, 4 x USB, 8-36V DC power input. Option for 2D scanner, MSR, RFID, and medical power supply.

Look inside to discover full range of Panel PCs from Acnodes
•Panel PC with up to 12” Touch Screen – Panel PCs with 5.7” to 12” touch screen
•Panel PC with up to 19” Touch Screen - Panel PCs with 15” to 19” touch screen
•Panel PC with Expansion Slots – Panel PCs with PCI or PCI Express expansion slots
•Industrial Grade Panel PC  – Panel PCs with IP protection enclosure to cope industrial applications with harsh environmental conditions
•Medical Grade Panel PC – Panel PCs with anti-bacteria coating, water/dust proof slim casing
•Open Frame Panel PC – Panel PCs with rugged metal open frame housing for wall or VESA mounting
•Slim Design Panel PC – Panel PCs with ultra-slim housing for space-limited industrial applications

Our product line configurations are illustrated on our web site at Acnodes.com.  However, most of the commercial and industrial computers are custom built to your exact requirements. Contact us via e-mail: [email protected] or telephone (1-909-597-7588) to discover how we can give you the equipment you need for your specific needs.

Fanless Panel PCs from Acnodes are now also available through Amazon.com , Sears.com and Intel.com

About Acnodes
Acnodes manufactures, designs, and markets industrial computers and display solutions for diverse industries ranging from automation to military.  We have an array of technological innovations in the area of rack mount servers, embedded computers, Panel PC’s and rugged monitors that create simpler and more valuable products to the customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Acnodes strives to explore new technologies to better improve life and work.

FPC8759
