• Seamless integration of LCD, keyboard, and touchpad in a 1U 19” short depth rackmount drawer
• Revolutionary widescreen 17" LCD panel in ultra high resolution 1920 x 1200
• Efficient and durable solution for harsh environment operation and mission critical applications

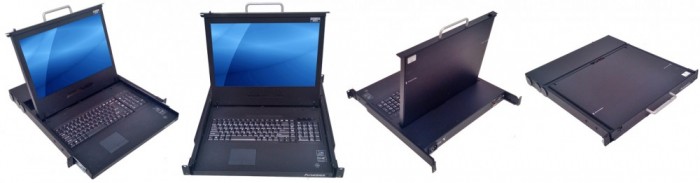

Acnodes Corporation, a quality provider of industrial computers, today announces the newest rugged industrial grade 1U high 19 inch Short Depth Rack Console Drawer fitted with keyboard and monitor, the KD9150N. Built for space-limited environments and simple organization, the 1U high console drawer is composed of a 17 inch monitor, full 104-key keyboard and 2-button touch pad, offers easy operation to industrial and laboratory users. Monitor provides 210 nits of brightness at contrast ratio of 600:1, 1920 x 1200 pixels high resolutions, and 16.7 M color makes it easy to see fine details in complex, high-density graphic image, ideal for markets requiring high end graphic capability. KD9150N accepts VGA and DVI input signals and offers on-screen display allows users to adjust display characteristics or select viewing options.

KD9150N comes with a 6-foot cable that connects to your PC. Optional cables up to 15 foot long are also available. The steel enclosure has a built-in handle and ball-bearing slides for smooth pull-out action. For power conservation and to extend monitor life cycle, the KD9150N automatically turns off when folded into tray. To accommodate industrial applications that have harsh environmental conditions such as, unavoidable vibration and rapid temperature fluctuations, KD9150N is designed to withstand shock, vibration, and wide range of operating temperature from 0 - 50°C.

KD9150N: Acnodes 1U 17” Rackmount Monitor Keyboard Drawer 1U high and 19” short depth rackmount terminal with 17” industrial LCD screen that supports 1920 x 1200 ultra high resolutions, 104-key keyboard, 2-button touch pad, DVI + VGA video input, 100-240V AC power input.

For a full series of Rackmount Monitor Keyboard Drawer from Acnodes, please visit
• 17” Monitor Keyboard Drawer – 1U high rack console integrated 17” industrial LCD and keyboard with touchpad
• 19” Monitor Keyboard Drawer –  1U high rack console integrated 19” industrial LCD and keyboard with touchpad
• 20” Monitor Keyboard Drawer – 1U or 2U high rack console integrated 20” industrial LCD and keyboard with touchpad
• Short Depth Monitor Keyboard Drawer – Rack console integrated industrial LCD and keyboard with touchpad in 1U short depth rack drawer
• Dual Slide Rail Monitor Keyboard Drawer – LCD keyboard drawer with dual rail design allows keyboard & LCD drawers to slide out independently
• Monitor Keyboard Drawer with KVM Switch – 1U rack console integrated industrial LCD, keyboard, touchpad, and 8-port KVM switch
• Monitor Keyboard Drawer with DVI KVM Switch – 1U rack console integrated industrial LCD, keyboard, touchpad, and 12-port DVI KVM switch
• Monitor Keyboard Drawer with USB Hub KVM Switch – 1U rack console integrated LCD, keyboard, touchpad, and 8/16 ports USB hub KVM switch
• Monitor Keyboard Drawer with Cat6 KVM Switch – 1U rack console integrated LCD, keyboard, touchpad, and 8/16/32 ports Cat6 KVM switch
• Monitor Keyboard Drawer with Matrix KVM Switch – 1U rack console integrated LCD, keyboard, touchpad, and 8/16 ports Matrix KVM switch
• SUN Native Resolution Monitor Keyboard Drawer  – LCD keyboard drawer that monitor support 1152 x 900 display resolution.
• High Brightness Monitor Keyboard Drawer – 1U rack console integrated sunlight-readable LCD and keyboard with touchpad

Our product line configurations are illustrated on our web site at Acnodes.com.  However, most of the rackmount and industrial monitors are custom built to your exact requirements. Contact us via e-mail: [email protected] or telephone (1-909-597-7588) to discover how we can give you the equipment you need for your specific needs.

Rack console from Acnodes are now also available through Amazon.com , Sears.com and Intel.com

About Acnodes
Acnodes manufactures, designs, and markets industrial computers and display solutions for diverse industries ranging from automation to military.  We have an array of technological innovations in the area of rack mount servers, embedded computers, Panel PC’s and rugged monitors that create simpler and more valuable products to the customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Acnodes strives to explore new technologies to better improve life and work.
