The APW5240 is a 24.1" WUXGA industrial LCD monitor supporting 1920 x 1200 resolution with 16.7 million colors, achieving ultimate picture quality. The video input includes VGA + DVI-D + HDMI. Designed to meet professional and environmental demands, the monitor features an aluminum front bezel, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APW5240 has a variety of optional upgrades and modules available including IP65 rated front bezel, touchscreen technology, MCS multi-display OSD control, and DC power input.
Loading...
16.2

APW5170

17.3

APW5173

APW5240

  • 24.1" WUXGA industrial LCD monitor
  • Supports 1920 x 1200 native resolution
  • VGA + DVI-D + HDMI video input
  • Option for Resistive 1-pt touch screen - USB
  • Option for front IP65 / NEMA4 rated protection
  • Option for video decoding capability up to 1080P
  • PIP sub-screen & PBP dual-screen viewing efficiency
  • VESA (100 x 100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$1,398.00
Availability: In stock
SKU
APW5240
Email

24.1" WUXGA industrial monitor supporting 1920 x 1200 native resolution, VGA + DVI-D + HDMI input, 100/240VAC power input, and an 8mm aluminum front bezel.

Material
8mm aluminum front bezel
Rear rugged heavy-duty metal construction
Option for IP65 / NEMA4 rated front bezel
LCD Panel
Size: 24.1 inch
Native Resolution: 1920 x 1200
Brightness (cd/m²): 300
Contrast Ratio (typ): 1000:1
Colors: 16.7 M
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 14
Dot Pitch (mm): 0.27
Display Area (mm): 518.4H x 324V
Surface Treatment: Anti-glare, Hard-coating
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 30,000
Video input
Standard: VGA + DVI-D + HDMI
Option: BNC + Audio, 3G-SDI, or MCS multi-display control
Touch screen (Option)
Resistive 1-pt touch screen - USB port
Lockable USB connector
HDMI Modules (Option)
HDMI decoder module 1080P over IP
HDMI receiver module 1080P
HDMI quad display module 1080P
Rear panel control
Power on/off switch & OSD membrane switch
OSD menu control
OSD membrane switch control for Picture, Position, Color, OSD Set, Reset, PIP, and MISC
Mounting Type
VESA (100 x 100mm) mount
Cable
1 x 6ft VGA cable included
1 x Power cord included
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 33W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Weight
24 lb / 10.9 kg

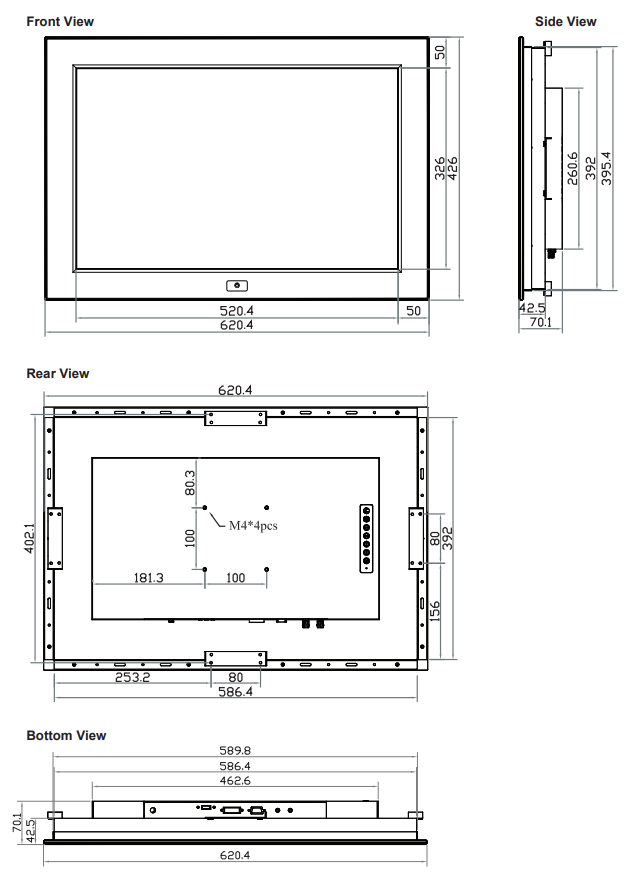

Dimension
24.4"(W) x 2.8"(D) x 16.8"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

APW5240:
24.1" WUXGA industrial LCD monitor, 1920 x 1200 native resolution, VGA + DVI-D + HDMI video input, VESA (100mm) mount, 100/240VAC power input, aluminum front bezel, Black color.

Document
Description
Download Link
file iconAPW5240-SP.pdf
Spec Sheet
file iconAPW5240-UM.pdf
User Manual
file iconMCS-UM.pdf
MCS User Manual
file iconTouch Screen Calibration Guide.pdf
Touch Screen Calibration Guide
  • APW5240
    24.1" WUXGA industrial LCD monitor
    Supports 1920 x 1200 native resolution
    VGA + DVI-D + HDMI video input
    Option for Resistive 1-pt touch screen - USB
    Option for front IP65 / NEMA4 rated protection
    Option for video decoding capability up to 1080P
    PIP sub-screen & PBP dual-screen viewing efficiency
    VESA (100 x 100mm) mount ready
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Starting at:
    $1,398.00
APW5240
$1,398.00

PRODUCT DESCRIPTION
Industrial monitors can be used as more than just computer screens. It can be utilized in any application that requires a visual display in harsh environments and applications, from machine control to automation to digital signage. The APW5240 comes with a 24.1-inch display, a resolution of 1920 x 1200, brightness at 300 nits, a contrast ratio of 1000:1, and an astounding 16.7 million colors, it will deliver the required task needed. The aluminum front bezel with heavy-duty metal rear rugged construction provides protection and durability from the harsh conditions it gets exposes too. This widescreen LCD monitor supports VGA + DVI-D + HDMI video input. The back of the panel is a power on and off switch and OSD membrane switch. The OSD membrane switch is for the OSD menu control which controls the brightness, contrast, phase and clock, color, H and V position, and auto-tune. The APW5240 can survive temperatures from 0°C to 50°C during operation and from -20°C to 60°C during storage. Its dimension measures at 24.4 inches in width, 16.8 inches in height, and 2.8 inches in depth and it weighs 24 pounds.
