The APW5190 is a 19" widescreen industrial LCD monitor supporting 1440 x 900 resolution, VGA + HDMI (no speaker) video input, and 100/240VAC power input. Designed to meet professional and environmental demands, the monitor features an aluminum front bezel, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APW5190 has a variety of optional upgrades and modules available including an IP65 rated front bezel, Resistive touch screen with USB port, embedded modules, and DC power input.

Loading...
21.5

APW5220

APW5190

  • 19" widescreen industrial LCD monitor
  • Supports 1440 x 900  native resolution
  • VGA + HDMI (no speaker) video input
  • Option for Resistive 1-pt touch screen - USB
  • Option for front IP65 / NEMA4 rated protection
  • Option for video decoding capability up to 1080P
  • PIP sub-screen & PBP dual-screen viewing efficiency
  • VESA (100 x 100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$760.00
Availability: In stock
SKU
APW5190
Email

19" widescreen industrial LCD monitor with 1440 x 900 native resolution, VGA + HDMI (no speaker) video input, VESA (100 x 100mm) mount, and an aluminum front bezel.

Material
8mm aluminum front bezel
Rear rugged heavy-duty metal construction
Option for IP65 / NEMA4 rated front bezel
LCD Panel
Size: 19 inch
Native Resolution: 1440 x 900
Brightness (cd/m²): 250
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): 170° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.2835
Active Area (mm): 408.24H x 255.15V
Surface Treatment: Anti-glare
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 30,000
Video Input
Standard: VGA + HDMI (no speaker)
Option: BNC, 3G-SDI, or MCS multi-display control
Touch screen (Option)
Resistive 1-pt touch screen - USB port
Lockable USB connector
HDMI Modules (Option)
HDMI decoder module 1080P over IP
HDMI receiver module 1080P
HDMI quad display module 1080P
Rear panel control
Power on/off switch & OSD membrane switch
OSD menu control
OSD membrane switch control for Picture, Position, Color, OSD Set, Reset, PIP, and MISC
Mounting Type
VESA (100 x 100mm) mount
Cable
1 x 6ft VGA cable included
1 x Power adapter included
1 x Power cord included
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 20W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Weight
15.4 lb / 7 kg

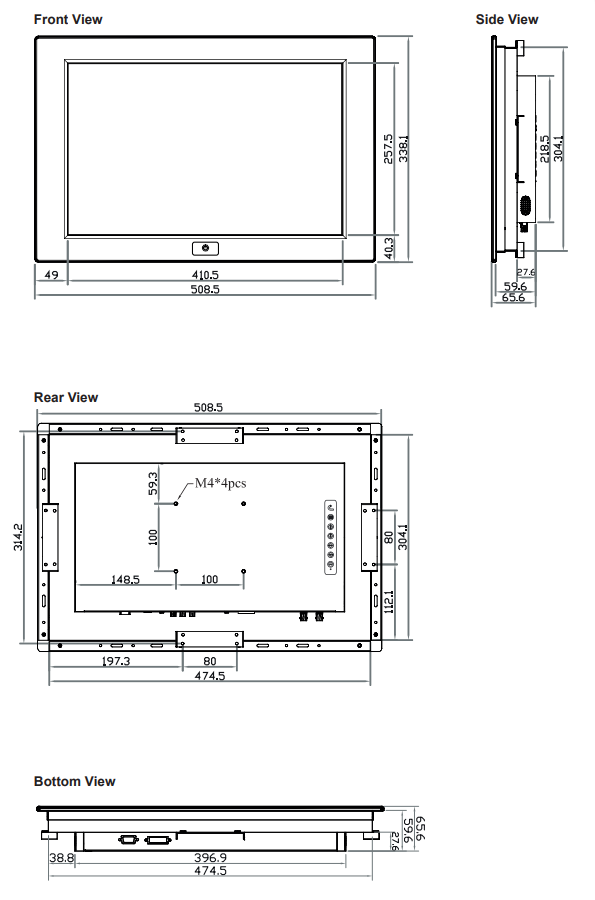

Dimension
20"(W) x 2.6"(D)x 13.3"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

APW5190:
19" widescreen industrial LCD monitor 1440 x 900 native resolution, VGA + HDMI(no speaker) input, VESA (100 x 100mm) mount, 100/240VAC power input, aluminum front bezel, Black color.

Document
Description
Download Link
file iconAPW5190-SP.pdf
Spec Sheet
file iconAPW5190-UM.pdf
User Manual
file iconMCS-UM.pdf
MCS User Manual
file iconTouch Screen Calibration Guide.pdf
Touch Screen Calibration Guide
  • APW5190
    19" widescreen industrial LCD monitor
    Supports 1440 x 900 native resolution
    VGA + HDMI (no speaker) video input
    Option for Resistive 1-pt touch screen - USB
    Option for front IP65 / NEMA4 rated protection
    Option for video decoding capability up to 1080P
    PIP sub-screen & PBP dual-screen viewing efficiency
    VESA (100 x 100mm) mount ready
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Starting at:
    $760.00
APW5190
$760.00

PRODUCT DESCRIPTION
The APW5190 is a 19” 1440 x 900 widescreen industrial LCD monitor with an aluminum front bezel. An optional front NEMA4 / IP65 LCD display panel is available. The LCD monitor supports a 1000:1 contrast ratio and displays 16.7 million colors, achieving high picture quality. The mean time between failures at 30,000 hours, ensuring the monitor is long-lasting. The APW5190 has improved energy efficiency and features a fanless design that provides professional-use durability and around-the-clock operation. The video input is analog RGB with video level at 0.7Vp-p, sync type of separate H/V and composite H/V, input connector of D-Sub 15 pin VGA analog. The OSD menu control includes brightness, contrast, phase and clock, color, H and V position, auto-tune, and recall. The environmental temperature of 32°F to 122°F during operation and 23°F to 140°F in storage is engineered to perform in harsh conditions. Using a panel mount of VESA (100 x 100mm) mount, the display can be easily installed on the wall or ceiling. The APW5190 is powered by a power cord with external auto-sensing 100 to 240VAC and uses a 50 / 60Hz power input. Option is available for 12V / 24V / 48V / 125V DC power input.
