The APW5170 is a 16.2" WUXGA industrial LCD monitor supporting 1920 x 1200 native resolution, VGA + HDMI (no speaker) input, and 100/240VAC power input. Designed to meet professional and environmental demands, the monitor features an aluminum front bezel, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APW5170 has a variety of optional upgrades and modules available including an IP65-rated front bezel, touchscreen technology, MCS multi-display OSD control, and DC power input.

Loading...
21.5

APW5220

24.1

APW5240

APW5170

  • 16.2" WUXGA industrial LCD monitor
  • Supports 1920 x 1200 native resolution
  • VGA + HDMI (no speaker) video input
  • Option for Resistive or PCAP touch screen - USB
  • Option for front IP65 / NEMA4 rated protection
  • Option for video decoding capability up to 1080P
  • PIP sub-screen & PBP dual-screen viewing efficiency
  • VESA (100 x 100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$1,626.00
Availability: In stock
SKU
APW5170
Email

16.2" WUXGA industrial LCD monitor supporting 1920 x 1200 native resolution, VGA + HDMI (no speaker) input, 100/240VAC power input, and an 8mm aluminum front bezel.

Material
8mm aluminum front bezel
Rear rugged heavy-duty metal construction
Option for IP65 / NEMA4 rated front bezel
LCD Panel
Size: 16.2 inch
Native Resolution: 1920 x 1200
Brightness (cd/m²): 300
Contrast Ratio (typ.): 800:1
Colors: 16.7 M, 8-bit
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 30
Dot Pitch (mm): 0.191
Display Area (mm): 343.80H x 214.90V
Surface Treatment: Anti-glare, Hard-coating
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 20,000
Video Input
Standard: VGA + HDMI (no speaker)
Option: 3G-SDI or MCS multi-display control
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Lockable USB connector
HDMI Modules (Option)
HDMI decoder module 1080P over IP
HDMI receiver module 1080P
HDMI quad display module 1080P
Rear panel control
Power on/off switch & OSD membrane switch
OSD menu control
OSD membrane switch control for Picture, Position, Color, OSD Set, Reset, PIP, and MISC
Mounting Type
VESA (100 x 100mm) mount
Cable
1 x 6ft DP cable included
1 x Power cord included
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 34W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Weight
10.8 lb / 4.9 kg

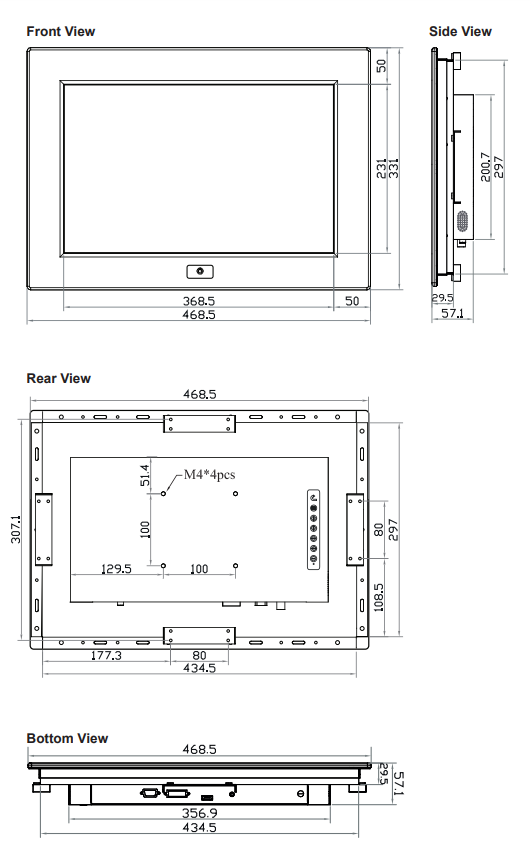

Dimension
17.3"(W) x 2.1"(D) x 11.5"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant


APW5170:
16.2" WUXGA industrial LCD monitor, 1920 x 1200 native resolution, VGA + HDMI (no speaker) input, VESA (100mm) mount, 100/240VAC power input, aluminum front bezel, Black color.

Document
Description
Download Link
file iconAPW5170-SP.pdf
Spec Sheet
file iconAPW5170-UM.pdf
User Manual
file iconMCS-UM.pdf
MCS User Manual
file iconTouch Screen Calibration Guide.pdf
Touch Screen Calibration Guide
  • APW5170
    16.2" WUXGA industrial LCD monitor
    Supports 1920 x 1200 native resolution
    VGA + HDMI (no speaker) video input
    Option for Resistive or PCAP touch screen - USB
    Option for front IP65 / NEMA4 rated protection
    Option for video decoding capability up to 1080P
    PIP sub-screen & PBP dual-screen viewing efficiency
    VESA (100 x 100mm) mount ready
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Starting at:
    $1,626.00
APW5170
$1,626.00

PRODUCT DESCRIPTION
The APW5170 incorporates many features and functions essential to the security industry. In addition to an 8mm aluminum front bezel, the rear is of rugged heavy-duty metal construction. The 16.2" widescreen LCD displays a maximum resolution of 1920 x 1200, 800:1 contrast ratio, 16.7 million colors, and a mean time between failures of 20,000 hours. Built-in image-enhancing functions can be used to further improve image quality and that way help bring out important details of a scene. The backlight is LED which ensures power saving and is long-lasting. The monitor comes with VGA + HDMI (no speaker) video input. The option is available for VGA + DVI-D + remote controller + SDI input. This widescreen monitor is ready for panel or VESA (100mm) mount, it can easily be installed on the wall or ceiling. It can withstand temperatures from 0°C to 55°C during operation and -20°C to 60°C in storage. The APW5170 comes with OSD membrane controls for brightness, contrast, phase and clock, color, H and V position, and auto-tune.
