The APW4017 is a 17.3" 4K UHD industrial LCD monitor featuring 3840 x 2160 native resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, VESA mount, and a rugged aluminum front bezel ensuring high mobility. This monitor has a variety of embedded modules including HDMI decoder, HDMI extender, multi-monitor OSD controller, and 3G-SDI input. These optional embedded modules give you the ability to remotely manage video and transmission for multiple monitors over a network. With reduced energy and a fanless architecture, the APW4017 provides professional-use durability and around-the-clock operation.
Loading...
15.6

APW4015

23

APW4023

APW4017

  • 17.3" 4K UHD industrial LCD monitor
  • Supports 3840 x 2160 native resolution
  • DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
  • Option for 3G-SDI input or MCS multi-display control
  • Option for Resistive or PCAP touch screen - USB
  • Option for video decoding capability up to 1080P
  • PIP sub-screen & PBP dual-screen viewing efficiency
  • VESA (100 x 100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$1,564.00
Availability: In stock
SKU
APW4017
Email
17.3" 3840 x 2160 4K LED backlight LCD monitor with DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, aluminum front bezel, and panel or VESA (100mm) mount.
Material
8mm aluminum front bezel
Rear rugged metal enclosure
Option for IP65 / NEMA4 front bezel
LCD Panel
Size: 17.3 inch
Native Resolution: 3840 x 2160
Brightness (cd/m²): 400
Contrast Ratio (type): 1000:1
Colors; 16.7 M, 8-bit
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 16
Dot Pitch (mm): 0.0995
Display Area (mm): 382.12H x 214.94V
Surface Treatment: Anti-glare
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 15,000
Video Input
Standard: DP 1.2 + HDMI 1.4 + HDMI 2.0
Option: 3G-SDI or MCS multi-display control
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Lockable USB connector
HDMI Modules (Option)
HDMI Decoder Module 1080P over IP
HDMI Receiver Module 1080P
HDMI Quad Display Module 1080P
Rear Panel
Power on/off switch & OSD membrane switch
OSD Menu Control
OSD membrane switch control for Picture, Position, Color, OSD Set, Reset, PIP, and MISC
Mounting Type
VESA (100 x 100mm) mount
Cable
1 x DP cable included
1 x Power adapter included
1 x Power cord included
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 21W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Weight
11.4 lb / 5.2 kg

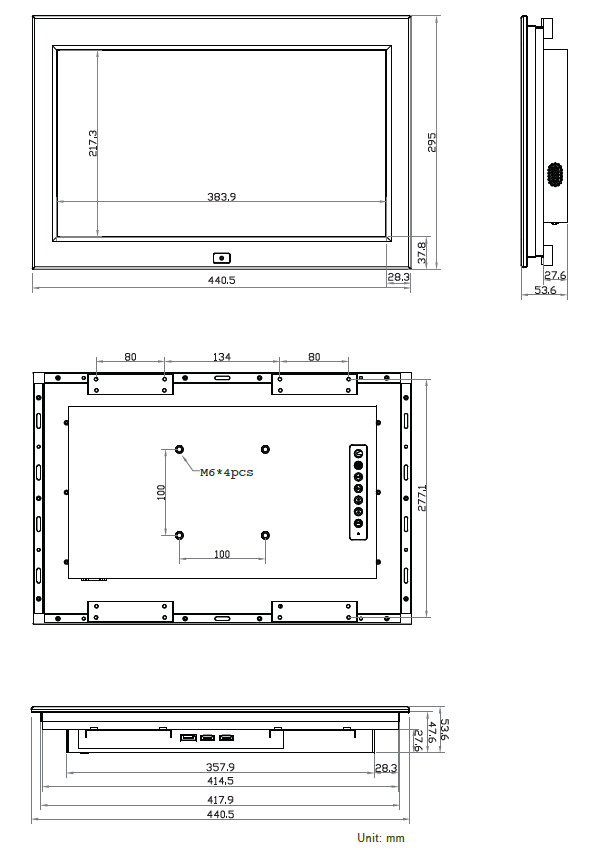

Dimension
17.3"(W) x 2.1"(D) x 11.5"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

APW4017:
17.3" 4K UHD industrial LCD monitor, 3840 x 2160 native resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 input, 100/240VAC power input, VESA (100 x 100mm) mount, aluminum front bezel, Black color.

Document
Description
Download Link
file iconAPW4017-SP(V1-2).pdf
Spec Sheet
file iconAPW4017-UM.pdf
User Manual
  • APW4017
    17.3" 4K UHD industrial LCD monitor
    Supports 3840 x 2160 native resolution
    DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
    Option for 3G-SDI input or MCS multi-display control
    Option for Resistive or PCAP touch screen - USB
    Option for video decoding capability up to 1080P
    PIP sub-screen & PBP dual-screen viewing efficiency
    VESA (100 x 100mm) mount ready
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Starting at:
    $1,564.00
APW4017
$1,564.00

PRODUCT DESCRIPTION
Industrial grade panel mount monitor with 3840 x 2160 4K display resolution designed to satisfy a wide range of industrial, commercial, broadcast, and military requirements. APW4017 features a 17.3" Full HD 1080P widescreen TFT LCD with 400nit brightness, 1000:1 contrast ratio, 16.7 million colors, and has a viewing angle of 89° vertically and horizontally.  The video input incorporates DP 1.2 (3840 x 2160, 60Hz) and HDMI 2.0 (3840 x 2160, 60Hz)  / 1.4 (3840 x 2160, 30Hz) video input signals and offers on-screen display allowing users to adjust display characteristics or select viewing options with a touch of a button. The panel housing comes with an 8mm aluminum front bezel and has the option for IP65 sealed protection against dust and water. This rugged panel monitor is ready for panel or VESA mounting that will fit into any of your applications. The internal power supply module includes an external 100/240VAC power adapter with an option for 12/24/48/125V DC power input. Acnodes Corp has designed the APW4017 to operate in a wide range of temperatures from 0°C to 55°C, making it ideal for industrial applications and control room projects. This unit offers a wealth of value-added optional features such as resistive or capacitive-type touch screen, TV tuner, MCS control, and various video inputs including 3G/HD/SD-SDI. Weighing at 11.4 pounds and with dimensions of 17.3"(W) x11.5"(H) x 2.1"(D), APW4017 can withstand operating temperatures of 32°F to 122°F and storage temperatures of 23°F to 140°F.
