The APW4015 is a 15.6" 4K UHD industrial LCD monitor featuring 3840 x 2160 native resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, VESA mount, and a rugged aluminum front bezel ensuring high mobility. This monitor has a variety of embedded modules including HDMI decoder, HDMI extender, multi-monitor OSD controller, and 3G-SDI input. These optional embedded modules give you the ability to remotely manage video and transmission for multiple monitors over a network. With reduced energy and a fanless architecture, the APW4015 provides professional-use durability and around-the-clock operation.
Loading...
17.3

APW4017

APW4015

  • 15.6" 4K UHD industrial LCD monitor
  • Supports 3840 x 2160 native resolution
  • DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
  • Option for 3G-SDI input or MCS multi-display control
  • Option for Resistive or PCAP touch screen - USB
  • Option for video decoding capability up to 1080P
  • PIP sub-screen & PBP dual-screen viewing efficiency
  • VESA (100 x 100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$1,012.00
Availability: In stock
SKU
APW4015
Email
15.6" 3840 x 2160 4K LED backlight LCD monitor with DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, aluminum front bezel, and panel or VESA (100mm) mount.
Construction
8mm aluminum front bezel
Rear rugged metal enclosure
Option for IP65 / NEMA4 rated front bezel
LCD Panel
Size: 15.6 inch
Native Resolution: 3840 x 2160
Brightness (cd/m²): 300
Contrast Ratio (typ.): 800:1
Colors: 16.7 M, 8-bit
Viewing Angle (H/V): 178°x 178°
Response Time (ms): 30
Dot Pitch (mm): 0.0897
Display Area (mm): 344.448H x 193.752V
Surface Treatment: Anti-glare
Surface Hardness: 3H
Backlight Type: 3H
MTBF (hrs): 20,000
Video Input
Standard: DP 1.2 + HDMI 1.4 + HDMI 2.0
Option: 3G-SDI or MCS multi-display control
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Lockable USB connector
HDMI Modules (Option)
HDMI Decoder Module 1080P over IP
HDMI Receiver Module 1080P
HDMI Quad Display Module 1080P
Rear Panel
Power on/off switch & OSD membrane switch
OSD Menu Control
OSD membrane switch control for Picture, Position, Color, OSD Set, Reset, PIP, and MISC
Mounting Type
VESA (100 x 100mm) mount
Cable
1 x 6ft DP cable included
1 x Power adapter included
1 x Power cord included
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 12W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Weight
10.3 lb / 4.7 kg

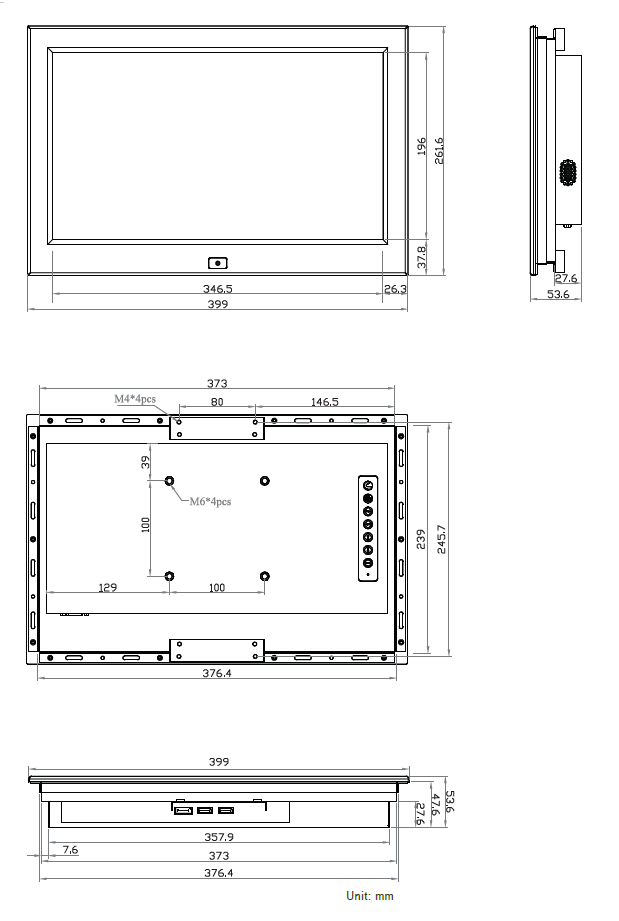

Dimension
15.7"(W) x 2.1"(D) x 10.3"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

APW4015:
15.6" 4K UHD industrial LCD monitor, 3840 x 2160 native resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 input, 100/240VAC power input, VESA (100 x 100mm) mount, aluminum front bezel, Black color.

Document
Description
Download Link
file iconAPW4015-SP(V1-2).pdf
Spec Sheet
file iconAPW4015-UM.pdf
User Manual
  • APW4015
    15.6" 4K UHD industrial LCD monitor
    Supports 3840 x 2160 native resolution
    DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
    Option for 3G-SDI input or MCS multi-display control
    Option for Resistive or PCAP touch screen - USB
    Option for video decoding capability up to 1080P
    PIP sub-screen & PBP dual-screen viewing efficiency
    VESA (100 x 100mm) mount ready
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Starting at:
    $1,012.00
APW4015
$1,012.00

PRODUCT DESCRIPTION
Industrial-grade panel mount LCD monitor supports 3840 x 2160 resolution and an 8mm aluminum front bezel. The monitor features a fanless design and durable chassis that makes it suitable for use in a wide range of applications including industrial, commercial, broadcast, and military requirements. The monitor comes with a 15.6 inch 4K widescreen TFT LCD that supports 300-nit brightness, 800:1 contrast ratio, 16.7 million colors, and a viewing angle of 89° vertically and horizontally. The video input incorporates DP 1.2 (3840 x 2160, 60Hz) and HDMI 2.0 (3840 x 2160, 60Hz)  / 4.0 (3840 x 2160, 30Hz) video input signals and offers on-screen display allowing users to adjust display characteristics or select viewing options with a touch of a button. The panel housing comes with an aluminum front bezel and has the option for IP65 sealed protection against dust and water. This rugged panel monitor is ready for panel or VESA mounting that will fit into any of your applications. The internal power supply module includes an external 110/240V AC power adapter with an option for 12/24/48V DC power input. Acnodes designed the APW4015 to operate in a wide range of temperatures from 0 - 50°C, which makes it ideal for industrial applications and control room projects. This unit also offers a wealth of value-added optional features such as resistive touch screen integration, TV tuner, MCS control, and various video inputs including 3G/HD/SD-SDI. Weighing at 10.3 pounds and with dimensions of 15.7"(W) x 10.3"(H) x 2.1"(D), it can withstand operating temperatures of 0°C to 55°C and storage temperature of -20°C  to 60°C. The monitor is powered by external auto-sensing 100 to 240VAC, 50/60Hz power adapter.
