The APW4013 is a 13.3" industrial LCD monitor featuring 3840 x 2160 4K resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, panel or VESA mount, and a rugged aluminum front bezel ensuring high mobility. This monitor has a variety of embedded modules including HDMI decoder, HDMI extender, multi-monitor OSD controller, and 3G-SDI input. These optional embedded modules give you the ability to remotely manage video and transmission for multiple monitors over a network. With reduced energy and a fanless architecture, the APW4013 provides professional-use durability and around-the-clock operation.
Loading...
31.5

APW4032

APW4013

  • 13.3" 4K UHD industrial LCD monitor
  • Supports 3840 x 2160 native resolution
  • DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
  • Option for 3G-SDI input or MCS multi-display control
  • Option for Resistive or PCAP touch screen - USB
  • Option for video decoding capability up to 1080P
  • PIP sub-screen & PBP dual-screen viewing efficiency
  • VESA (100 x 100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$838.00
Availability: In stock
SKU
APW4013
Email
13.3" industrial LCD monitor with 3840 x 2160 4K UHD resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, VESA (100mm) mount, and rugged aluminum front bezel.
Construction
8mm aluminum front bezel
Rear rugged metal enclosure
Option for IP65 / NEMA4 rated front bezel
LCD Panel
Size: 13.3 inch
Native Resolution: 3840 x 2160
Brightness (cd/m²): 340
Contrast Ratio (typ.): 1500:1
Colors: 16.7 M, 8-bit
Viewing Angle (H/V): 178°x 178°
Response Time (ms): 29
Dot Pitch (mm): 0.0765
Display Area (mm): 293.76H x 165.24V
Surface Treatment: Glare
Surface Hardness: 3H
Backlight Type: 3H
MTBF (hrs): 15,000
Video Input
Standard: DP 1.2 + HDMI 1.4 + HDMI 2.0
Option: 3G-SDI or MCS multi-display control
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Lockable USB connector
HDMI Modules (Option)
HDMI decoder module 1080P over IP
HDMI receiver module 1080P
HDMI quad display module 1080P
Rear Panel
Power on/off switch
OSD membrane switch
OSD Menu Control
OSD membrane switch control for Picture, Position, Color, OSD Set, Reset, PIP, and MISC
Mounting Type
VESA (100 x 100mm) mount
Cable
1 x 6ft DP cable included
1 x Power adapter included
1 x Power cord included
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 9W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Weight
TBD

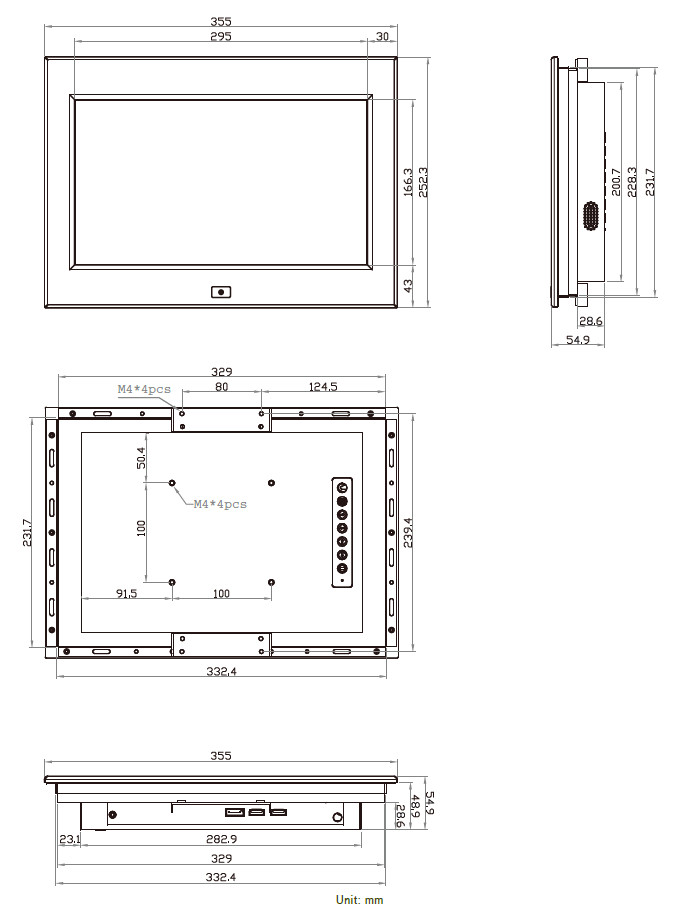

Dimension
14"(W) x 2.2"(D) x 9.9"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

APW4013:
13.3" 4K UHD industrial LCD monitor, 3840 x 2160 native resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 input, 100/240VAC power input, VESA (100 x 100mm) mount, aluminum front bezel.

Document
Description
Download Link
file iconAPW4013-SP.pdf
Spec Sheet
  • APW4013
    13.3" 4K UHD industrial LCD monitor
    Supports 3840 x 2160 native resolution
    DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
    Option for 3G-SDI input or MCS multi-display control
    Option for Resistive or PCAP touch screen - USB
    Option for video decoding capability up to 1080P
    PIP sub-screen & PBP dual-screen viewing efficiency
    VESA (100 x 100mm) mount ready
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
