Panel mount monitor with a 55 inch full HD monitor and -20° to 50°C wide range working temperature in a fully IP65 rated anti-corrosion stainless steel enclosure.

Skip to the beginning of the images gallery

PM-S0170

AP-S2014

APS9550

Fully IP65 rated anti-corrosion stainless steel enclosure
55 inch 1920 x 1080 full HD LED backlight monitor
450-nits high brightness LCD panel with protective glass
-20 to 50 degree C wide range working temperature
VGA + DVI video input, option for HDMI port, and stereo speaker
Wall/VESA mount ready
110~240V AC power input

$4,085.00

Availability: In stock

SKU

APS9550

55 inch 1920 x 1080 450-nit LCD with VGA + DVI port and -20 to 50°C wide range working temperature integrated into a fully IP65 rated anti-corrosion stainless steel enclosure and protective glass. Option for HDMI video input and stereo speaker.

Specification

Material: Heavy duty steel

LCD Panel: Size: 55”
Max. Resolution: 1920 x 1080
Brightness: 450 cd/m^2
Contrast Ratio: 5000:1
Viewing Angle (H/V): 178'(H)/ 178'(V)
Active Area (mm): 1209.6 x 680.4
Pixel Pitch (mm): 0.63 x 0.63
Colors: 1073M, 8-bits/color

Video input: 1 x VGA video input
1 x DVI video input

Mounting Type: Wall / VESA mounting holes

Connectors: 1 x VGA
1 x DVI
1 x HDMI (Optional)
1 x AC power input

Power supply: 110~240V AC, Universal +/-10%
Power Consumption: 110W

Dimension: 51.69"(W) x 30.87"(H) x 3.94"(D)

Environmental: Operating: -20°C to 50°C (-4°F to 122°F)
Storage: -30°C to 70°C (-22°F to 158°F)
Humidity: 10% - 95%, non-condensing

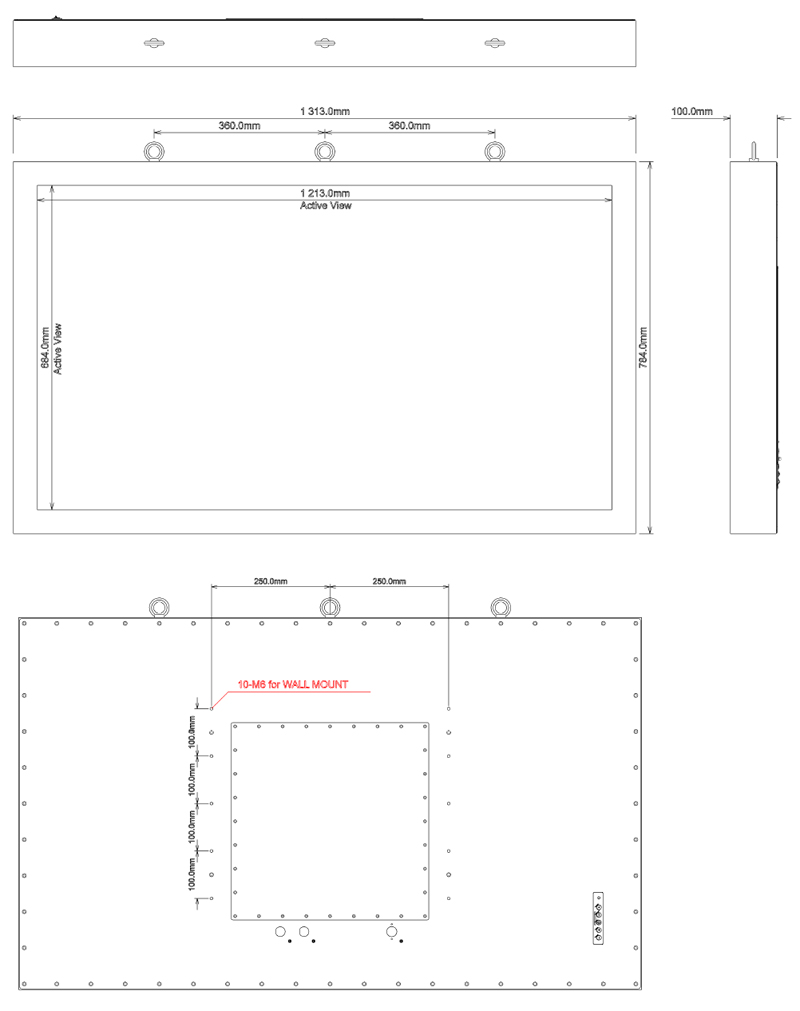

Dimensions

Order Info

APS9550:
55 inch 1920 x 1080 450-nit high brightness LCD panel monitor, fully IP65 rated, VGA + DVI video input, silver color. Option for HDMI video input and stereo speaker

Downloads

Document

Description

Download Link

APS9550-SP.pdf

Spec Sheet

Configure Now

APS9550

55 inch 1920 x 1080 full HD industrial monitor
VGA + DVI video input
Option for HDMI video input
-20 to 50 degree C wide range working temperature
Stainless steel rugged enclosure
Protective glass for LCD protection
full IP65 rated front bezel and back enclosure
VESA mount ready
110/220VAC 110W power input
1 x 6 ft IP65 DVI and VGA cable
1 x 6ft IP65 AC power cable

Starting at:
$4,085.00

APS9550

$4,085.00

LCD monitor

55" 1920 by 1080 wide screen LCD monitor

Video Input

VGA + DVI

VGA + DVI + HDMI + $150.00

Qty:

PRODUCT DESCRIPTION
A washdown panel mount monitor comes with a 55-inch rugged LCD display monitor that is fully sealed in an easy-to-clean stainless steel chassis with an IP65 ingress protection rating. Its IP65 sealed stainless steel enclosure with an anti-corrosive coating provides the APS9550 with 360 degrees of protection which makes it an ideal solution for diverse applications in harsh environments where hygiene is essential. The 55-inch industrial LCD display offers 1920 x 1080 full HD resolutions, 450 nits of brightness, 5000:1 contrast ratio, and 1.07 billion true colors for outstanding viewing ability. Its built-in monitor also comes with an 8mm thick protective glass to protect itself from scratching and damage. To meet the demand of multimedia applications, the video input ports incorporate VGA, DVI-D, and an optional HDMI video input signals with the auto-detect video input function. All I/O connectors and cables are fully IP65 rated to protect the monitor from any particles, water, and corrosive agents, making it a durable and reliable solution. It is also designed to withstand temperature extremes and other typical conditions encountered on factory floors. This panel monitor has been proven to work well in environments with temperature ranging from -14°F to 122°F (-20°C to +50°C). Moreover, to meet the requirements of unstable electricity environments, the system supports wide voltage power inputs from 110 ~ 240V AC. This unit is also equipped with VESA mounting patterns that can be used on wall and panel mounting applications which facilitates fast and easy monitor installation and removal. The APS9550, like all other panel mount monitors by Acnodes, can be directly connected to industrial processing machines, automation systems, and control systems, perfect for operator control and monitoring.

APS9550: 55” stainless steel panel mount monitor comes with an LCD supporting 1920 x 1080 full HD resolution, fully IP65 rated stainless steel enclosure, VGA + DVI-D video input, and 110-240V AC power input. Option for HDMI video input.
