Panel mount steel monitor with a 15 inch industrial LCD and fully IP65 rated water proof stainless steel enclosure and front bezel.
APS9019

APS9019

APS9119

APS9119

APS9115

  • Fully IP65 rated stainless steel enclosure and front bezel
  • Waterproof connector and cable
  • 2.09" short depth rugged construction
  • 15 inch 1024 x 768 industrial monitor
  • Option for GFG or resistive type touch screen
  • VGA video port, Option for DVI port
  • VESA (75mm) mount ready
  • Wide range 11~32V DC power input, with external power adapter
$1,095.00
Availability: In stock
SKU
APS9115
Panel mount monitor a 15 inch 1024 x 768 industrial LCD with VGA video input, has fully IP65 rated waterproof stainless steel enclosure and front bezel, and ready for VESA mount. Option for GFG or resistive type touch screen.
Material
Fully IP65 rated stainless steel enclosure and front bezel
LCD Panel
Size: 15 inch
Max Resolution: 1024 x 768
Brightness: 350
Contrast Ratio (typ) : 800:1
Viewing Angle (H/V): 150° x 140°
Colors: 16.7M
Signal Input: VGA
MTBF (hrs): 50,000
Video input
VGA video input
Option for DVI video input
Touch screen monitor (Option)
Resistive type 15 inch touch screen monitor
Glass Film Glass 15 inch touch screen monitor
Rear Panel control
OSD membrane switch
Mounting Type
VESA (75mm) mount
Connectors
1 x VGA port
1 x 3-pin IP67 rated terminal block DC power connector
Power supply
11~32V DC / Max:17.6W@12V
Weight
14.99lbs

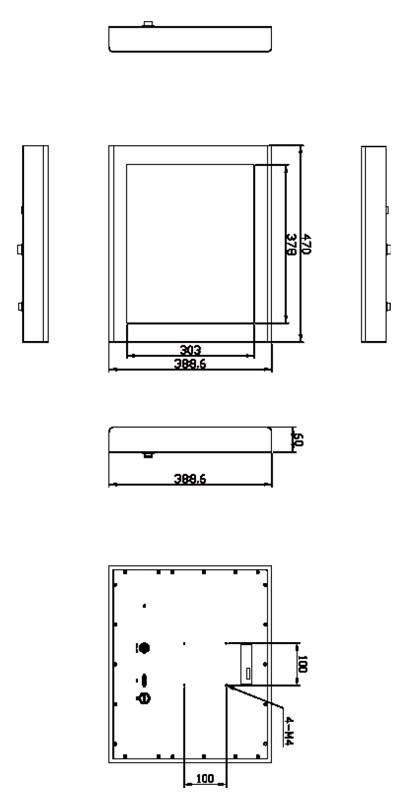

Dimension
15.71"(W) x 12.76"(H) x 2.09"(D)
Environmental
Operating: 0°C to 50°C
Storage: -20°C to 60°C
Relative humidity: 10~90%, @40°C non-condensing
Certification
CE/FCC Class A

APS9115:
15 inch 1024 x 768 industrial LCD monitor with fully IP65 rated waterproof stainsteel steel chassis & front panel. VGA video input.Price start from: $1,095.00

Document
Description
Download Link
file iconAPS9115-SP.pdf
Spec Sheet
file iconAPS9115-UM.pdf
User Manual
