23-inch 1920 x 1200 WUXGA panel mount monitor comes with 6mm thick aluminum front bezel, DVI-D + HDMI + BNC + S-Video, Audio, remote control & Panel or VESA (100mm) mount.
APM6230
- 23" LED, 3840 x 2160 native UHD resolution
- 1920 x 1080 & 1920 x 1200 resolution support
- 1.07 Billion colors (10-bit) / 310 cd/m² brightness
- PIP Sub-screen & PBP Dual-screen viewing efficiency
- Video decoding capability up to 1080p (option)
- Rugged structure ensures high mobility
- NEMA4 / IP65 front protection (option)
Availability:
In stock
SKU
APM6230
23-inch 1920 x 1200 WUXGA panel mount monitor comes with 6mm thick aluminum front bezel, DVI-D + HDMI + BNC + S-Video, Audio, remote control & Panel or VESA (100mm) mount.
- Construction
- 6mm Aluminum Front Bezel
NEMA4 / IP65 LED display panel (option)
- LCD panel
- Size: 23 inch
Max Resolution: 3840 x 2160
Brightness: 310
Contrast Ratio (typ) : 1000:1
Viewing Angle (L/R/U/D): 89° x 89° x 89° x 89°
Active Area (mm): 527.04 x 296.46
Colors: 1.07B
Backlight: LED
MTBF (hrs): 30,000
- Video input
- Option for video input
DP 1.2 + HDMI 1.4 + HDMI 2.0 + 3G / HD / SD-SDI + MCS (Multi-display control solution)
- HDMI decoder (option)
- Embedded HDMI decoder module 1080p over IP
Standalone HDMI encoder
- HDMI receiver (option)
- Embedded HDMI receiver module 1080p
Standalone HDMI transmitter
- Touch screen monitor
- InfraRed 6-point
23 inch touch screen monitor Resistive 1-point
- Connector
- 1 x HDMI
Optional MIL-type lockable male jack for DC
Optional lockable male jack for DC / USB (touch screen monitor only) connector
- Front panel control
- power on/off switch
OSD membrance switch
- Power adapter
- External Auto-sensing 100 to 240VAC, 50 / 60Hz power adapter
Consumption: Max. 45 Watt, Power saving 9 Watt
Option for 12V, 24V, 48V, or 125V DC power input
- Mounting

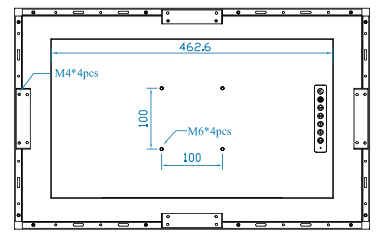

- 100 x 100mm Vesa Mount r
With bundled Panel Mount and Option Desktop stand
- Environmental
- Operating: 0 to 55°C Degree
Storage: -20 to 60°C Degree
Relative humidity: 5~90%, non-condensing
Shock: 10G acceleration (11 ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
- Weight
- Net weight: 19.8lbs
Gross weight: 27.9lbs

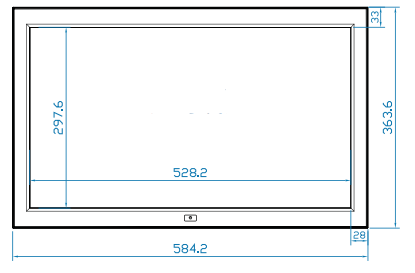

- Dimension
- Product: 23" (W) x 2.5" (D) x 14.3" (H)
Packing: 25.9" (W) x 4.6" (D) x 25.2" (H)
- Casing Color
- Black front panel (RAL 9005)
Black rear case (RAL 9005)
- Regulatory
- FCC, CE/LVD, RoHS2, & REACH
APM-6230:
23 inch 3840 x 2160 military grade LED industrial monitor, P-cap or e-resistive type touch screen, 6mm aluminum front bezel with IP65 rated front bezel, DVI-I, SDI, & HDMI video input, wide working temperature & 12 to 125V DC power input.
Price: call for the price
Document
Description
Download Link
APM6230 Spec Sheet.pdfSpec Sheet
APM6230 User Manual.pdfUser Manual
-
