The APM5104 is a 10.4" industrial LCD monitor supporting 800 x 600 resolution and VGA video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APM5104 is equipped with a variety of optional features and modules including IP65 rated front bezel, touch screen technology embedded modules, and DC power input.
Loading...
19

APM5190

12.1

APM5120

APM5104

  • 10.4" industrial LCD monitor
  • Supports 800 x 600 native resolution
  • VGA video input
  • Option for HDMI, Audio, 3G-SDI, or MCS
  • Option for Resistive or PCAP touch screen - USB
  • Option for front IP65 / NEMA4 rated protection
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$640.00
Availability: In stock
SKU
APM5104
Email
10.4" industrial LCD monitor supporting 800 x 600 native resolution, VGA video input, VESA (75 x 75mm) mount, 100/240VAC power input, and an aluminum front bezel.
Material
8mm aluminum front bezel
Rear rugged heavy-duty metal construction
Option for IP65/NEMA4 rated front bezel
LCD Panel
Size: 10.4 inch
Native Resolution: 800 x 600
Brightness (cd/m²): 230
Contrast Ratio (typ) : 500:1
Colors: 262 K
Viewing Angle (H/V): 160° x 130°
Response Time (ms): 35
Dot Pitch (mm); 0.213
Display Area (mm): 211.2H x 158.4V
Surface Treatment: Anti-glare
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 30,000
Video input
Standard: VGA
Option: DVI-D, HDMI, Audio, 3G-SDI, or MCS multi-display control
Touch screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Lockable USB connector
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
VESA (75 x 75mm) mount
Cable
1 x 6ft VGA cable included
1 x Power adapter included
1 x Power cord included
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 11W, Standby 4W
Option for 12V / 24V / 48V /125V DC power input
Weight
5.7 lb / 2.6 kg

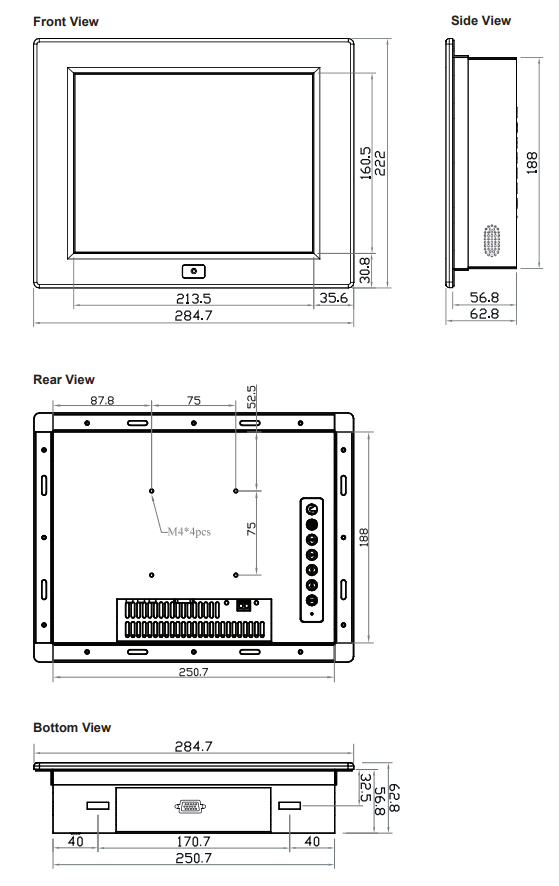

Dimension
11.2"(W) x 2.5"(D) x 8.7"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

APM5104:
10.4" industrial LCD monitor, 800 x 600 native resolution, VGA video input, VESA (75 x 75mm) mount, 100/240VAC power input, aluminum front bezel, Black color.

Document
Description
Download Link
file iconAPM5104-SP.pdf
Spec Sheet
file iconAPM5104-UM.pdf
User Manual
file iconTouch Screen Calibration Guide.pdf
Touch Screen Calibration Guide
  • APM5104
    10.4" industrial LCD monitor
    Supports 800 x 600 native resolution
    VGA video input
    Option for HDMI, Audio, 3G-SDI, or MCS
    Option for Resistive or PCAP touch screen - USB
    Option for front IP65 / NEMA4 rated protection
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
    $640.00
APM5104
$640.00

PRODUCT DESCRIPTION
APM5104 is a 10.4-inch industrial panel mount monitor supporting 800 x 600 resolutions, VGA video input, external 100/220VAC power adapter, anti-vibration, and anti-shock features. The 10.4-inch monitor displays a resolution of 800 x 600, 230-nits brightness, 500:1 contrast ratio, 211 x 158 mm active area, 262K colors, LED backlight, and MTBF (mean time between failures) at 30,000 hours. The option for a resistive or capacitive type touch screen is available to add on. The built is of 6mm aluminum front bezel, 3mm protective glass, and rear rugged heavy-duty metal construction. The option for IP65 / NEMA4 front bezel is available for added protection against liquids and contaminants. The operating temperature can withstand from 32°F to 122°F (0°C to 50°C) and relative humidity of 5~90%, non-condensing. The shock resistance is at 10G acceleration (11 ms duration) and the vibration resistance is at 10~300Hz 0.5G RMS random vibration. The compact dimension is 11.2"(W) x 2.5"(D) x 8.7"(H)  and the light weight of 5.7 lb (2.6 kg). The mounting type is a panel or VESA mount. The connectors include a VGA port with the option for HDMI, Audio, 3G-SDI, or MCS multi-display control. The power supply is of external auto-sensing 100 to 240VAC, 50/60Hz power adapter with the option for 12V / 24V / 48V / 125V DC power input.
