The APH9190 is a 19" widescreen high brightness sunlight readable monitor supporting 1440 x 900 resolution, 1000-nits high brightness display, and VGA + HDMI(no speaker) video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, a sunlight-readable display, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APH9190 is equipped with a variety of optional features and modules including IP65 rated front bezel, Resistive touch screen, auto or manual dimming, additional video signals, MCS multi-screen control, and DC power input.

Loading...
19

APH8190

21.5

APH9220

APH9190

  • 19" widescreen high brightness industrial LCD monitor
  • Supports 1440 x 900 native resolution
  • 1000-nits high brightness sunlight readable display
  • VGA + HDMI(no speaker) video input
  • Option for BNC, Audio, 3G-SDI, or MCS control
  • Option for Resistive 1-pt touch screen - USB
  • VESA (100 x 100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$1,308.00
Availability: In stock
SKU
APH9190
Email

19" widescreen sunlight readable display with 1440 x 900 resolution, VGA + HDMI(no speaker) input, panel or VESA mount (100mm) mount, 100/240VAC power input, and an aluminum front bezel.

Material
8mm aluminum front bezel
Rear rugged heavy-duty metal construction
Option for IP65 / NEMA 4 rated front bezel
LCD Panel
Size: 19 inch
Native Resolution: 1440 x 900
Brightness (cd/m²): 1000
Contrast Ratio (typ): 1000:1
Colors: 16.7 M
Viewing Angle (H/V): 160° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.2835
Display Area (mm): 408.24H x 255.15V
Surface Treatment: Haze 25%, Hard-coating
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 50,000
Video input
Standard: VGA + HDMI(no speaker)
Option: BNC, 3G-SDI input, or MCS multi-display control
Touch screen (Option)
Resistive 1-pt touch screen - USB port
Lockable USB connector
Dimming (Option)
Auto dimming or Dimming switch with IP54 protection
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
VESA (100 x 100mm) mount
Cable
1 x 6ft VGA cable included
1 x Power adapter
1 x Power cord
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 34 Watt, Standby 4 Watt
Option for 12V / 24V / 48V / 125V DC power input
Weight
15.4 lb / 7 kg

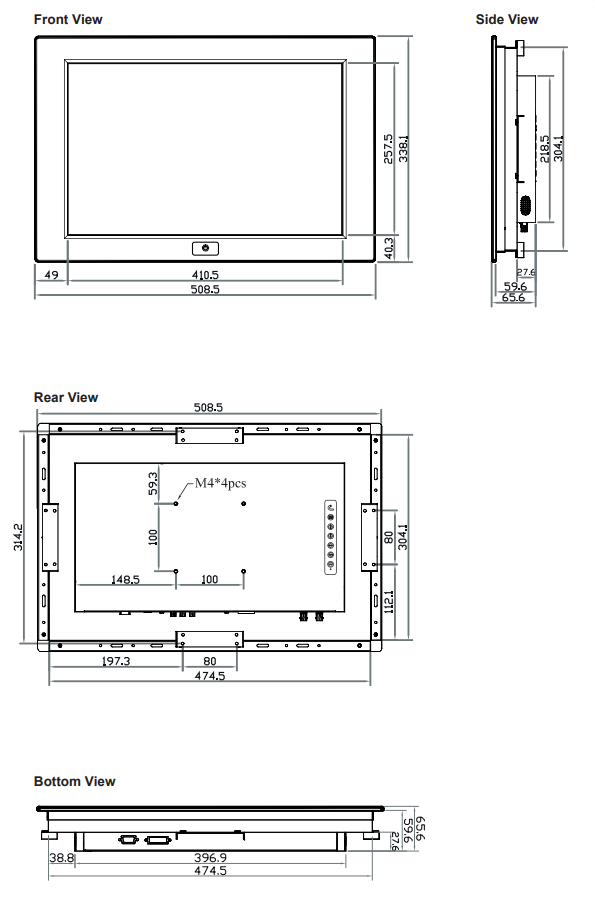

Dimension
20"(W) x 2.6"(D) x 13.3"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

APH9190:
19" high brightness panel mount monitor, 1440 x 900 native resolution, 1000-nits high brightness panel, VGA + HDMI(no speaker) video input, VESA (100 x 100mm) mount, 100/240VAC power input, aluminum front bezel, Black color.

Document
Description
Download Link
file iconAPH9190-SP.pdf
Spec Sheet
file iconAPH9190-UM.pdf
User Manual
file iconMCS-UM.pdf
MCS User Manual
  • APH9190
    19" widescreen high brightness industrial LCD monitor
    Supports 1440 x 900 native resolution
    1000-nits high brightness sunlight readable display
    VGA + HDMI(no speaker) video input
    Option for BNC, Audio, 3G-SDI, or MCS control
    Option for Resistive 1-pt touch screen - USB
    VESA (100 x 100mm) mount ready
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Starting at:
    $1,308.00
APH9190
$1,308.00

PRODUCT DESCRIPTION
The APH9190 is a widescreen industrial LCD monitor with high brightness of 1000 nits, ideal for operation in direct sunlight and high ambient light conditions. For added protection, the durable heavy-duty steel monitor has anti-shock and anti-vibration features. The built is of rear rugged heavy-duty metal construction with 6mm aluminum front bezel and of 2.6-inch short depth rugged metal construction. The dimension of 20"(W) x 13.3"(H) x 2.6"(D) at 11 lbs creates an easy installation for wall or VESA mounting. The operational temperature can withstand a range from 32°F to 122°F (0°C to 50°C) and relative humidity of 5~90%, non-condensing. The shock resistance is of 10G acceleration (11 ms duration) and vibration resistance of 5~500Hz 1G RMS. With a 19 inch widescreen LCD display, it presents a maximum resolution of 1440 x 900, a contrast ratio of 1000:1, and 1000-nits brightness. These features create a luminous high image quality. The LCD panel also has 16.7 million colors, LED backlight, and MTBF (mean time between failures) at 50,000 hours. The signal input is VGA and DVI-D. Option for HDMI, DP, Audio, 3G/HD/SD-SDI input, and Remote Control. The OSD membrane controls for brightness, contrast, phase and clock, color, H & V position, and auto-tune. It has an option for MCS multi-display OSD menu control with an RS-232 link port and two RJ-45 in/out ports. It can cascade up to 64 monitors. The OSD membrane switch is located on the rear panel along with the power on and off switch. APH9190 accepts VGA and HDMI(no speaker) video input. It has options for a set of VGA + DVI + BNC + S-Video + Audio + remote controller or VGA with Speaker + BNC + S-Video + Audio + remote controller. The power supply uses external auto-sensing 100 to 240VAC, 50/60Hz power input with the option for 12V / 24V / 48V / 125V DC power input.
