The APH8185 is an 18.5" high brightness sunlight readable monitor supporting 1920 x 1080 FHD resolution, 1000-nits high brightness display, and VGA + HDMI(no speaker) video input. Designed for harsh environments, the display features an IP65-rated aluminum front bezel, an I/O cover for safety and dustproof protection, and a wide working temperature range from -10°C to 55°C. Options are available for a Resistive or Capacitive touch screen and S-Video + Composite video input.

21.5

APH9220

7

APH8070

APH8185

  • 18.5" high brightness industrial LCD monitor
  • Supports Full HD (1920 x 1080) native resolution
  • 1000-nits high brightness sunlight readable display
  • VGA + HDMI(no speaker) video input
  • Option for S-Video + Composite
  • Panel or VESA (75mm / 100mm) mount ready
  • -10°C to 55°C wide range working temperature
  • 12V DC power input with external AC power adapter
$1,196.00
Availability: In stock
SKU
APH8185

18.5" sunlight-readable display with 1920 x 1080 FHD resolution, VGA + HDMI(no speaker) input, panel or VESA mount, 12VDC power input, and an IP65-rated aluminum front bezel.

Material
IP65 rated aluminum front bezel
LCD Panel
Size: 18.5 inch
Max Resolution: 1920 x 1080
Brightness (cd/m²): 1000
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): 178° x 178°
Active Area (mm): 409.8 x 230.4
Pixel Pitch (mm): 0.3 x 0.3
Colors: 16.7M, 6 bits + FRC
Backlight: LED
Video input
VGA + HDMI(no speaker) video input
Option for
OSD menu control
OSD Input: 5-key OSD buttons
OSD function: Contrast, Color, Position, Auto-adjustment, Factory Setting
Touch screen (Option)
Resistive or Capacitive touch screen - USB
Connector
1 x VGA D-Sub 15 pin
1 x DVI-I input
1 x HDMI (no speaker) input (Option)
1 x S-Video, Composite (Option)
1 x USB for touch screen (Option)
1 x DC input w/ external power adapter
Mounting Type
Panel mount or VESA (75 x 75mm / 100 x 100mm) mount
Power supply
Input: 12V DC power input with external AC power adapter
Consumption: 20 W typical, normal operation
Weight
17.64 lb / 8.0 kg

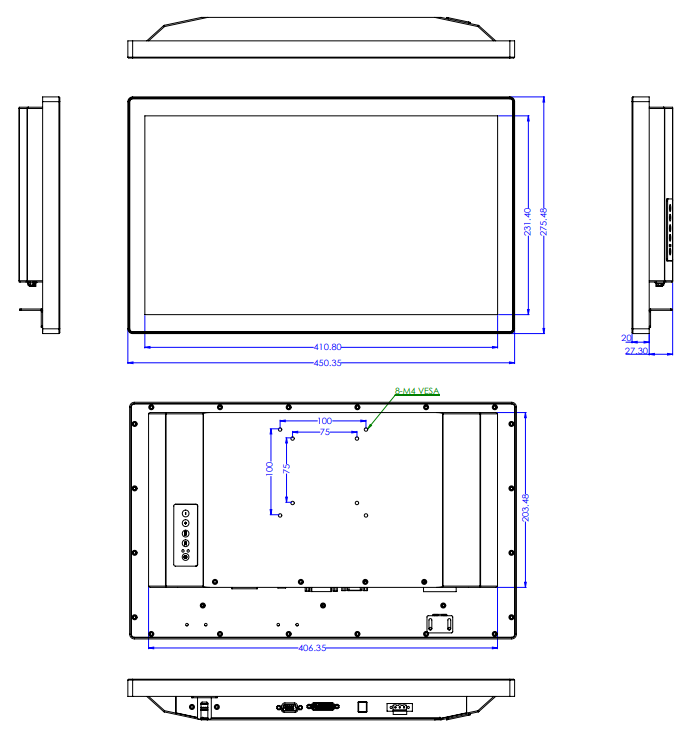

Dimension
17.73"(W) x 10.85"(H) x 1.07"(D)
Environmental
Operating Temperature: -10°C to 55°C
Storage Temperature: -30°C to 80°C
Relative Humidity: 10~95%, non-condensing
Shock: 15G acceleration (11 ms duration)
Vibration: 5~500Hz / 1 Grms / 3 Axis

APH8185:
18.5" panel mount monitor, 1920 x 1080 FHD resolution, 1000-nits high brightness panel, VGA + HDMI(no speaker) video input, panel or VESA mount ready, 12VDC power input with external AC power adapter, IP65 rated aluminum front bezel, Black color.

Estimated Lead Time: 12~14 weeks

Document
Description
Download Link
file iconAPH8185-SP.pdf
Spec Sheet
file iconAPH8185-DIM.pdf
Dimension
file iconAPH8185-OSD.pdf
OSD Manual
