Industrial monitor with an 18.5 inch 1366 x 768 resistive type touchscreen display, VGA + DVI + HDMI + DP video input, and panel or VESA (100mm) mounting holes. The monitor features an aluminum die-casting chassis and IP66 rated waterproof flat front bezel. Option for Projected Capacitive type touch screen and 1000-nits high brightness.
Loading...
21.5

APA9215

15.6

APA9156

APA9185

  • Aluminum die-casting chassis
  • Features flat front bezel with IP66 design
  • 18.5 inch 1366 x 768 Resistive type touch screen monitor
  • 2.36" short depth metal rugged construction
  • Option for Projected Capacitive type touch screen
  • VGA, DVI, HDMI, and DP video input
  • Panel mount or VESA (100mm) mount ready
  • 9 to 36V DC power input w/ external AC power adapter
$1,100.00
Availability: In stock
SKU
APA9185
Email
18.5" 1366 x 768 resistive type touchscreen monitor with VGA + DVI + HDMI + DP video input, IP66 rated flat front bezel, and 9 to 36V DC power input with external AC power adapter.
Material
Solid aluminum die-casting chassis
IP66 compliant flat front panel
LCD Panel
Size: 18.5 inch
Max Resolution: 1366 x 768
Brightness (cd/m²): 300
Contrast Ratio (typ) : 1000:1
Viewing Angle (H/V): 170° x 160°
Colors: 16.7M
MTBF (hrs): 50,000
Video input
1 x VGA
1 x DP
1 x DVI-D (share with HDMI)
1 x HDMI (share with DVI-D)
Touch screen
Resistive type touch screen monitor with USB port (std)
Option for Projected Capacitive type touch screen monitor with USB port
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
Panel mount or VESA (100mm) mount
Connectors
1 x VGA port
1 x DP port
1 x DVI-D port (share with HDMI)
1 x HDMI port (share with DVI-D)
1 x USB Type B for touchscreen
1 x 3-pin terminal block DC power input
1 x 2W speaker (option)
Power supply
Power Input: 9~36V DC power input with external AC power adapter
Power Consumption: Max. 19W
Weight
14.11 lb / 6.4 kg
Dimension

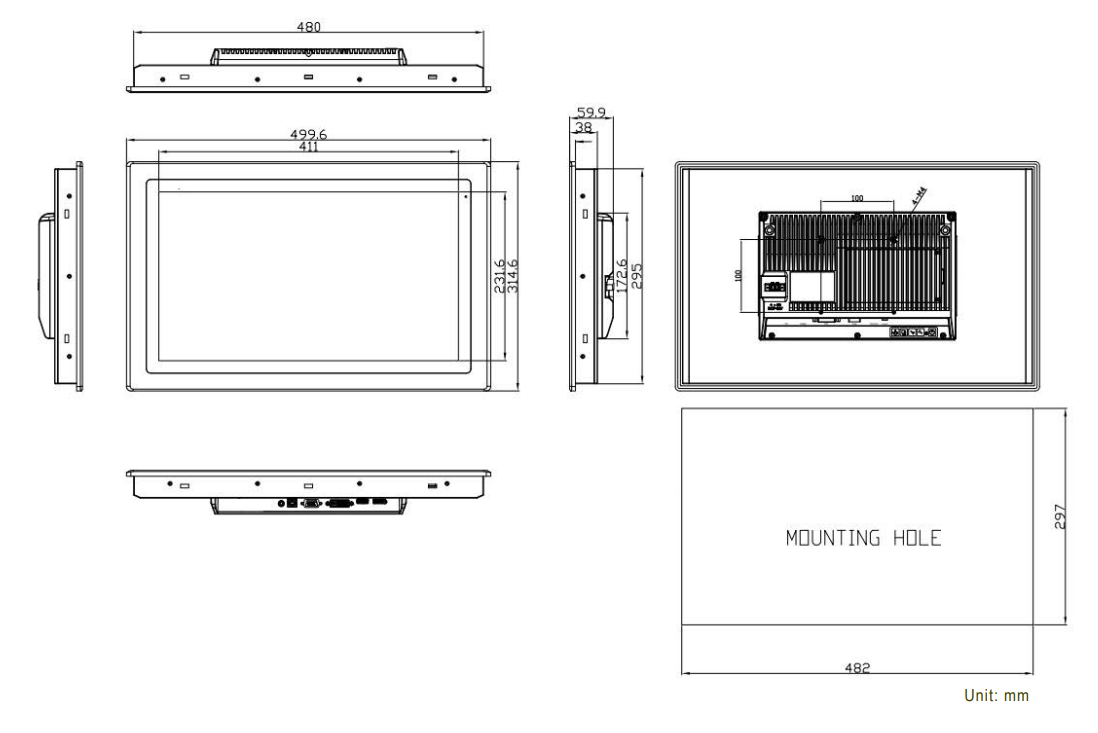

19.67"(W) x 12.39"(H) x 2.36"(D)
Environmental
Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 70°C
Relative Humidity: 10~90% @ 40°C, non-condensing
Certification
CE/FCC, Class A

APA9185:
18.5 inch 1366 x 768 resistive-type touch screen LCD monitor, VGA + DVI + HDMI + DP video input, aluminum die-casting chassis, IP66 rated flat front panel, 9 to 36V DC power input with external AC power adapter.

APA9185P:
18.5 inch 1366 x 768 projected capacitive-type touch screen LCD monitor, VGA + DVI + HDMI + DP video input, aluminum die-casting chassis, IP66 rated flat front panel, 9 to 36V DC power input with external AC power adapter.

Document
Description
Download Link
file iconAPA9185-SP(V1-2).pdf
Spec Sheet
file iconAPA9185-UM(V1-2).pdf
User Manual
