The RP4117 is a 17.3" 4K UHD rackmount LCD monitor drawer supporting 3840 x 2160 native resolution, Display Port 1.2 video input, and a 100/240VAC power input in a 1U high 18.9" (480mm) short-depth rack drawer. The monitor drawer features an LED touch on-screen display (OSD), providing users with a convenient way to the device settings. Option for Resistive or Projected Capacitive touch screen, HDMI or 3G-SDI input, and DC power input.
Loading...
1U 16.2

RP2117

RP4117

  • 1U 17.3" 4K UHD rackmount LCD monitor drawer
  • Supports 3840 x 2160 native resolution
  • Front OSD (on-screen display) function
  • Display Port 1.2 video input
  • Option for HDMI or 3G-SDI input
  • Option for Resistive or Projected Capacitive touch screen
  • 18.9" (480mm) short-depth drawer design
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$1,827.00
Availability: In stock
SKU
RP4117
Email
17.3" 3840 x 2160 4K UHD industrial LCD monitor with DP 1.2 video input, 100/240VAC power input, and a 1U high 18.9 inch depth rackmount monitor drawer.
Material
Heavy-duty steel
LCD Panel
Size: 17.3 inch
Max Resolution: 3840 x 2160@60Hz
Brightness (cd/m²): 400
Contrast Ratio (typ.): 1000:1
Colors: 16.7 M, 8-bit
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 16
Dot Pitch (mm): 0.0995
Display Area (mm): 382.12H x 214.94V
Surface Treatment: Anti-glare
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 15,000
Video input
Standard: Display Port 1.2 (attached 6ft DP cable)
Option: HDMI or 3G-SDI input
Touch screen (option)
Resistive 1-pt touch screen - USB
Projected Capacitive 10-pt touch screen - USB
Front panel control
Power on/off switch
OSD (on screen control)
On screen control
Auto-Adjustment for contrast, balance, H-position, V-position, phase, brightness
Mounting Distance
Display Drawer: 19.3 ~ 28.3 inch (490 ~ 720 mm)
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max 21W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Color
Black (RAL 9005)
Weight
24.2 lb / 11 kg

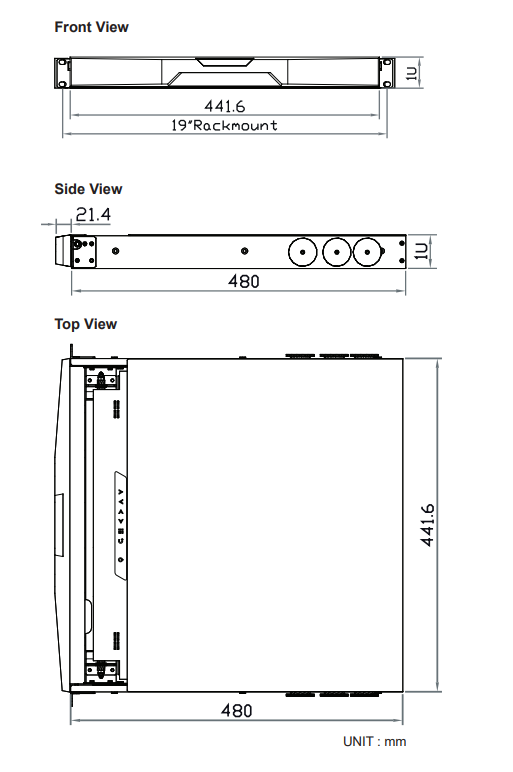

Dimension
Product: 17.4"(W) x 18.9"(D) x 1.73"(H)
Packing: 23.1"(W) x 29.8"(D) x 4.7"(H)
* All dimensions stated are subject to change if options are selected / integrated to base model part codes
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

RP4117:
17.3 inch 3480 x 2160 4K industrial LCD monitor, Display Port 1.2 video input, front OSD functions, 100/240VAC power input, 1U 18.9" depth rackmount drawer, Black color.

Document
Description
Download Link
file iconRP4117-SP.pdf
Spec Sheet (Coming Soon)
  • RP4117
    1U 17.3" 4K UHD rackmount LCD monitor drawer
    Supports 3840 x 2160 native resolution
    Front OSD (on-screen display) function
    Display Port 1.2 video input
    Option for HDMI or 3G-SDI input
    Option for Resistive or Projected Capacitive touch screen
    18.9" (480mm) short-depth drawer design
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
