PRODUCT EOL NOTICE. PLEASE VISIT 1U RACKMOUNT COMPUTERS FOR RELATED PRODUCTS.

Industrial computer comes with Pentium D1508 or Xeon D-1527 CPU and 4 x DDR4 DIMM (up to 128GB), 8 x GbE LANs, 2 x 10 GbE SFP, 2-pair LAN Bypass, 2 x 2.5-inch SATA hard drives, and 270W ATX power supply. 1U high steel rack chassis for network appliance application.
Loading...
Short Depth 1U Rackmount Computer with Intel Core i7-6700 Processor - RMC81107

RMC81107

RMC82580

RMC82580

RMC81720

  • 1U high rackmount computer
  • Pentium processor D1508, option for Xeon processor D-1527
  • Four DDR4 memory (up to 128GB)
  • 8 GbE LANs, 2 x 10 GbE SFP,  2-pair LAN Bypass
  • 2 x 2.5-inch storage bay
  • Option for 1 x PCI-E x8 expansion slot
  • 270W ATX power supply, option for 1U redundant power supply
Availability: In stock
SKU
RMC81720
Email

Rackmount computer comes with the Pentium D1508 CPU, 8 x Gigabit LANs plus 2 x 10 Gigabit SFP, 2 x front USB ports, 1 x PCI-E x 8 slots, and 270W ATX P/S in a 1U high 16.93-inch depth rack chassis.

Construction
1U high steel rackmount chassis
Main system
Processor: Pentium processor D1508
Option for Xeon processor D1527 (Broadwell-DE)
Chipset: SoC Integrated
Memory: 4 x DDR4-2400 R-DIMM/U-DIMM,
not allowed mixing, up to 128GB non-buffer non-ECC/ECC memory
Storage Device
2 x 2.5” SATA HDD
1 x mSATA
Network Interface
8 x 10/100/1000 Mbps Ethernet (Intel i210)
2 x 10 GbE SFP+
2 x LAN module (option), max up to 26 LAN
2 pairs LAN Bypass
I/O Interface
1 for RS232 (RJ Type)
2 x USB 3.0
8 x RJ-45 + 2 x SFP+
Expansion Slot
1 x PCIe x8 (option)
Watchdog Timer
255 stepping for system reset
8 stepping for LAN Bypass
LED Indicators
Power, HDD, GPIO programmable, LAN Bypass,
Link/Act with transfer rate
Power Supply
270W ATX power supply
280W 1U redundant power supply (Option)
OS Compatibility
Linux Kernel
Weight
21.61lb
Dimension

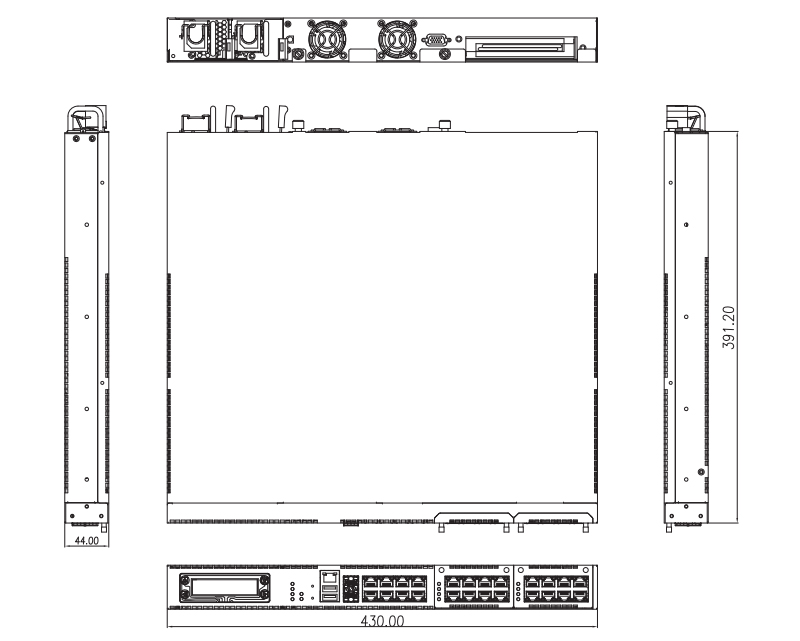

15.39"(W) x 1.73"(H) x 16.93"(D)
Environmental
Operating Temperature: 0°C to 45 °C
Humidity: 10~95%, non-condensing
Certificate
FCC Class A / CE Class A

RMC81720
Rackmount computer, Pentium D1508 embedded computer, SoC Integrated chipset, 10 LANs, DDR4 memory (max.128GB), 2 x 2.5-inch storage bay, 1U high rackmount chassis.

RMC81720X
Rackmount computer, Xeon D-1527 embedded computer, SoC Integrated chipset, 10 LANs, DDR4 memory (max.128GB), 2 x 2.5-inch storage bay, 1U high rackmount chassis.



Document
Description
Download Link
file iconRMC81720-SP.pdf
Spec Sheet
  • RMC81720
    1U rackmount server
    Pentium D1580 CPU / Xeon D1527 CPU
    4GB DDR4 memory (up to 128GB)
    8 x 1 GbE + 2 x 10GbE + 2 x LAN Bypass
    500GB hard drive
    270W ATX power supply
    16.93" depth rack chassis
