Rackmount monitor with a 23.8 inch 3840 x 2160 4K LCD monitor and DP 1.2 + HDMI 1.4 + HDMI 2.0 video input in a 9U rackmount enclosure. Option for Resistive or Projected Capacitive type touch screen, 3G/HD/SD-SDI input, and DC power input.
Loading...
15.6

PCM8015W

1U 17.3

KD82174

RM9230

  • 9U 23.8" 4K UHD rackmount LCD monitor
  • Supports 3840 x 2160 native resolution
  • Front OSD (on-screen display) function
  • DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
  • Option for 3G/HD/SD-SDI input
  • Option for Resistive or Projected Capacitive touch screen - USB
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$1,855.00
Availability: In stock
SKU
RM9230
Email
23.8" 3840 x 2160 4K rackmount LCD monitor with DP + HDMI 1.4 + HDMI 2.0 video input and 100/240VAC power input in a 9U high rackmount monitor enclosure.
Construction
Heavy-duty steel
LCD panel
Size: 23.8 inch
Max Resolution: 3840 x 2160 @ 60Hz
Brightness (cd/m²): 310
Contrast Ratio (typ.) : 1000:1
Colors: 1.07 Billion, 10-bit
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 25
Dot Pitch (mm): 0.13725
Display Area (mm): 527.04 x 296.46
Surface Treatment: Anti-glare
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 30,000
Video input
Standard: DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
Option: DP-1.2 + HDMI2.0 + HDMI-1.4 + 3G-SDI
Touch Screen (Option)
Resistive 1-pt touch screen with USB port
Projected Capacitive 10-pt touch screen with USB port
Front panel control
Power on/off switch
OSD membrane switch
Connector
1 x DP + 1 x HDMI 1.4 + 1 x HDMI 2.0
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption: Max. 43 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V DC power input
Mounting
9U high rackmount enclousre
VESA (100 x 100mm) mount ready
Weight
19.4 lb / 8.8 kg

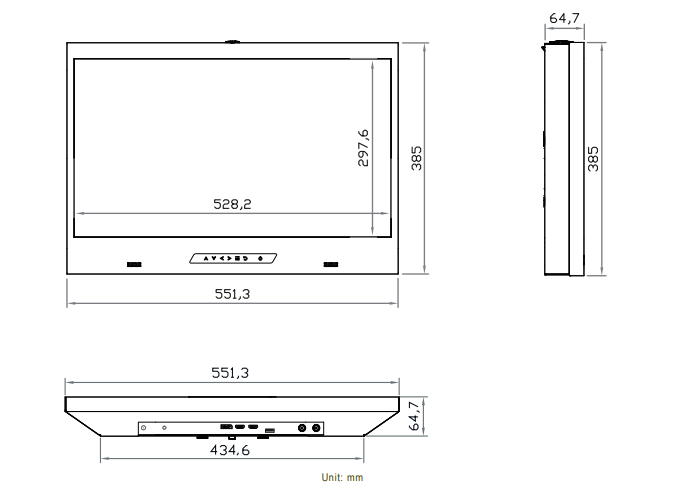

Dimension
Product: 21.7"(W) x 2.6"(D) x 15.2"(H)
Packing: 20.9"(W) x 25.4"(D) x 6.1"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11 ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

RM9230:
 23.8 inch 3840 x 2160 4K rackmount LCD monitor, DP + HDMI 1.4 + HDMI 2.0 video input, 100/240VAC power input, 9U high rackmount monitor enclosure. Option for Resistive or Projected Capacitive type touch screen, 3G/HD/SD-SDI input, and DC power input.

Document
Description
Download Link
file iconRM9230-SP(V1-2).pdf
Spec Sheet
file iconRM9230-UM(V1-2).pdf
User Manual
