The PMN80190 is a 19" waterproof stainless steel touchscreen monitor with VGA video input and IP66 rated I/O connectors. Designed for harsh environments, the monitor comes standard with SUS316 anti-corrosive stainless steel and a full IP66-rated housing. It is available with optional PCAP or Resistive touch, 1000-nits high brightness, optical bonding, and HDMI / DVI / BNC inputs.
Loading...
15.6

APA9156

19

PMH8192

PMN80190

  • Full IP66 rated anti-corrosion stainless steel housing
  • 19 inch 1280 x 768 350-nit industrial LCD monitor
  • Option for 1000-nit high brightness display & optical bonding
  • VGA video input, option for DVI / HDMI / BNC
  • P-cap multi-touch screen with USB
  • -15°C to 60°C wide range working temperature
  • Rear VESA (100 x 100mm) mounting holes
  • 12V DC input with external AC power adapter
$1,545.00
Availability: In stock
SKU
PMN80190
Email

19" waterproof stainless steel monitor with 1280 x 768 resolution, VGA video input, P-cap multi-touch screen,  and a full IP66 rated stainless steel housing.

Material
SUS316 stainless steel
Anti-corrosion passivated surface
LCD Panel
Size: 19" TFT LCD
Resolution: 1280 x 768
Brightness (cd/m²): 350-nits
Contrast Ratio (type): 1000:1
Viewing Angle (H/V): 170° x 160°
Colors: 16.7M (6-bits)
Option for 1000-nits high brightness display
Option for optical bonding
Video Input
VGA video input
Option for DVI / HDMI / BNC input
Touch Screen
P-CAP type multi-touch screen - USB
Option for 5-Wire Resistive type touch screen - USB
On-Screen Display
OSD Input: 5-key OSD IP66 membrane board
OSD Function: Contrast, Color, Position, Auto-adjustment, Factory Settings
Power Supply
Input: 1 x 12V DC Input (w/ external AC/DC adapter)
Power Consumption: 35W (typ.)
Power Management: VESA DPMS Compliance
Plug & Play
VESA DDC 1/2B
Connectors
1 x VGA (IP66 connector)
1 x DVI (Optional, IP66 connector)
1 x BNC (Optional, IP66 connector)
1 x HDMI (Optional, IP66 connector)
1 x USB for touch screen (IP66 connector)
Cable
1 x 1.5m power adapter with power cord
1 x 1.5m VGA cable
1 x 1.5m DVI cable (Optional)
1 x 1.5m BNC cable (Optional)
Weight
22 lb / 9.98 kg

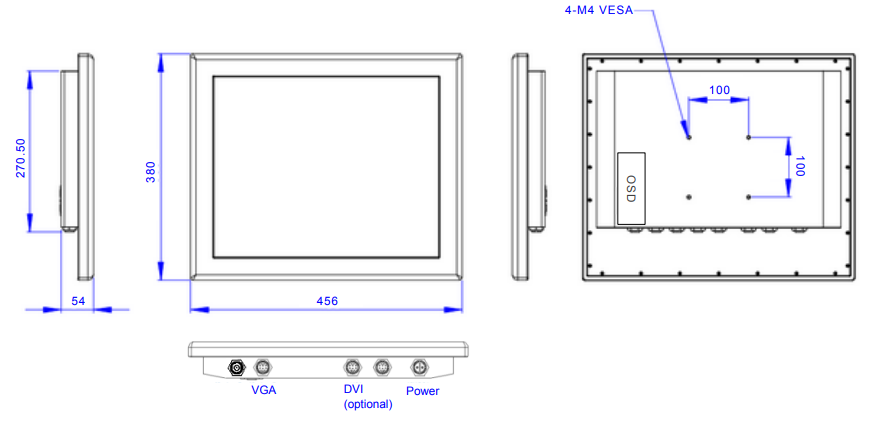

Dimension
17.95"(W) x 14.96"(H) x 2.13"(D)
Mounting
VESA (100 x 100mm) mount
Environmental
Operating Temperature: -15°C to 60°C
Operating Humidity: 10~95%, non-condensing
IP Rating: Full IP66

PMN80190:
19" 1280 x 768 TFT LCD, 350-nits brightness, VGA video input, PCAP type touch screen, 12VDC power input, full IP66 rated stainless steel enclosure. Option for 1000-nits high brightness or optical bonding, Resistive touch screen, and HDMI / DVI / BNC input.

Document
Description
Download Link
file iconPMN80190-SP.pdf
Spec Sheet
  • PMN80190
    Full IP66 rated anti-corrosion stainless steel housing
    19 inch 1280 x 768 350-nit industrial LCD monitor
    Option for 1000-nit high brightness display & optical bonding
    VGA video input, option for DVI / HDMI / BNC
    P-cap multi-touch screen with USB
    -15°C to 60°C wide range working temperature
    Rear VESA (100 x 100mm) mounting holes
    12V DC input with external AC power adapter
